Toyota GR 86

2021-11 → present · chassis ZN8 · catalogue 264430 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

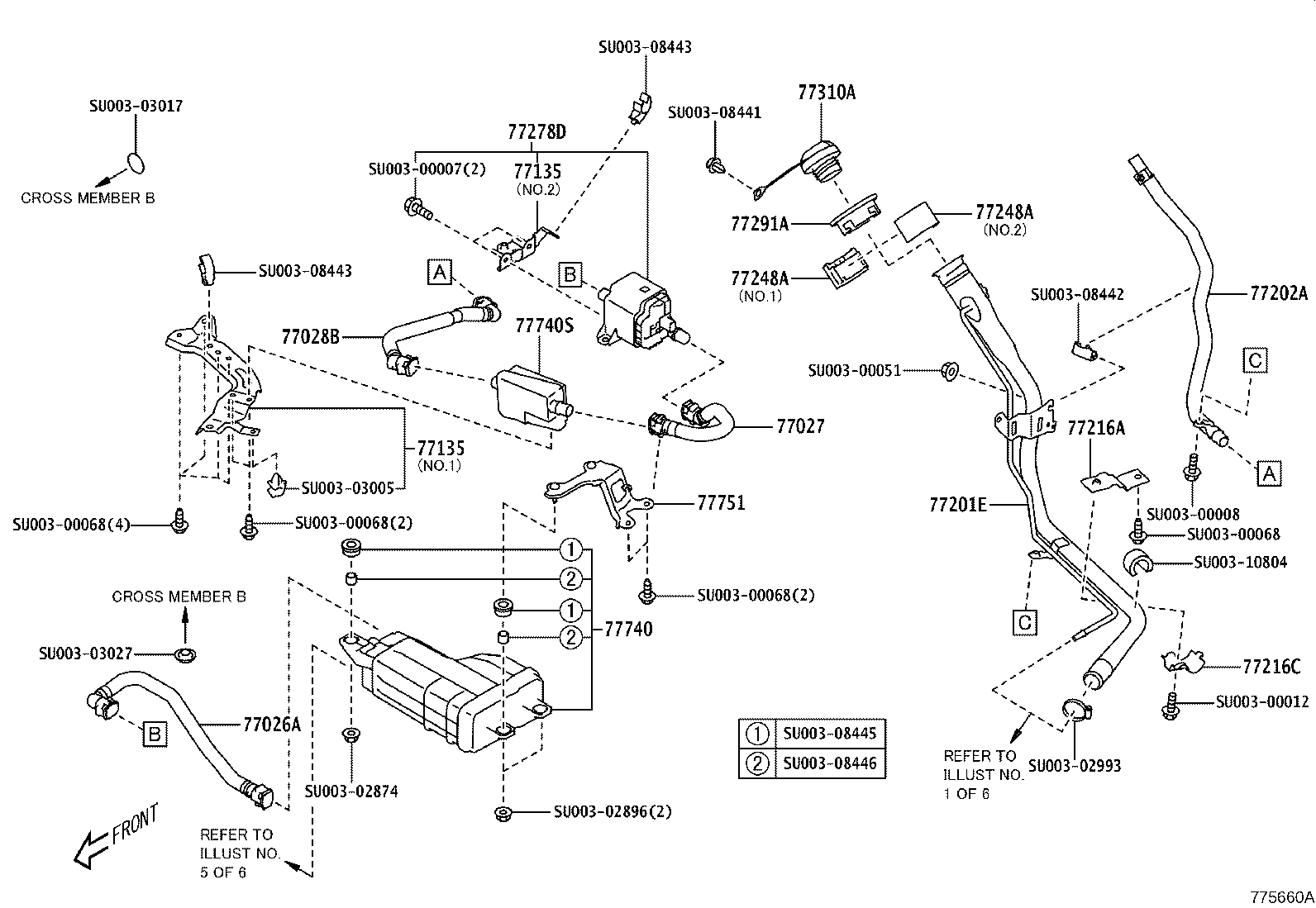

Exploded illustration 775660A 77310A — CAP ASSY, FUEL TANK (5 parts) 77201E — PIPE SUB-ASSY, FUEL TANK FILLER (4 parts) 77740 — CANISTER ASSY, CHARCOAL (4 parts) 77135 — BRACKET, CHECK VALVE (8 parts) 77026A — TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 (4 parts) 77751 — BRACKET, CHARCOAL CANISTER BASE (4 parts) 77027 — TUBE SUB-ASSY, FUEL EVAPORATION, NO.2 (4 parts) 77740S — VALVE, CHECK (4 parts) 77028B — TUBE SUB-ASSY, FUEL EVAPORATION, NO.3 (4 parts) 77202A — HOSE, FUEL, NO.1 (FOR BREATHER TUBE) (4 parts) 77216A — SUPPORT, FUEL TANK FILLER PIPE, NO.1 (4 parts) 77216C — SUPPORT, FUEL TANK FILLER PIPE NO.3 (4 parts) 77248A — HOLDER, FUEL TANK FILLER PIPE COVER (8 parts) 77248A — HOLDER, FUEL TANK FILLER PIPE COVER (8 parts) 77291A — SHIELD, FUEL TANK FILLER PIPE (4 parts) 77135 — BRACKET, CHECK VALVE (8 parts) 77278D — VALVE, CHECK W/BRACKET (4 parts) SU00300051 — not listed in this catalogue SU00300068 — not listed in this catalogue SU00308445 — not listed in this catalogue SU00308446 — not listed in this catalogue SU00302896 — not listed in this catalogue SU00300007 — not listed in this catalogue SU00300068 — not listed in this catalogue SU00303027 — not listed in this catalogue SU00302874 — not listed in this catalogue SU00300068 — not listed in this catalogue SU00303005 — not listed in this catalogue SU00303017 — not listed in this catalogue SU00308443 — not listed in this catalogue SU00308443 — not listed in this catalogue SU00308441 — not listed in this catalogue SU00300068 — not listed in this catalogue SU00308442 — not listed in this catalogue SU00310804 — not listed in this catalogue SU00300008 — not listed in this catalogue SU00300012 — not listed in this catalogue SU00302993 — not listed in this catalogue
775660A · 17 callouts, 21 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
69 parts on this figure
Part number Description Fitment Price
77026A — Tube Sub-assy, Fuel Evaporation, NO.1
SU003-10568 Tube Sub-assy, Fuel Evaporation, NO.1
2022-06 → 2023-12 ended
ZN8 B —
SU003-10568 Tube Sub-assy, Fuel Evaporation, NO.1
2021-10 → 2022-06 ended
ZN8 —
SU003-10568 Tube Sub-assy, Fuel Evaporation, NO.1
2024-09 → —
ZN8 D —
SU003-10568 Tube Sub-assy, Fuel Evaporation, NO.1
2023-12 → —
ZN8 C —
77027 — Tube Sub-assy, Fuel Evaporation, NO.2
SU003-10569 Tube Sub-assy, Fuel Evaporation, NO.2
2021-10 → 2022-06 ended
ZN8 —
SU003-10569 Tube Sub-assy, Fuel Evaporation, NO.2
2022-06 → 2023-12 ended
ZN8 B —
SU003-10569 Tube Sub-assy, Fuel Evaporation, NO.2
2023-12 → —
ZN8 C —
SU003-10569 Tube Sub-assy, Fuel Evaporation, NO.2
2024-09 → —
ZN8 D —
77028B — Tube Sub-assy, Fuel Evaporation, NO.3
SU003-10570 Tube Sub-assy, Fuel Evaporation, NO.3
2021-10 → 2022-06 ended
ZN8 —
SU003-10570 Tube Sub-assy, Fuel Evaporation, NO.3
2022-06 → 2023-12 ended
ZN8 B —
SU003-10570 Tube Sub-assy, Fuel Evaporation, NO.3
2023-12 → —
ZN8 C —
SU003-10570 Tube Sub-assy, Fuel Evaporation, NO.3
2024-09 → —
ZN8 D —
77135 — Bracket, Check Valve
SU003-10561 note Bracket, Check Valve
2024-09 → —
ZN8 D —
SU003-10561 note Bracket, Check Valve
2023-12 → —
ZN8 C —
SU003-10561 note Bracket, Check Valve
2021-10 → 2022-06 ended
ZN8 —
SU003-10561 note Bracket, Check Valve
2022-06 → 2023-12 ended
ZN8 B —
SU003-10565 note Bracket, Check Valve
2022-06 → 2023-12 ended
ZN8 B —
SU003-10565 note Bracket, Check Valve
2021-10 → 2022-06 ended
ZN8 —
SU003-10565 note Bracket, Check Valve
2023-12 → —
ZN8 C —
SU003-10565 note Bracket, Check Valve
2024-09 → —
ZN8 D —
77201E — Pipe Sub-assy, Fuel Tank Filler
SU003-10566 Pipe Sub-assy, Fuel Tank Filler
2021-10 → 2022-06 ended
ZN8 —
SU003-10566 Pipe Sub-assy, Fuel Tank Filler
2022-06 → 2023-12 ended
ZN8 B —
SU003-10566 Pipe Sub-assy, Fuel Tank Filler
2023-12 → —
ZN8 C —
SU003-10566 Pipe Sub-assy, Fuel Tank Filler
2024-09 → —
ZN8 D —
77202A — Hose, Fuel, NO.1 (FOR BREATHER TUBE)
SU003-10571 Hose, Fuel, NO.1 (FOR BREATHER TUBE)
2021-10 → 2022-06 ended
ZN8 —
SU003-10571 Hose, Fuel, NO.1 (FOR BREATHER TUBE)
2024-09 → —
ZN8 D —
SU003-10571 Hose, Fuel, NO.1 (FOR BREATHER TUBE)
2023-12 → —
ZN8 C —
SU003-10571 Hose, Fuel, NO.1 (FOR BREATHER TUBE)
2022-06 → 2023-12 ended
ZN8 B —
77216A — Support, Fuel Tank Filler Pipe, NO.1
SU003-10563 Support, Fuel Tank Filler Pipe, NO.1
2021-10 → 2022-06 ended
ZN8 —
SU003-10563 Support, Fuel Tank Filler Pipe, NO.1
2022-06 → 2023-12 ended
ZN8 B —
SU003-10563 Support, Fuel Tank Filler Pipe, NO.1
2023-12 → —
ZN8 C —
SU003-10563 Support, Fuel Tank Filler Pipe, NO.1
2024-09 → —
ZN8 D —
77216C — Support, Fuel Tank Filler Pipe NO.3
SU003-10564 Support, Fuel Tank Filler Pipe NO.3
2024-09 → —
ZN8 D —
SU003-10564 Support, Fuel Tank Filler Pipe NO.3
2023-12 → —
ZN8 C —
SU003-10564 Support, Fuel Tank Filler Pipe NO.3
2021-10 → 2022-06 ended
ZN8 —
SU003-10564 Support, Fuel Tank Filler Pipe NO.3
2022-06 → 2023-12 ended
ZN8 B —
77248A — Holder, Fuel Tank Filler Pipe Cover
SU003-06091 note Holder, Fuel Tank Filler Pipe Cover
2021-10 → 2022-06 ended
ZN8 —
SU003-06091 note Holder, Fuel Tank Filler Pipe Cover
2022-06 → 2023-12 ended
ZN8 B —
SU003-06091 note Holder, Fuel Tank Filler Pipe Cover
2023-12 → —
ZN8 C —
SU003-06091 note Holder, Fuel Tank Filler Pipe Cover
2024-09 → —
ZN8 D —
SU003-06092 note Holder, Fuel Tank Filler Pipe Cover
2021-10 → 2022-06 ended
ZN8 —
SU003-06092 note Holder, Fuel Tank Filler Pipe Cover
2022-06 → 2023-12 ended
ZN8 B —
SU003-06092 note Holder, Fuel Tank Filler Pipe Cover
2023-12 → —
ZN8 C —
SU003-06092 note Holder, Fuel Tank Filler Pipe Cover
2024-09 → —
ZN8 D —
77278D — Valve, Check W/Bracket
SU003-09619 Valve, Check W/Bracket
2021-10 → 2022-06 ended
ZN8 —
SU003-11010 Valve, Check W/Bracket
2022-06 → 2023-12 ended
ZN8 B —
SU003-11010 Valve, Check W/Bracket
2023-12 → —
ZN8 C —
SU003-11010 Valve, Check W/Bracket
2024-09 → —
ZN8 D —
77291A — Shield, Fuel Tank Filler Pipe
SU003-01053 Shield, Fuel Tank Filler Pipe
2024-09 → —
ZN8 D —
SU003-01053 Shield, Fuel Tank Filler Pipe
2023-12 → —
ZN8 C —
SU003-01053 Shield, Fuel Tank Filler Pipe
2021-10 → 2022-06 ended
ZN8 —
SU003-01053 Shield, Fuel Tank Filler Pipe
2022-06 → 2023-12 ended
ZN8 B —
77310A — Cap Assy, Fuel Tank
SU003-01022 Cap Assy, Fuel Tank
2021-10 → 2022-06 ended
ZN8 —
SU003-01022 Cap Assy, Fuel Tank
2022-06 → 2022-11 ended
ZN8 B —
SU003-11164 Cap Assy, Fuel Tank
2022-11 → 2023-12 ended
ZN8 B —
SU003-11164 Cap Assy, Fuel Tank
2023-12 → —
ZN8 C —
SU003-11164 Cap Assy, Fuel Tank
2024-09 → —
ZN8 D —
77740 — Canister Assy, Charcoal
SU003-12142 Canister Assy, Charcoal
2023-12 → —
ZN8 C —
SU003-12142 Canister Assy, Charcoal
2024-09 → —
ZN8 D —
SU003-12142 Canister Assy, Charcoal
2022-06 → 2023-12 ended
ZN8 B —
SU003-12142 Canister Assy, Charcoal
2021-10 → 2022-06 ended
ZN8 —
77740S — Valve, Check
SU003-10567 Valve, Check
2021-10 → 2022-06 ended
ZN8 —
SU003-10567 Valve, Check
2022-06 → 2023-12 ended
ZN8 B —
SU003-10567 Valve, Check
2023-12 → —
ZN8 C —
SU003-10567 Valve, Check
2024-09 → —
ZN8 D —
77751 — Bracket, Charcoal Canister Base
SU003-10562 Bracket, Charcoal Canister Base
2021-10 → 2022-06 ended
ZN8 —
SU003-10562 Bracket, Charcoal Canister Base
2022-06 → 2023-12 ended
ZN8 B —
SU003-10562 Bracket, Charcoal Canister Base
2023-12 → —
ZN8 C —
SU003-10562 Bracket, Charcoal Canister Base
2024-09 → —
ZN8 D —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
