Toyota GR 86
2021-11 → present · chassis ZN8 · catalogue 264430 · United States
Supported model
Data version 2024-10

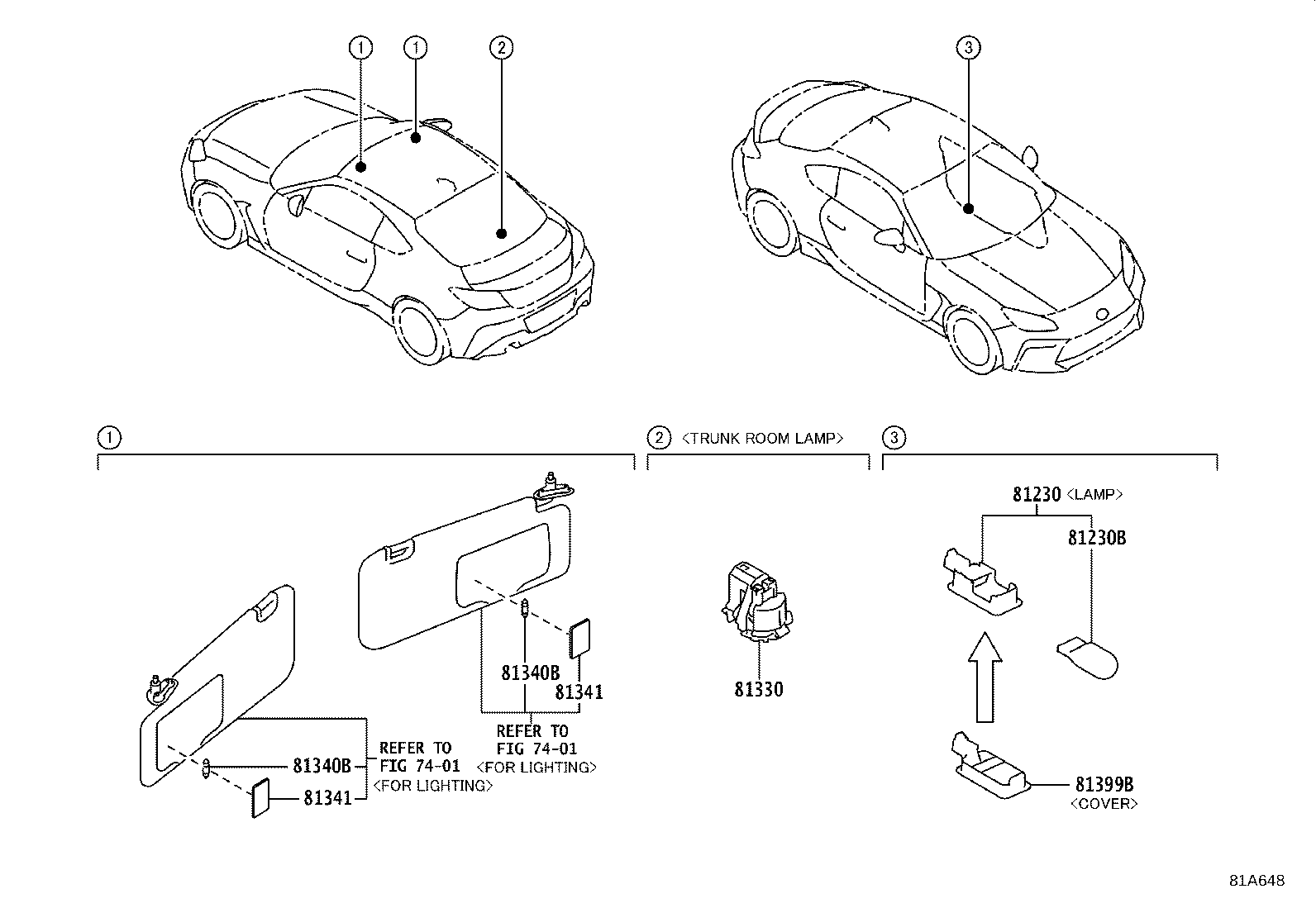

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81230 — Lamp Assy, Courtesy | ||||
| SU003-08575 |
Lamp Assy, Courtesy
2022-06 → 2023-12
ended
|
ZN8 (HIGH,HIGH2,ORA) B | — | |
| SU003-08575 |
Lamp Assy, Courtesy
2023-12 → —
|
ZN8 (HIGH,ORB) C | — | |
| SU003-08575 |
Lamp Assy, Courtesy
2024-09 → —
|
ZN8 (GRA,HIGH) D | — | |
| SU003-08575 |
Lamp Assy, Courtesy
2021-10 → 2022-06
ended
|
ZN8 HIGH,HIGH2 | — | |
| 81230B — Bulb(FOR COURTESY LAMP) | ||||
| SU003-02129 note |
Bulb(FOR COURTESY LAMP)
2021-10 → 2022-06
ended
|
ZN8 HIGH,HIGH2 | — | |
| SU003-02129 note |
Bulb(FOR COURTESY LAMP)
2022-06 → 2023-12
ended
|
ZN8 (HIGH,HIGH2,ORA) B | — | |
| SU003-02129 note |
Bulb(FOR COURTESY LAMP)
2023-12 → —
|
ZN8 (HIGH,ORB) C | — | |
| SU003-02129 note |
Bulb(FOR COURTESY LAMP)
2024-09 → —
|
ZN8 (GRA,HIGH) D | — | |
| 81330 — Lamp Assy, Luggage Compartment, NO.1 | ||||
| SU003-08501 |
Lamp Assy, Luggage Compartment, NO.1
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-08501 |
Lamp Assy, Luggage Compartment, NO.1
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-08501 |
Lamp Assy, Luggage Compartment, NO.1
2023-12 → —
|
ZN8 C | — | |
| SU003-11871 |
Lamp Assy, Luggage Compartment, NO.1
2024-09 → —
|
ZN8 D | — | |
| 81340B — Bulb (FOR VANITY LAMP) | ||||
| SU003-05707 note |
Bulb (FOR VANITY LAMP)
2021-10 → 2022-06
ended
|
ZN8 HIGH,HIGH2 | — | |
| SU003-05707 note |
Bulb (FOR VANITY LAMP)
2024-09 → —
|
ZN8 (GRA,HIGH) D | — | |
| SU003-05707 note |
Bulb (FOR VANITY LAMP)
2023-12 → —
|
ZN8 (HIGH,ORB) C | — | |
| SU003-05707 note |
Bulb (FOR VANITY LAMP)
2022-06 → 2023-12
ended
|
ZN8 (HIGH,HIGH2,ORA) B | — | |
| 81341 — Lens, Vanity Lamp | ||||
| SU003-03185 |
Lens, Vanity Lamp
2021-10 → 2022-06
ended
|
ZN8 HIGH,HIGH2 | — | |
| SU003-03185 |
Lens, Vanity Lamp
2022-06 → 2023-12
ended
|
ZN8 (HIGH,HIGH2,ORA) B | — | |
| SU003-03185 |
Lens, Vanity Lamp
2023-12 → —
|
ZN8 (HIGH,ORB) C | — | |
| SU003-03185 |
Lens, Vanity Lamp
2024-09 → —
|
ZN8 (GRA,HIGH) D | — | |
| 81399B — Cover, Lens | ||||
| SU003-08576 |
Cover, Lens
2021-10 → 2022-06
ended
|
ZN8 BASE,BASE2 | — | |
| SU003-08576 |
Cover, Lens
2022-06 → 2023-12
ended
|
ZN8 (BASE,BASE2) B | — | |
| SU003-08576 |
Cover, Lens
2023-12 → —
|
ZN8 BASE C | — | |
| SU003-08576 |
Cover, Lens
2024-09 → —
|
ZN8 BASE D | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
