Toyota GR 86

2021-11 → present · chassis ZN8 · catalogue 264430 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

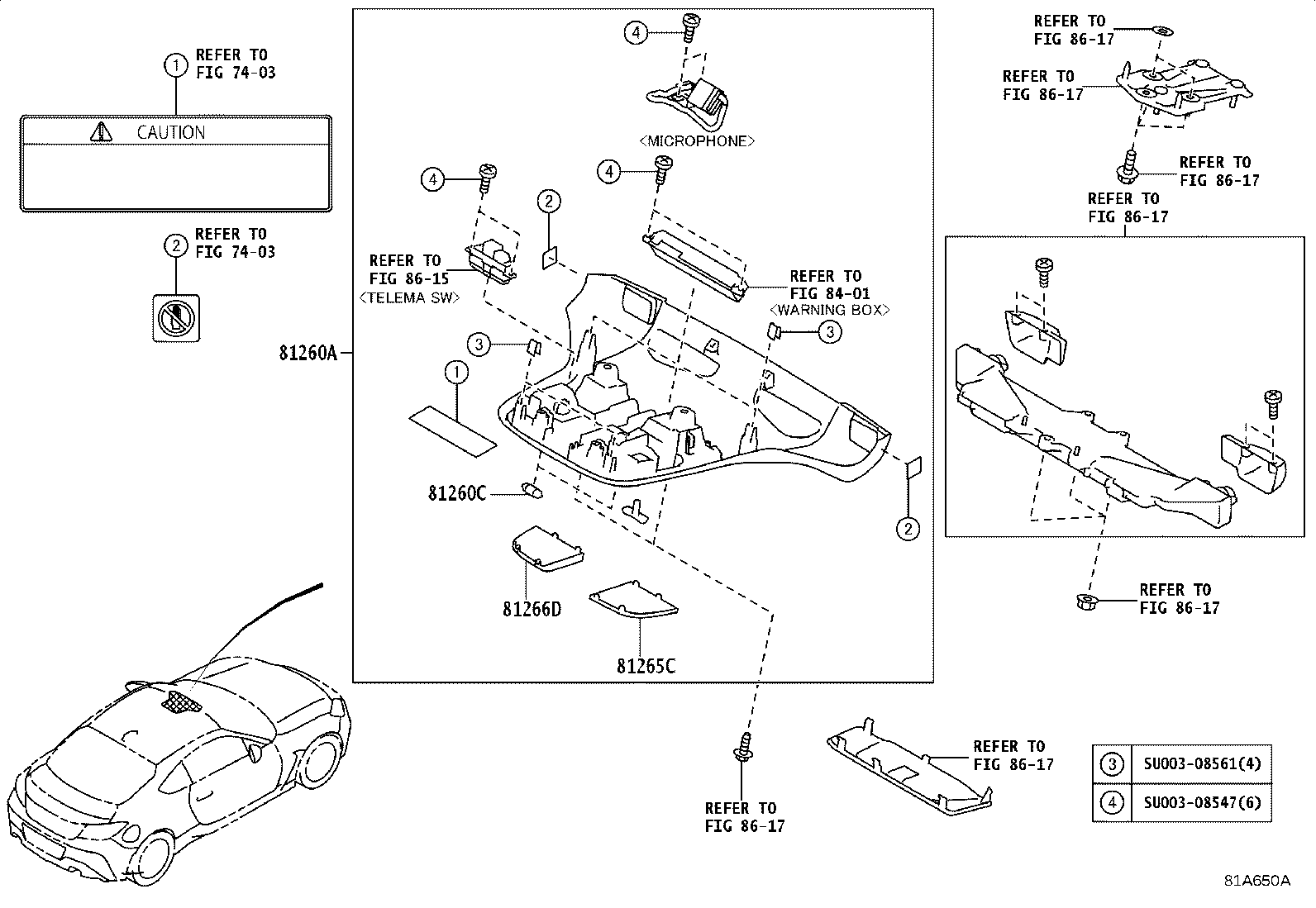

Exploded illustration 81A650A 81260A — LAMP ASSY, MAP (32 parts) 81260C — BULB(FOR MAP LAMP) (4 parts) 81266D — LENS, MAP LAMP, NO.2 (4 parts) 81265C — LENS, MAP LAMP, NO.1 (6 parts) 8401 — not listed in this catalogue 8617 — not listed in this catalogue 8617 — not listed in this catalogue 8617 — not listed in this catalogue 8617 — not listed in this catalogue 8617 — not listed in this catalogue 8617 — not listed in this catalogue 8617 — not listed in this catalogue 7403 — not listed in this catalogue 7403 — not listed in this catalogue SU00308561 — not listed in this catalogue SU00308547 — not listed in this catalogue 8615 — not listed in this catalogue
81A650A · 4 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
46 parts on this figure
Part number Description Fitment Price
81260A — Lamp Assy, Map
SU003-09626 note Lamp Assy, Map
2021-10 → 2022-06 ended
ZN8 6F —
SU003-09626 note Lamp Assy, Map
2022-06 → 2022-09 ended
ZN8 6F B —
SU003-09627 note Lamp Assy, Map
2021-10 → 2022-06 ended
ZN8 6F —
SU003-09627 note Lamp Assy, Map
2022-06 → 2022-09 ended
ZN8 6F B —
SU003-09627 note Lamp Assy, Map
2022-06 → 2022-09 ended
ZN8 6F B —
SU003-09627 note Lamp Assy, Map
2021-10 → 2022-06 ended
ZN8 6F —
SU003-09628 note Lamp Assy, Map
2021-10 → 2022-06 ended
ZN8 6F —
SU003-09628 note Lamp Assy, Map
2021-10 → 2022-06 ended
ZN8 6FC (BASE,HIGH) —
SU003-09628 note Lamp Assy, Map
2022-06 → 2022-09 ended
ZN8 6FC (BASE,HIGH) B —
SU003-09628 note Lamp Assy, Map
2022-06 → 2022-09 ended
ZN8 6F B —
SU003-09676 note Lamp Assy, Map
2021-10 → 2022-06 ended
ZN8 BASE2,HIGH2 —
SU003-09676 note Lamp Assy, Map
2022-06 → 2022-09 ended
ZN8 (BASE2,HIGH2) B —
SU003-09676 note Lamp Assy, Map
2022-06 → 2022-09 ended
ZN8 (BASE2,HIGH2) B —
SU003-09676 note Lamp Assy, Map
2021-10 → 2022-06 ended
ZN8 BASE2,HIGH2 —
SU003-09677 note Lamp Assy, Map
2021-10 → 2022-06 ended
ZN8 BASE2,HIGH2 —
SU003-09677 note Lamp Assy, Map
2022-06 → 2022-09 ended
ZN8 (BASE2,HIGH2) B —
SU003-11292 note Lamp Assy, Map
2022-10 → 2023-12 ended
ZN8 6F B —
SU003-11293 note Lamp Assy, Map
2022-10 → 2023-12 ended
ZN8 6F B —
SU003-11293 note Lamp Assy, Map
2022-10 → 2023-12 ended
ZN8 6F B —
SU003-11294 note Lamp Assy, Map
2022-10 → 2023-12 ended
ZN8 6FC (BASE,HIGH) B —
SU003-11294 note Lamp Assy, Map
2022-10 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-11299 note Lamp Assy, Map
2022-10 → 2023-12 ended
ZN8 6FC (BASE2,HIGH2,ORA) B —
SU003-11299 note Lamp Assy, Map
2022-10 → 2023-12 ended
ZN8 6FC (BASE2,HIGH2,ORA) B —
SU003-11300 note Lamp Assy, Map
2022-10 → 2023-12 ended
ZN8 6FC (BASE2,HIGH2,ORA) B —
SU003-11702 note Lamp Assy, Map
2023-12 → —
ZN8 6F (BASE,HIGH) C —
SU003-11713 note Lamp Assy, Map
2023-12 → —
ZN8 C —
SU003-11713 note Lamp Assy, Map
2023-12 → —
ZN8 C —
SU003-11714 note Lamp Assy, Map
2023-12 → —
ZN8 C —
SU003-12072 note Lamp Assy, Map
2024-09 → —
ZN8 D —
SU003-12072 note Lamp Assy, Map
2024-09 → —
ZN8 D —
SU003-12073 note Lamp Assy, Map
2024-09 → —
ZN8 D —
SU003-12074 note Lamp Assy, Map
2024-09 → —
ZN8 6F (BASE,HIGH) D —
81260C — Bulb(FOR MAP LAMP)
SU003-08504 note Bulb(FOR MAP LAMP)
2024-09 → —
ZN8 D —
SU003-08504 note Bulb(FOR MAP LAMP)
2023-12 → —
ZN8 C —
SU003-08504 note Bulb(FOR MAP LAMP)
2022-06 → 2023-12 ended
ZN8 B —
SU003-08504 note Bulb(FOR MAP LAMP)
2021-10 → 2022-06 ended
ZN8 —
81265C — Lens, Map Lamp, NO.1
SU003-08503 Lens, Map Lamp, NO.1
2021-10 → 2022-06 ended
ZN8 BASE2,HIGH2 —
SU003-08503 Lens, Map Lamp, NO.1
2021-10 → 2022-06 ended
ZN8 BASE,HIGH —
SU003-08503 Lens, Map Lamp, NO.1
2022-06 → 2023-12 ended
ZN8 6FC (BASE2,HIGH2,ORA) B —
SU003-08503 Lens, Map Lamp, NO.1
2022-06 → 2023-12 ended
ZN8 6F ORA;ZN8 (BASE,HIGH) +1 —
SU003-08503 Lens, Map Lamp, NO.1
2023-12 → —
ZN8 C —
SU003-08503 Lens, Map Lamp, NO.1
2024-09 → —
ZN8 D —
81266D — Lens, Map Lamp, NO.2
SU003-08502 Lens, Map Lamp, NO.2
2021-10 → 2022-06 ended
ZN8 —
SU003-08502 Lens, Map Lamp, NO.2
2022-06 → 2023-12 ended
ZN8 B —
SU003-08502 Lens, Map Lamp, NO.2
2023-12 → —
ZN8 C —
SU003-08502 Lens, Map Lamp, NO.2
2024-09 → —
ZN8 D —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
