Toyota GR 86

2021-11 → present · chassis ZN8 · catalogue 264430 · United States

Supported model Data version 2024-10

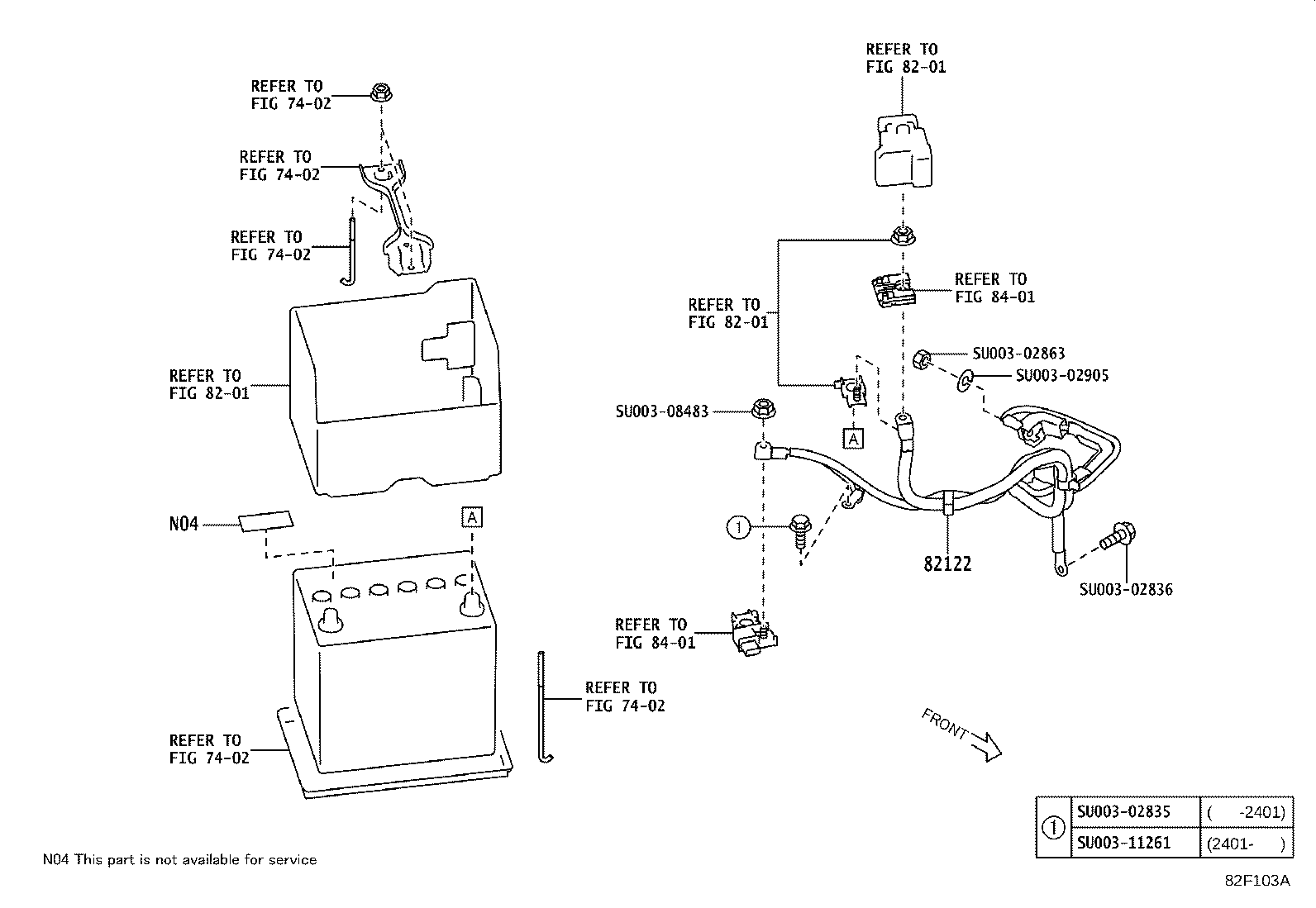

Exploded illustration 82F103A SU00308483 — not listed in this catalogue SU00302863 — not listed in this catalogue SU00302905 — not listed in this catalogue SU00302836 — not listed in this catalogue 7402 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8201 — not listed in this catalogue 7402 — not listed in this catalogue 7402 — not listed in this catalogue 7402 — not listed in this catalogue 7402 — not listed in this catalogue 8201 — not listed in this catalogue 8201 — not listed in this catalogue 82122 — WIRE, ENGINE, NO.2 (8 parts) SU00302835 — not listed in this catalogue SU00311261 — not listed in this catalogue
82F103A · 1 callouts, 16 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
8 parts on this figure
Part number Description Fitment Price
82122 — Wire, Engine, NO.2
SU003-09985 Wire, Engine, NO.2
2021-10 → 2022-06 ended
ZN8 6F —
SU003-09985 Wire, Engine, NO.2
2022-06 → 2023-12 ended
ZN8 6F B —
SU003-09985 Wire, Engine, NO.2
2023-12 → —
ZN8 6F C —
SU003-09985 Wire, Engine, NO.2
2024-09 → —
ZN8 6F D —
SU003-09986 Wire, Engine, NO.2
2021-10 → 2022-06 ended
ZN8 6FC —
SU003-09986 Wire, Engine, NO.2
2022-06 → 2023-12 ended
ZN8 6FC B —
SU003-09986 Wire, Engine, NO.2
2023-12 → —
ZN8 6FC C —
SU003-09986 Wire, Engine, NO.2
2024-09 → —
ZN8 6FC D —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
