Toyota GR 86

2021-11 → present · chassis ZN8 · catalogue 264430 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

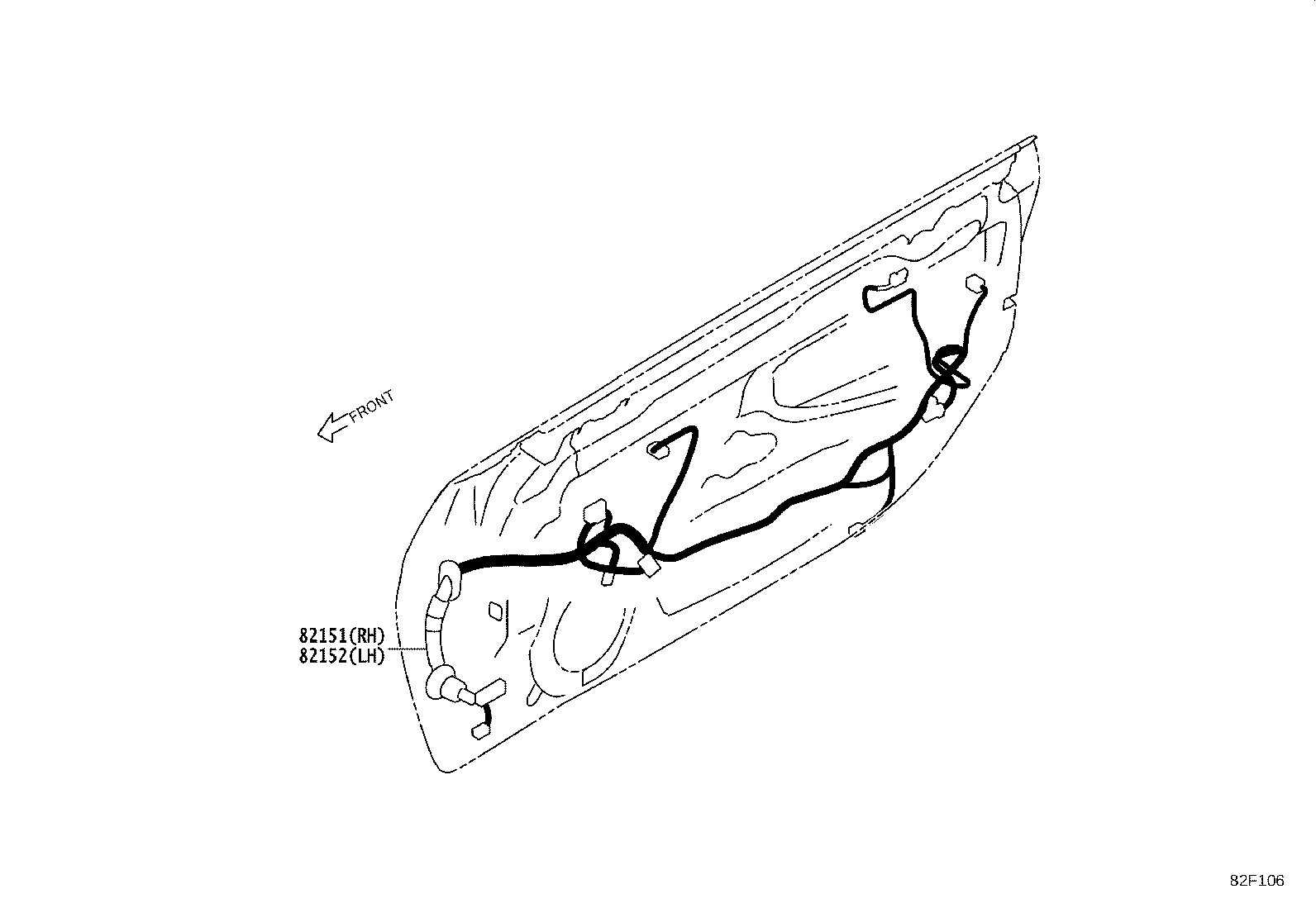

Exploded illustration 82F106 82151 — WIRE, FRONT DOOR, RH (22 parts) 82152 — WIRE, FRONT DOOR, LH (22 parts)
82F106 · 2 callouts Full size ↗
44 parts on this figure
Part number Description Fitment Price
82151 — Wire, Front Door, RH
SU003-09996 note Wire, Front Door, RH
2021-10 → 2022-06 ended
ZN8 6F —
SU003-09996 Wire, Front Door, RH
2021-10 → 2022-06 ended
ZN8 BASE2,HIGH2 —
SU003-09996 note Wire, Front Door, RH
2024-09 → —
ZN8 6F (BASE,HIGH) D —
SU003-09996 note Wire, Front Door, RH
2024-09 → —
ZN8 6F (BASE,HIGH) D —
SU003-09996 note Wire, Front Door, RH
2024-09 → —
ZN8 6F (BASE,HIGH) D —
SU003-09996 Wire, Front Door, RH
2024-09 → —
ZN8 GRA;ZN8 6FC (BASE,HIGH) +1 —
SU003-09996 note Wire, Front Door, RH
2023-12 → —
ZN8 6F (BASE,HIGH) C —
SU003-09996 note Wire, Front Door, RH
2023-12 → —
ZN8 6F (BASE,HIGH) C —
SU003-09996 note Wire, Front Door, RH
2023-12 → —
ZN8 6F (BASE,HIGH) C —
SU003-09996 Wire, Front Door, RH
2023-12 → —
ZN8 6FC C;ZN8 6F +1 —
SU003-09996 note Wire, Front Door, RH
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-09996 note Wire, Front Door, RH
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-09996 note Wire, Front Door, RH
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-09996 Wire, Front Door, RH
2022-06 → 2023-12 ended
ZN8 (BASE2,HIGH2,ORA) B —
SU003-09996 note Wire, Front Door, RH
2021-10 → 2022-06 ended
ZN8 6F —
SU003-09996 note Wire, Front Door, RH
2021-10 → 2022-06 ended
ZN8 6F —
SU003-09997 note Wire, Front Door, RH
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-09997 note Wire, Front Door, RH
2024-09 → —
ZN8 6F (BASE,HIGH) D —
SU003-09997 Wire, Front Door, RH
2021-10 → 2022-06 ended
ZN8 6FC (BASE,HIGH) —
SU003-09997 note Wire, Front Door, RH
2021-10 → 2022-06 ended
ZN8 6F —
SU003-09997 note Wire, Front Door, RH
2023-12 → —
ZN8 6F (BASE,HIGH) C —
SU003-09997 Wire, Front Door, RH
2022-06 → 2023-12 ended
ZN8 6FC (BASE,HIGH) B —
82152 — Wire, Front Door, LH
SU003-09998 Wire, Front Door, LH
2021-10 → 2022-06 ended
ZN8 BASE2,HIGH2 —
SU003-09998 note Wire, Front Door, LH
2024-09 → —
ZN8 6F (BASE,HIGH) D —
SU003-09998 note Wire, Front Door, LH
2024-09 → —
ZN8 6F (BASE,HIGH) D —
SU003-09998 note Wire, Front Door, LH
2024-09 → —
ZN8 6F (BASE,HIGH) D —
SU003-09998 Wire, Front Door, LH
2024-09 → —
ZN8 GRA;ZN8 6FC (BASE,HIGH) +1 —
SU003-09998 note Wire, Front Door, LH
2023-12 → —
ZN8 6F (BASE,HIGH) C —
SU003-09998 note Wire, Front Door, LH
2023-12 → —
ZN8 6F (BASE,HIGH) C —
SU003-09998 note Wire, Front Door, LH
2023-12 → —
ZN8 6F (BASE,HIGH) C —
SU003-09998 Wire, Front Door, LH
2023-12 → —
ZN8 6FC C;ZN8 6F +1 —
SU003-09998 note Wire, Front Door, LH
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-09998 note Wire, Front Door, LH
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-09998 note Wire, Front Door, LH
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-09998 Wire, Front Door, LH
2022-06 → 2023-12 ended
ZN8 (BASE2,HIGH2,ORA) B —
SU003-09998 note Wire, Front Door, LH
2021-10 → 2022-06 ended
ZN8 6F —
SU003-09998 note Wire, Front Door, LH
2021-10 → 2022-06 ended
ZN8 6F —
SU003-09998 note Wire, Front Door, LH
2021-10 → 2022-06 ended
ZN8 6F —
SU003-09999 Wire, Front Door, LH
2022-06 → 2023-12 ended
ZN8 6FC (BASE,HIGH) B —
SU003-09999 note Wire, Front Door, LH
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-09999 note Wire, Front Door, LH
2021-10 → 2022-06 ended
ZN8 6F —
SU003-09999 note Wire, Front Door, LH
2023-12 → —
ZN8 6F (BASE,HIGH) C —
SU003-09999 Wire, Front Door, LH
2021-10 → 2022-06 ended
ZN8 6FC (BASE,HIGH) —
SU003-09999 note Wire, Front Door, LH
2024-09 → —
ZN8 6F (BASE,HIGH) D —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
