Toyota GR 86

2021-11 → present · chassis ZN8 · catalogue 264430 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

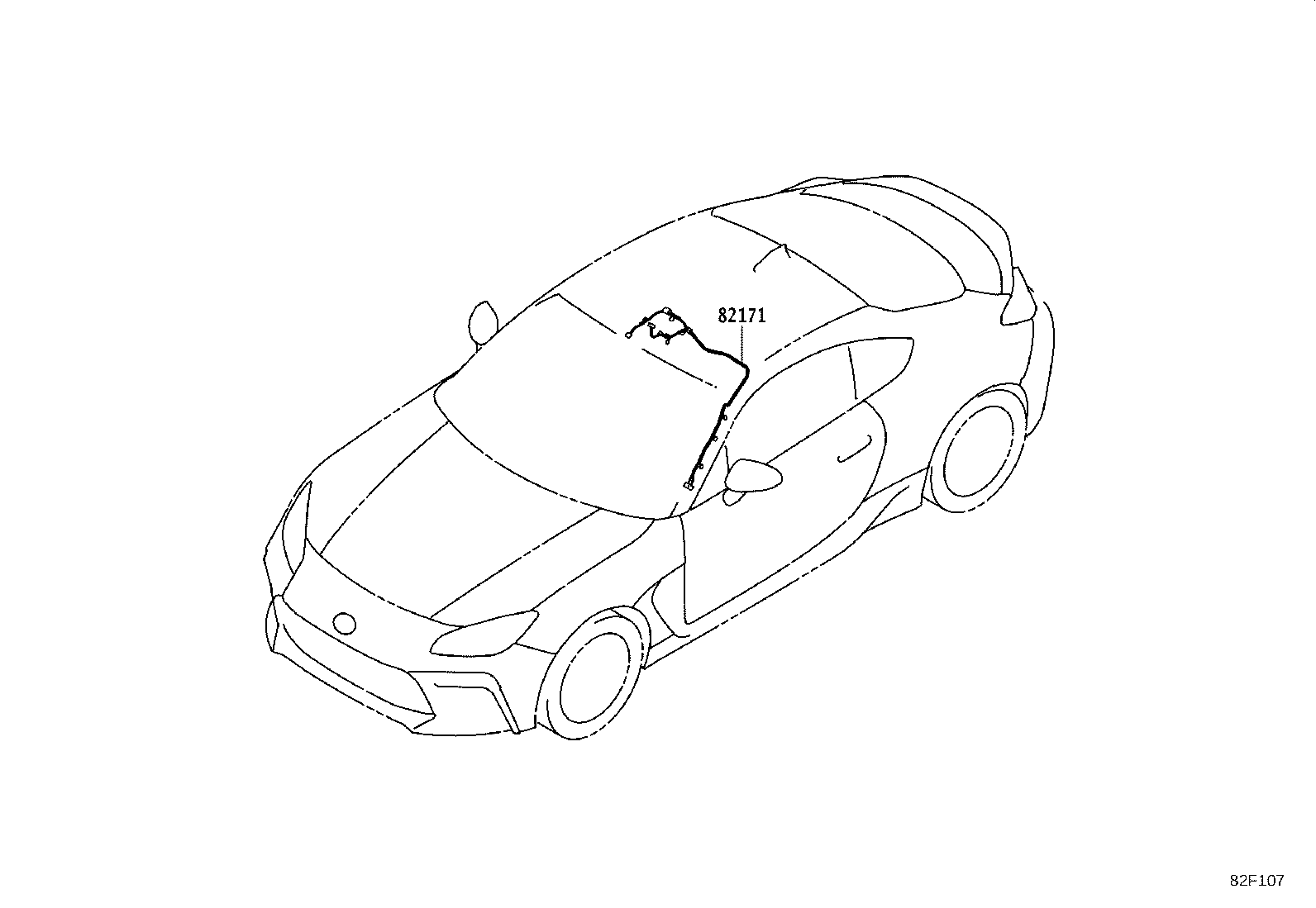

Exploded illustration 82F107 82171 — WIRE, ROOF, NO.1 (49 parts)
82F107 · 1 callouts Full size ↗
49 parts on this figure
Part number Description Fitment Price
82171 — Wire, Roof, NO.1
SU003-09473 note Wire, Roof, NO.1
2021-10 → 2022-06 ended
ZN8 6F BASE —
SU003-09473 note Wire, Roof, NO.1
2022-06 → 2023-12 ended
ZN8 6F BASE B —
SU003-09473 Wire, Roof, NO.1
2022-06 → 2023-12 ended
ZN8 6FC BASE B —
SU003-09473 Wire, Roof, NO.1
2021-10 → 2022-06 ended
ZN8 6FC BASE —
SU003-09473 note Wire, Roof, NO.1
2023-12 → —
ZN8 6F BASE C —
SU003-09475 note Wire, Roof, NO.1
2023-12 → —
ZN8 6F HIGH C —
SU003-09475 note Wire, Roof, NO.1
2022-06 → 2023-12 ended
ZN8 6F HIGH B —
SU003-09475 Wire, Roof, NO.1
2022-06 → 2023-12 ended
ZN8 6FC HIGH B —
SU003-09475 note Wire, Roof, NO.1
2021-10 → 2022-06 ended
ZN8 6F HIGH —
SU003-09475 Wire, Roof, NO.1
2021-10 → 2022-06 ended
ZN8 6FC HIGH —
SU003-09987 note Wire, Roof, NO.1
2023-12 → —
ZN8 BASE C —
SU003-09987 note Wire, Roof, NO.1
2023-12 → —
ZN8 BASE C —
SU003-09987 note Wire, Roof, NO.1
2021-10 → 2022-06 ended
ZN8 BASE2 —
SU003-09987 note Wire, Roof, NO.1
2021-10 → 2022-06 ended
ZN8 BASE2 —
SU003-09987 note Wire, Roof, NO.1
2022-06 → 2023-12 ended
ZN8 BASE2 B —
SU003-09987 note Wire, Roof, NO.1
2022-06 → 2023-12 ended
ZN8 BASE2 B —
SU003-09988 note Wire, Roof, NO.1
2021-10 → 2022-06 ended
ZN8 6F BASE —
SU003-09988 note Wire, Roof, NO.1
2021-10 → 2022-06 ended
ZN8 6F BASE —
SU003-09988 note Wire, Roof, NO.1
2022-06 → 2023-12 ended
ZN8 6F BASE B —
SU003-09988 note Wire, Roof, NO.1
2022-06 → 2023-12 ended
ZN8 6F BASE B —
SU003-09989 note Wire, Roof, NO.1
2023-12 → —
ZN8 BASE C —
SU003-09989 note Wire, Roof, NO.1
2022-06 → 2023-12 ended
ZN8 BASE2 B —
SU003-09989 note Wire, Roof, NO.1
2021-10 → 2022-06 ended
ZN8 BASE2 —
SU003-09990 note Wire, Roof, NO.1
2022-06 → 2023-12 ended
ZN8 6F BASE B —
SU003-09990 note Wire, Roof, NO.1
2021-10 → 2022-06 ended
ZN8 6F BASE —
SU003-09991 note Wire, Roof, NO.1
2022-06 → 2023-12 ended
ZN8 6FC (HIGH2,ORA) B —
SU003-09991 note Wire, Roof, NO.1
2022-06 → 2023-12 ended
ZN8 6FC (HIGH2,ORA) B —
SU003-09991 note Wire, Roof, NO.1
2023-12 → —
ZN8 (HIGH,ORB) C —
SU003-09991 note Wire, Roof, NO.1
2023-12 → —
ZN8 (HIGH,ORB) C —
SU003-09991 note Wire, Roof, NO.1
2021-10 → 2022-06 ended
ZN8 HIGH2 —
SU003-09991 note Wire, Roof, NO.1
2021-10 → 2022-06 ended
ZN8 HIGH2 —
SU003-09992 note Wire, Roof, NO.1
2021-10 → 2022-06 ended
ZN8 6F HIGH —
SU003-09992 Wire, Roof, NO.1
2022-06 → 2023-12 ended
ZN8 6F ORA —
SU003-09992 note Wire, Roof, NO.1
2022-06 → 2023-12 ended
ZN8 6F HIGH B —
SU003-09992 note Wire, Roof, NO.1
2022-06 → 2023-12 ended
ZN8 6F HIGH B —
SU003-09992 note Wire, Roof, NO.1
2021-10 → 2022-06 ended
ZN8 6F HIGH —
SU003-09993 note Wire, Roof, NO.1
2021-10 → 2022-06 ended
ZN8 HIGH2 —
SU003-09993 note Wire, Roof, NO.1
2023-12 → —
ZN8 (HIGH,ORB) C —
SU003-09993 note Wire, Roof, NO.1
2022-06 → 2023-12 ended
ZN8 6FC (HIGH2,ORA) B —
SU003-09994 note Wire, Roof, NO.1
2022-06 → 2023-12 ended
ZN8 6F HIGH B —
SU003-09994 note Wire, Roof, NO.1
2021-10 → 2022-06 ended
ZN8 6F HIGH —
SU003-11907 note Wire, Roof, NO.1
2024-09 → —
ZN8 6F BASE D —
SU003-11908 note Wire, Roof, NO.1
2024-09 → —
ZN8 6F HIGH D —
SU003-12127 note Wire, Roof, NO.1
2024-09 → —
ZN8 BASE D —
SU003-12127 note Wire, Roof, NO.1
2024-09 → —
ZN8 BASE D —
SU003-12128 note Wire, Roof, NO.1
2024-09 → —
ZN8 BASE D —
SU003-12129 note Wire, Roof, NO.1
2024-09 → —
ZN8 (GRA,HIGH) D —
SU003-12129 note Wire, Roof, NO.1
2024-09 → —
ZN8 (GRA,HIGH) D —
SU003-12130 note Wire, Roof, NO.1
2024-09 → —
ZN8 (GRA,HIGH) D —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
