Toyota GR 86

2021-11 → present · chassis ZN8 · catalogue 264430 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

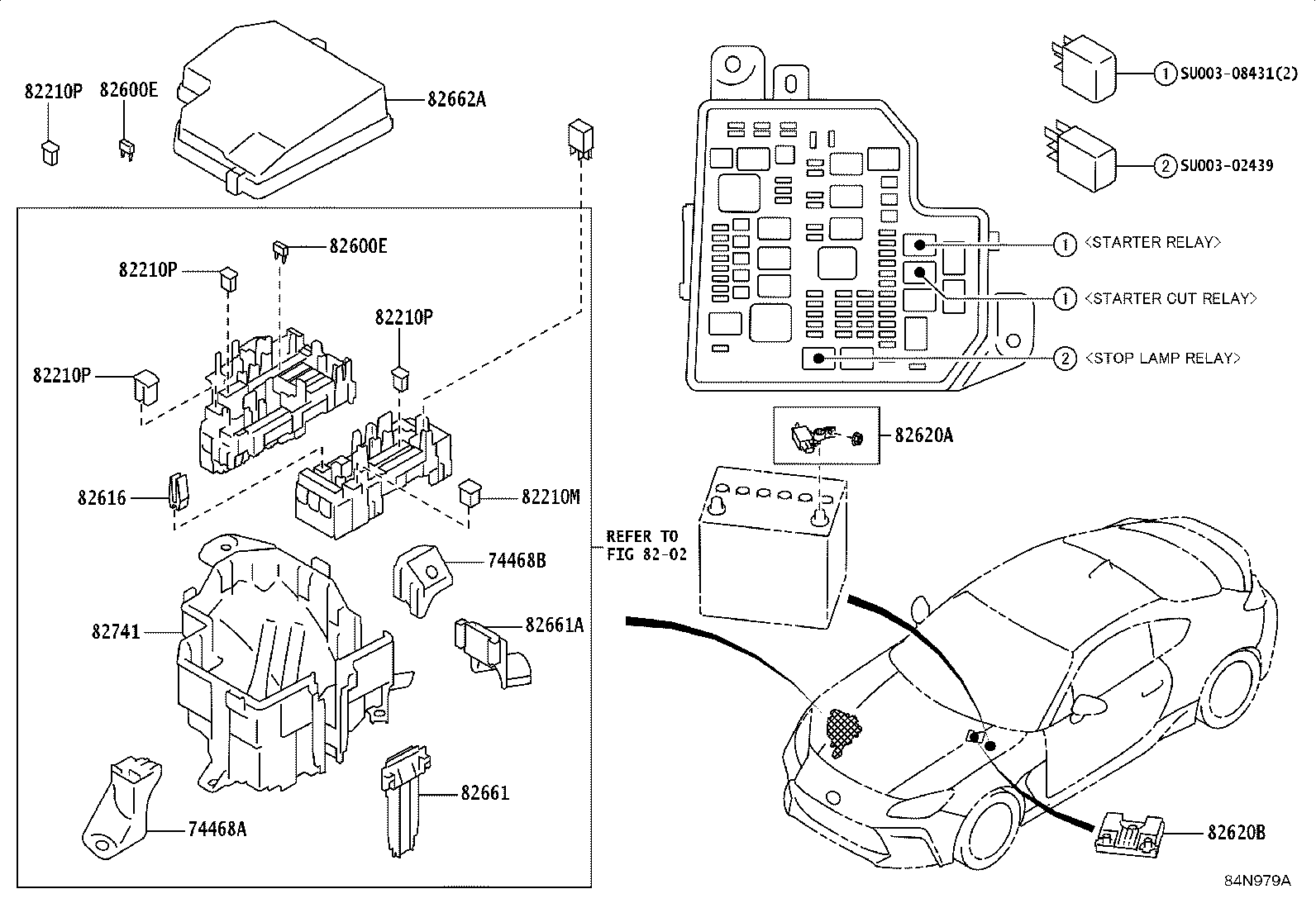

Exploded illustration 84N979A SU00302439 — not listed in this catalogue SU00308431 — not listed in this catalogue 8202 — not listed in this catalogue 82620A — BLOCK ASSY, FUSIBLE LINK (4 parts) 82620B — BLOCK ASSY, FUSIBLE LINK (11 parts) 82662A — COVER, RELAY BLOCK, UPPER, NO.1 (5 parts) 82600E — ENGINE ROOM FUSE (24 parts) 82210P — ENGINE ROOM FUSIBLE LINK (54 parts) 82210P — ENGINE ROOM FUSIBLE LINK (54 parts) 82210M — FUSIBLE LINK (4 parts) 74468B — BRACKET, RELAY BLOCK, NO.2 (4 parts) 82661A — COVER, RELAY BLOCK, NO.2 (4 parts) 82661 — COVER, RELAY BLOCK, NO.1 (4 parts) 74468A — BRACKET, RELAY BLOCK (4 parts) 82210P — ENGINE ROOM FUSIBLE LINK (54 parts) 82616 — PULLER, FUSE (4 parts) 82741 — BLOCK, ENGINE ROOM RELAY (4 parts) 82600E — ENGINE ROOM FUSE (24 parts) 82210P — ENGINE ROOM FUSIBLE LINK (54 parts)
84N979A · 16 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
126 parts on this figure
Part number Description Fitment Price
74468A — Bracket, Relay Block
SU003-10592 Bracket, Relay Block
2022-06 → 2023-12 ended
ZN8 B —
SU003-10592 Bracket, Relay Block
2021-10 → 2022-06 ended
ZN8 —
SU003-10592 Bracket, Relay Block
2024-09 → —
ZN8 D —
SU003-10592 Bracket, Relay Block
2023-12 → —
ZN8 C —
74468B — Bracket, Relay Block, NO.2
SU003-10593 Bracket, Relay Block, NO.2
2021-10 → 2022-06 ended
ZN8 —
SU003-10593 Bracket, Relay Block, NO.2
2022-06 → 2023-12 ended
ZN8 B —
SU003-10593 Bracket, Relay Block, NO.2
2023-12 → —
ZN8 C —
SU003-10593 Bracket, Relay Block, NO.2
2024-09 → —
ZN8 D —
82210M — Fusible Link
SU003-08484 note Fusible Link
2021-10 → 2022-06 ended
ZN8 —
SU003-08484 note Fusible Link
2022-06 → —
ZN8 B —
SU003-08484 note Fusible Link
2023-12 → —
ZN8 C —
SU003-08484 note Fusible Link
2024-09 → —
ZN8 D —
82210P — Engine Room Fusible Link
SU003-02428 note Engine Room Fusible Link
2024-09 → —
ZN8 D —
SU003-02428 note Engine Room Fusible Link
2023-12 → —
ZN8 C —
SU003-02428 note Engine Room Fusible Link
2023-12 → —
ZN8 C —
SU003-02428 note Engine Room Fusible Link
2022-06 → 2023-12 ended
ZN8 6FC (BASE,HIGH) B —
SU003-02428 note Engine Room Fusible Link
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-02428 note Engine Room Fusible Link
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B;ZN8 +2 —
SU003-02428 note Engine Room Fusible Link
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B;ZN8 +2 —
SU003-02428 note Engine Room Fusible Link
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B;ZN8 +2 —
SU003-02428 note Engine Room Fusible Link
2023-12 → —
ZN8 6F (BASE,HIGH) C —
SU003-02428 note Engine Room Fusible Link
2024-09 → —
ZN8 D —
SU003-02428 note Engine Room Fusible Link
2024-09 → —
ZN8 D —
SU003-02428 note Engine Room Fusible Link
2023-12 → —
ZN8 C —
SU003-02428 note Engine Room Fusible Link
2024-09 → —
ZN8 6F (BASE,HIGH) D —
SU003-02428 note Engine Room Fusible Link
2021-10 → 2022-06 ended
ZN8 6F;ZN8 BASE2,HIGH2 —
SU003-02428 note Engine Room Fusible Link
2021-10 → 2022-06 ended
ZN8 6F;ZN8 BASE2,HIGH2 —
SU003-02428 note Engine Room Fusible Link
2021-10 → 2022-06 ended
ZN8 6F;ZN8 BASE2,HIGH2 —
SU003-02428 note Engine Room Fusible Link
2021-10 → 2022-06 ended
ZN8 6F —
SU003-02428 note Engine Room Fusible Link
2021-10 → 2022-06 ended
ZN8 6FC (BASE,HIGH) —
SU003-08485 note Engine Room Fusible Link
2023-12 → —
ZN8 6F (BASE,HIGH) C —
SU003-08485 note Engine Room Fusible Link
2023-12 → —
ZN8 C —
SU003-08485 note Engine Room Fusible Link
2023-12 → —
ZN8 C —
SU003-08485 note Engine Room Fusible Link
2023-12 → —
ZN8 C —
SU003-08485 note Engine Room Fusible Link
2024-09 → —
ZN8 D —
SU003-08485 note Engine Room Fusible Link
2024-09 → —
ZN8 6F (BASE,HIGH) D —
SU003-08485 note Engine Room Fusible Link
2024-09 → —
ZN8 D —
SU003-08485 note Engine Room Fusible Link
2024-09 → —
ZN8 D —
SU003-08485 note Engine Room Fusible Link
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B;ZN8 +2 —
SU003-08485 note Engine Room Fusible Link
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B;ZN8 +2 —
SU003-08485 note Engine Room Fusible Link
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B;ZN8 +2 —
SU003-08485 note Engine Room Fusible Link
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-08485 note Engine Room Fusible Link
2022-06 → 2023-12 ended
ZN8 6FC (BASE,HIGH) B —
SU003-08485 note Engine Room Fusible Link
2021-10 → 2022-06 ended
ZN8 6F;ZN8 BASE2,HIGH2 —
SU003-08485 note Engine Room Fusible Link
2021-10 → 2022-06 ended
ZN8 6F;ZN8 BASE2,HIGH2 —
SU003-08485 note Engine Room Fusible Link
2021-10 → 2022-06 ended
ZN8 6F;ZN8 BASE2,HIGH2 —
SU003-08485 note Engine Room Fusible Link
2021-10 → 2022-06 ended
ZN8 6F —
SU003-08485 note Engine Room Fusible Link
2021-10 → 2022-06 ended
ZN8 6FC (BASE,HIGH) —
SU003-08486 note Engine Room Fusible Link
2024-09 → —
ZN8 D —
SU003-08486 note Engine Room Fusible Link
2024-09 → —
ZN8 6F (BASE,HIGH) D —
SU003-08486 note Engine Room Fusible Link
2024-09 → —
ZN8 D —
SU003-08486 note Engine Room Fusible Link
2024-09 → —
ZN8 D —
SU003-08486 note Engine Room Fusible Link
2023-12 → —
ZN8 C —
SU003-08486 note Engine Room Fusible Link
2023-12 → —
ZN8 C —
SU003-08486 note Engine Room Fusible Link
2023-12 → —
ZN8 C —
SU003-08486 note Engine Room Fusible Link
2021-10 → 2022-06 ended
ZN8 6FC (BASE,HIGH) —
SU003-08486 note Engine Room Fusible Link
2021-10 → 2022-06 ended
ZN8 6F —
SU003-08486 note Engine Room Fusible Link
2021-10 → 2022-06 ended
ZN8 6F;ZN8 BASE2,HIGH2 —
SU003-08486 note Engine Room Fusible Link
2021-10 → 2022-06 ended
ZN8 6F;ZN8 BASE2,HIGH2 —
SU003-08486 note Engine Room Fusible Link
2021-10 → 2022-06 ended
ZN8 6F;ZN8 BASE2,HIGH2 —
SU003-08486 note Engine Room Fusible Link
2022-06 → 2023-12 ended
ZN8 6FC (BASE,HIGH) B —
SU003-08486 note Engine Room Fusible Link
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-08486 note Engine Room Fusible Link
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B;ZN8 +2 —
SU003-08486 note Engine Room Fusible Link
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B;ZN8 +2 —
SU003-08486 note Engine Room Fusible Link
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B;ZN8 +2 —
SU003-08486 note Engine Room Fusible Link
2023-12 → —
ZN8 6F (BASE,HIGH) C —
82600E — Engine Room Fuse
SU003-02423 note Engine Room Fuse
2021-10 → 2022-06 ended
ZN8 —
SU003-02423 note Engine Room Fuse
2024-09 → —
ZN8 D —
SU003-02423 note Engine Room Fuse
2022-06 → 2023-12 ended
ZN8 B —
SU003-02423 note Engine Room Fuse
2023-12 → —
ZN8 C —
SU003-02424 note Engine Room Fuse
2021-10 → 2022-06 ended
ZN8 —
SU003-02424 note Engine Room Fuse
2024-09 → —
ZN8 D —
SU003-02424 note Engine Room Fuse
2022-06 → 2023-12 ended
ZN8 B —
SU003-02424 note Engine Room Fuse
2023-12 → —
ZN8 C —
SU003-02425 note Engine Room Fuse
2023-12 → —
ZN8 C —
SU003-02425 note Engine Room Fuse
2024-09 → —
ZN8 D —
SU003-02425 note Engine Room Fuse
2022-06 → 2023-12 ended
ZN8 B —
SU003-02425 note Engine Room Fuse
2021-10 → 2022-06 ended
ZN8 —
SU003-02426 note Engine Room Fuse
2022-06 → 2023-12 ended
ZN8 B —
SU003-02426 note Engine Room Fuse
2023-12 → —
ZN8 C —
SU003-02426 note Engine Room Fuse
2024-09 → —
ZN8 D —
SU003-02426 note Engine Room Fuse
2021-10 → 2022-06 ended
ZN8 —
SU003-02427 note Engine Room Fuse
2022-06 → 2023-12 ended
ZN8 B —
SU003-02427 note Engine Room Fuse
2024-09 → —
ZN8 D —
SU003-02427 note Engine Room Fuse
2021-10 → 2022-06 ended
ZN8 —
SU003-02427 note Engine Room Fuse
2023-12 → —
ZN8 C —
SU003-04126 note Engine Room Fuse
2024-09 → —
ZN8 D —
SU003-04126 note Engine Room Fuse
2022-06 → 2023-12 ended
ZN8 B —
SU003-04126 note Engine Room Fuse
2021-10 → 2022-06 ended
ZN8 —
SU003-04126 note Engine Room Fuse
2023-12 → —
ZN8 C —
82616 — Puller, Fuse
SU003-04209 Puller, Fuse
2021-10 → 2022-06 ended
ZN8 —
SU003-04209 Puller, Fuse
2022-06 → 2023-12 ended
ZN8 B —
SU003-04209 Puller, Fuse
2023-12 → —
ZN8 C —
SU003-04209 Puller, Fuse
2024-09 → —
ZN8 D —
82620A — Block Assy, Fusible Link
SU003-08438 Block Assy, Fusible Link
2021-10 → 2022-06 ended
ZN8 —
SU003-08438 Block Assy, Fusible Link
2022-06 → 2023-12 ended
ZN8 B —
SU003-08438 Block Assy, Fusible Link
2023-12 → 2024-04 ended
ZN8 C —
SU003-12146 Block Assy, Fusible Link
2024-05 → —
ZN8 C,D —
82620B — Block Assy, Fusible Link
SU003-12069 note Block Assy, Fusible Link
2024-09 → —
ZN8 D —
SU003-12069 note Block Assy, Fusible Link
2024-09 → —
ZN8 D —
SU003-12069 note Block Assy, Fusible Link
2024-09 → —
ZN8 D —
SU003-12069 note Block Assy, Fusible Link
2024-09 → —
ZN8 6F (BASE,HIGH) D —
SU003-12069 note Block Assy, Fusible Link
2023-12 → —
ZN8 C —
SU003-12069 note Block Assy, Fusible Link
2023-12 → —
ZN8 C —
SU003-12069 note Block Assy, Fusible Link
2023-12 → —
ZN8 6F (BASE,HIGH) C —
SU003-12069 Block Assy, Fusible Link
2024-04 → 2024-05 ended
ZN8 C —
SU003-12069 Block Assy, Fusible Link
2022-06 → 2023-12 ended
ZN8 B —
SU003-12069 Block Assy, Fusible Link
2021-10 → 2022-06 ended
ZN8 —
SU003-12069 note Block Assy, Fusible Link
2023-12 → —
ZN8 C —
82661 — Cover, Relay Block, NO.1
SU003-10590 Cover, Relay Block, NO.1
2021-10 → 2022-06 ended
ZN8 —
SU003-10590 Cover, Relay Block, NO.1
2022-06 → 2023-12 ended
ZN8 B —
SU003-10590 Cover, Relay Block, NO.1
2023-12 → —
ZN8 C —
SU003-10590 Cover, Relay Block, NO.1
2024-09 → —
ZN8 D —
82661A — Cover, Relay Block, NO.2
SU003-10591 Cover, Relay Block, NO.2
2022-06 → 2023-12 ended
ZN8 B —
SU003-10591 Cover, Relay Block, NO.2
2024-09 → —
ZN8 D —
SU003-10591 Cover, Relay Block, NO.2
2023-12 → —
ZN8 C —
SU003-10591 Cover, Relay Block, NO.2
2021-10 → 2022-06 ended
ZN8 —
82662A — Cover, Relay Block, Upper, NO.1
SU003-09330 Cover, Relay Block, Upper, NO.1
2021-10 → 2022-06 ended
ZN8 —
SU003-09330 Cover, Relay Block, Upper, NO.1
2022-06 → 2023-12 ended
ZN8 B —
SU003-09330 Cover, Relay Block, Upper, NO.1
2023-12 → 2024-03 ended
ZN8 C —
SU003-11909 Cover, Relay Block, Upper, NO.1
2024-03 → —
ZN8 C —
SU003-11909 Cover, Relay Block, Upper, NO.1
2024-09 → —
ZN8 D —
82741 — Block, Engine Room Relay
SU003-10594 Block, Engine Room Relay
2021-10 → 2022-06 ended
ZN8 —
SU003-10594 Block, Engine Room Relay
2022-06 → 2023-12 ended
ZN8 B —
SU003-10594 Block, Engine Room Relay
2023-12 → —
ZN8 C —
SU003-10594 Block, Engine Room Relay
2024-09 → —
ZN8 D —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
