Toyota GR 86
2021-11 → present · chassis ZN8 · catalogue 264430 · United States
Supported model
Data version 2024-10

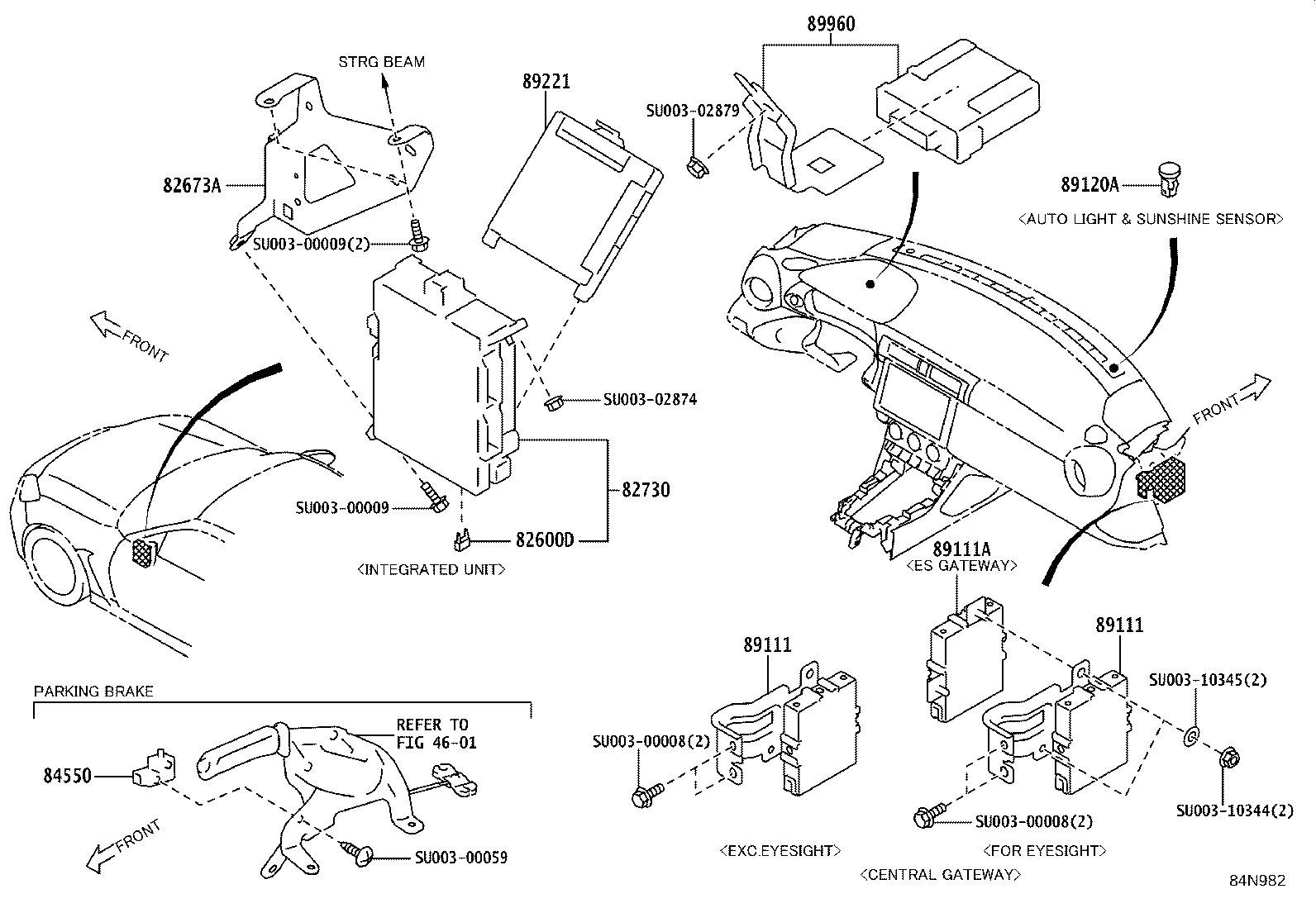

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82600D — Instrument Panel Fuse | ||||
| SU003-02423 note |
Instrument Panel Fuse
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-02423 note |
Instrument Panel Fuse
2023-12 → —
|
ZN8 C | — | |
| SU003-02423 note |
Instrument Panel Fuse
2024-09 → —
|
ZN8 D | — | |
| SU003-02423 note |
Instrument Panel Fuse
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-02424 note |
Instrument Panel Fuse
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-02424 note |
Instrument Panel Fuse
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-02424 note |
Instrument Panel Fuse
2023-12 → —
|
ZN8 C | — | |
| SU003-02424 note |
Instrument Panel Fuse
2024-09 → —
|
ZN8 D | — | |
| SU003-04126 note |
Instrument Panel Fuse
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-04126 note |
Instrument Panel Fuse
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-04126 note |
Instrument Panel Fuse
2023-12 → —
|
ZN8 C | — | |
| SU003-04126 note |
Instrument Panel Fuse
2024-09 → —
|
ZN8 D | — | |
| 82673A — Bracket, Junction Block, NO.1 | ||||
| SU003-09950 |
Bracket, Junction Block, NO.1
2023-12 → —
|
ZN8 C | — | |
| SU003-09950 |
Bracket, Junction Block, NO.1
2024-09 → —
|
ZN8 D | — | |
| SU003-09950 |
Bracket, Junction Block, NO.1
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-09950 |
Bracket, Junction Block, NO.1
2021-10 → 2022-06
ended
|
ZN8 | — | |
| 82730 — Block Assy, Instrument Panel Junction | ||||
| SU003-10000 |
Block Assy, Instrument Panel Junction
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-10000 |
Block Assy, Instrument Panel Junction
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-10000 |
Block Assy, Instrument Panel Junction
2023-12 → —
|
ZN8 C | — | |
| SU003-10000 |
Block Assy, Instrument Panel Junction
2024-09 → —
|
ZN8 D | — | |
| 84550 — Switch Assy, Parking Brake | ||||
| SU003-02493 |
Switch Assy, Parking Brake
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-02493 |
Switch Assy, Parking Brake
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-02493 |
Switch Assy, Parking Brake
2023-12 → —
|
ZN8 C | — | |
| SU003-02493 |
Switch Assy, Parking Brake
2024-09 → —
|
ZN8 D | — | |
| 89111 — Computer, Network Gateway | ||||
| SU003-10028 |
Computer, Network Gateway
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-10989 |
Computer, Network Gateway
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-10990 |
Computer, Network Gateway
2022-06 → 2023-12
ended
|
ZN8 6FC (BASE2,HIGH2,ORA) B | — | |
| SU003-11603 note |
Computer, Network Gateway
2023-12 → —
|
ZN8 6F (BASE,HIGH) C | — | |
| SU003-11603 note |
Computer, Network Gateway
2023-12 → —
|
ZN8 6F (BASE,HIGH) C | — | |
| SU003-11603 note |
Computer, Network Gateway
2023-12 → —
|
ZN8 6F (BASE,HIGH) C | — | |
| SU003-11603 |
Computer, Network Gateway
2023-12 → —
|
ZN8 6FC C;ZN8 6F +1 | — | |
| SU003-11773 |
Computer, Network Gateway
2023-12 → —
|
ZN8 6FC C;ZN8 6F +1 | — | |
| SU003-11773 note |
Computer, Network Gateway
2023-12 → —
|
ZN8 6F (BASE,HIGH) C | — | |
| SU003-11773 note |
Computer, Network Gateway
2023-12 → —
|
ZN8 6F (BASE,HIGH) C | — | |
| SU003-11773 note |
Computer, Network Gateway
2023-12 → —
|
ZN8 6F (BASE,HIGH) C | — | |
| SU003-11773 note |
Computer, Network Gateway
2023-12 → —
|
ZN8 6F (BASE,HIGH) C | — | |
| SU003-11986 |
Computer, Network Gateway
2024-09 → —
|
ZN8 D | — | |
| 89111A — Computer, Network Gateway, NO.2 | ||||
| SU003-10810 |
Computer, Network Gateway, NO.2
2021-10 → 2022-06
ended
|
ZN8 BASE2,HIGH2 | — | |
| SU003-10810 |
Computer, Network Gateway, NO.2
2022-06 → 2023-12
ended
|
ZN8 6FC (BASE2,HIGH2,ORA) B | — | |
| SU003-11814 |
Computer, Network Gateway, NO.2
2023-12 → —
|
ZN8 C | — | |
| SU003-11814 |
Computer, Network Gateway, NO.2
2024-09 → —
|
ZN8 D | — | |
| 89120A — Sensor, Automatic Light Control | ||||
| SU003-02516 |
Sensor, Automatic Light Control
2024-09 → —
|
ZN8 D | — | |
| SU003-02516 |
Sensor, Automatic Light Control
2023-12 → —
|
ZN8 C | — | |
| SU003-02516 |
Sensor, Automatic Light Control
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-02516 |
Sensor, Automatic Light Control
2021-10 → 2022-06
ended
|
ZN8 | — | |
| 89221 — Computer, Multiplex Network Body | ||||
| SU003-10861 note |
Computer, Multiplex Network Body
2021-10 → 2022-06
ended
|
ZN8 6F | — | |
| SU003-10861 note |
Computer, Multiplex Network Body
2021-10 → 2022-06
ended
|
ZN8 6F | — | |
| SU003-10861 note |
Computer, Multiplex Network Body
2022-06 → 2023-12
ended
|
ZN8 6F B | — | |
| SU003-10861 note |
Computer, Multiplex Network Body
2022-06 → 2023-12
ended
|
ZN8 6F B | — | |
| SU003-10862 note |
Computer, Multiplex Network Body
2021-10 → 2022-06
ended
|
ZN8 BASE2,HIGH2 | — | |
| SU003-10862 note |
Computer, Multiplex Network Body
2021-10 → 2022-06
ended
|
ZN8 BASE2,HIGH2 | — | |
| SU003-10862 note |
Computer, Multiplex Network Body
2023-12 → —
|
ZN8 6FC C | — | |
| SU003-10862 note |
Computer, Multiplex Network Body
2022-06 → 2023-12
ended
|
ZN8 6FC (BASE2,HIGH2,ORA) B | — | |
| SU003-10862 note |
Computer, Multiplex Network Body
2022-06 → 2023-12
ended
|
ZN8 6FC (BASE2,HIGH2,ORA) B | — | |
| SU003-10862 note |
Computer, Multiplex Network Body
2023-12 → —
|
ZN8 6FC C | — | |
| SU003-10863 note |
Computer, Multiplex Network Body
2021-10 → 2022-06
ended
|
ZN8 6F | — | |
| SU003-10863 note |
Computer, Multiplex Network Body
2023-12 → —
|
ZN8 6F (BASE,HIGH) C | — | |
| SU003-10863 note |
Computer, Multiplex Network Body
2022-06 → 2023-12
ended
|
ZN8 6F (BASE,HIGH) B | — | |
| SU003-10864 |
Computer, Multiplex Network Body
2021-10 → 2022-06
ended
|
ZN8 6FC (BASE,HIGH) | — | |
| SU003-10864 |
Computer, Multiplex Network Body
2022-06 → 2023-12
ended
|
ZN8 6FC (BASE,HIGH) B | — | |
| SU003-10865 note |
Computer, Multiplex Network Body
2021-10 → 2022-06
ended
|
ZN8 6F | — | |
| SU003-10865 note |
Computer, Multiplex Network Body
2022-06 → 2023-12
ended
|
ZN8 6F B | — | |
| SU003-10866 note |
Computer, Multiplex Network Body
2022-06 → 2023-12
ended
|
ZN8 6FC (BASE2,HIGH2,ORA) B | — | |
| SU003-10866 note |
Computer, Multiplex Network Body
2021-10 → 2022-06
ended
|
ZN8 BASE2,HIGH2 | — | |
| SU003-10866 note |
Computer, Multiplex Network Body
2023-12 → —
|
ZN8 6FC C | — | |
| SU003-11771 note |
Computer, Multiplex Network Body
2023-12 → —
|
ZN8 6F C | — | |
| SU003-11771 note |
Computer, Multiplex Network Body
2023-12 → —
|
ZN8 6F C | — | |
| SU003-11772 note |
Computer, Multiplex Network Body
2023-12 → —
|
ZN8 6F C | — | |
| SU003-12075 note |
Computer, Multiplex Network Body
2024-09 → —
|
ZN8 6F D | — | |
| SU003-12075 note |
Computer, Multiplex Network Body
2024-09 → —
|
ZN8 6F D | — | |
| SU003-12076 note |
Computer, Multiplex Network Body
2024-09 → —
|
ZN8 6FC D | — | |
| SU003-12076 note |
Computer, Multiplex Network Body
2024-09 → —
|
ZN8 6FC D | — | |
| SU003-12077 note |
Computer, Multiplex Network Body
2024-09 → —
|
ZN8 6F (BASE,HIGH) D | — | |
| SU003-12078 note |
Computer, Multiplex Network Body
2024-09 → —
|
ZN8 6F D | — | |
| SU003-12079 note |
Computer, Multiplex Network Body
2024-09 → —
|
ZN8 6FC D | — | |
| 89960 — Computer Assy, Headlamp Leveling | ||||
| SU003-10881 |
Computer Assy, Headlamp Leveling
2021-10 → 2022-06
ended
|
ZN8 6FC HIGH | — | |
| SU003-10881 note |
Computer Assy, Headlamp Leveling
2021-10 → 2022-06
ended
|
ZN8 6F HIGH | — | |
| SU003-10881 |
Computer Assy, Headlamp Leveling
2022-06 → 2023-12
ended
|
ZN8 6FC HIGH B | — | |
| SU003-10881 note |
Computer Assy, Headlamp Leveling
2022-06 → 2023-12
ended
|
ZN8 6F HIGH B | — | |
| SU003-10881 note |
Computer Assy, Headlamp Leveling
2024-09 → —
|
ZN8 6F HIGH D | — | |
| SU003-10881 note |
Computer Assy, Headlamp Leveling
2023-12 → —
|
ZN8 6F HIGH C | — | |
| SU003-10882 note |
Computer Assy, Headlamp Leveling
2024-09 → —
|
ZN8 6F HIGH D | — | |
| SU003-10882 note |
Computer Assy, Headlamp Leveling
2024-09 → —
|
ZN8 6F HIGH D | — | |
| SU003-10882 note |
Computer Assy, Headlamp Leveling
2024-09 → —
|
ZN8 6F HIGH D | — | |
| SU003-10882 note |
Computer Assy, Headlamp Leveling
2021-10 → 2022-06
ended
|
ZN8 6F HIGH | — | |
| SU003-10882 |
Computer Assy, Headlamp Leveling
2024-09 → —
|
ZN8 GRA;ZN8 6FC HIGH +1 | — | |
| SU003-10882 note |
Computer Assy, Headlamp Leveling
2023-12 → —
|
ZN8 6F HIGH C | — | |
| SU003-10882 note |
Computer Assy, Headlamp Leveling
2023-12 → —
|
ZN8 6F HIGH C | — | |
| SU003-10882 note |
Computer Assy, Headlamp Leveling
2023-12 → —
|
ZN8 6F HIGH C | — | |
| SU003-10882 |
Computer Assy, Headlamp Leveling
2023-12 → —
|
ZN8 6F ORB;ZN8 6FC +2 | — | |
| SU003-10882 note |
Computer Assy, Headlamp Leveling
2022-06 → 2023-12
ended
|
ZN8 6F HIGH B | — | |
| SU003-10882 note |
Computer Assy, Headlamp Leveling
2022-06 → 2023-12
ended
|
ZN8 6F HIGH B | — | |
| SU003-10882 note |
Computer Assy, Headlamp Leveling
2022-06 → 2023-12
ended
|
ZN8 6F HIGH B | — | |
| SU003-10882 |
Computer Assy, Headlamp Leveling
2022-06 → 2023-12
ended
|
ZN8 (HIGH2,ORA) B | — | |
| SU003-10882 note |
Computer Assy, Headlamp Leveling
2021-10 → 2022-06
ended
|
ZN8 6F HIGH | — | |
| SU003-10882 note |
Computer Assy, Headlamp Leveling
2021-10 → 2022-06
ended
|
ZN8 6F HIGH | — | |
| SU003-10882 |
Computer Assy, Headlamp Leveling
2021-10 → 2022-06
ended
|
ZN8 HIGH2 | — | |
| SU003-10883 |
Computer Assy, Headlamp Leveling
2022-06 → 2023-12
ended
|
ZN8 (BASE,BASE2) B | — | |
| SU003-10883 |
Computer Assy, Headlamp Leveling
2023-12 → —
|
ZN8 BASE C | — | |
| SU003-10883 |
Computer Assy, Headlamp Leveling
2021-10 → 2022-06
ended
|
ZN8 BASE,BASE2 | — | |
| SU003-10883 |
Computer Assy, Headlamp Leveling
2024-09 → —
|
ZN8 BASE D | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
