Toyota GR 86
2021-11 → present · chassis ZN8 · catalogue 264430 · United States
Supported model
Data version 2024-10

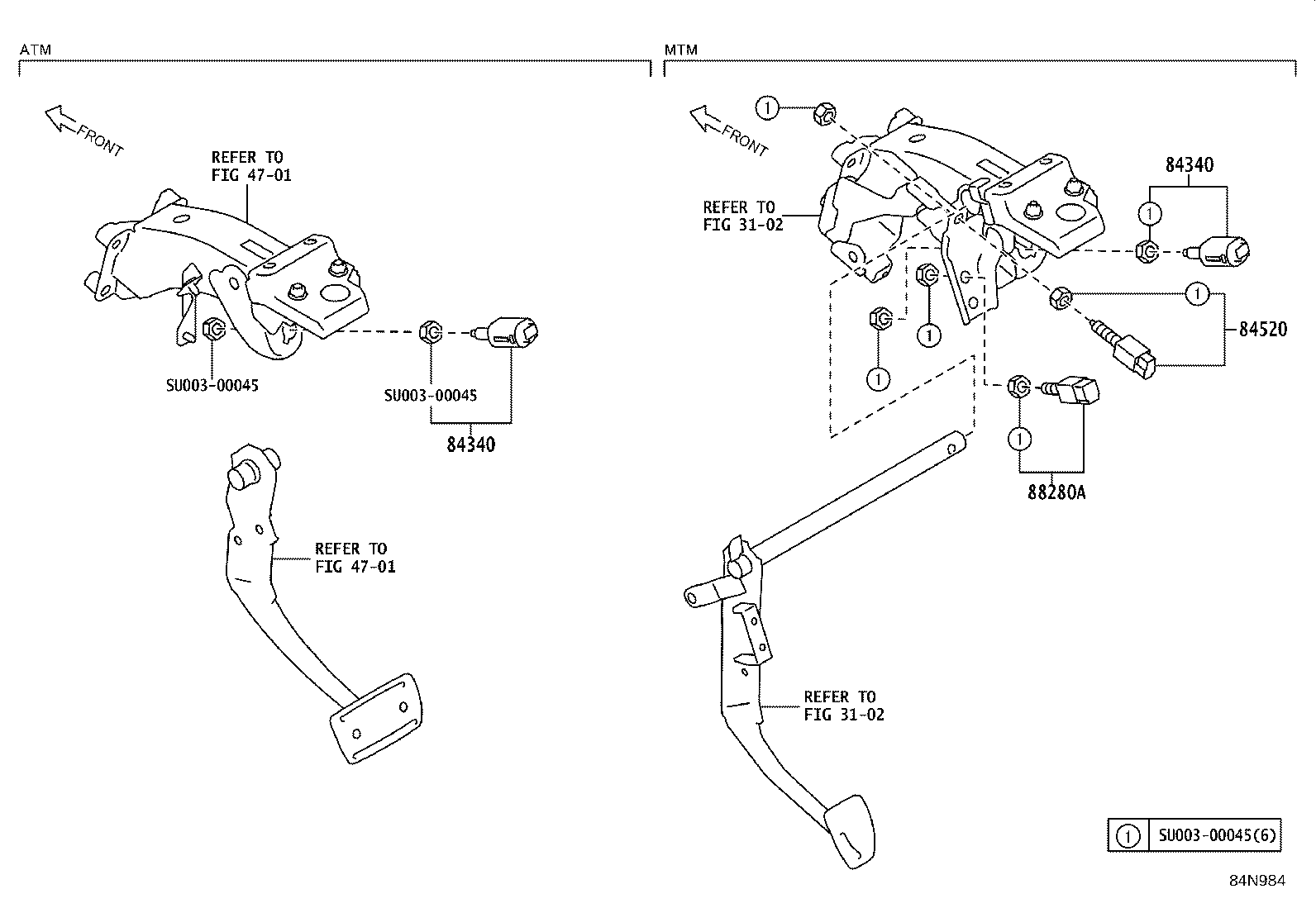

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84340 — Switch Assy, Stop Lamp | ||||
| SU003-08498 |
Switch Assy, Stop Lamp
2021-10 → 2022-02
ended
|
ZN8 | — | |
| SU003-10825 |
Switch Assy, Stop Lamp
2022-02 → 2022-06
ended
|
ZN8 | — | |
| SU003-10825 |
Switch Assy, Stop Lamp
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-10825 |
Switch Assy, Stop Lamp
2023-12 → —
|
ZN8 C | — | |
| SU003-10825 |
Switch Assy, Stop Lamp
2024-09 → —
|
ZN8 D | — | |
| 84520 — Switch Assy, Clutch Start | ||||
| SU003-02489 |
Switch Assy, Clutch Start
2021-10 → 2022-06
ended
|
ZN8 6F | — | |
| SU003-02489 |
Switch Assy, Clutch Start
2022-06 → 2023-12
ended
|
ZN8 6F B | — | |
| SU003-02489 |
Switch Assy, Clutch Start
2023-12 → —
|
ZN8 6F C | — | |
| SU003-02489 |
Switch Assy, Clutch Start
2024-09 → —
|
ZN8 6F D | — | |
| 88280A — Switch Assy, Clutch | ||||
| SU003-02488 |
Switch Assy, Clutch
2021-10 → 2022-06
ended
|
ZN8 6F | — | |
| SU003-02488 |
Switch Assy, Clutch
2022-06 → 2023-12
ended
|
ZN8 6F B | — | |
| SU003-02488 |
Switch Assy, Clutch
2023-12 → —
|
ZN8 6F C | — | |
| SU003-02488 |
Switch Assy, Clutch
2024-09 → —
|
ZN8 6F D | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
