Toyota GR 86
2021-11 → present · chassis ZN8 · catalogue 264430 · United States
Supported model
Data version 2024-10

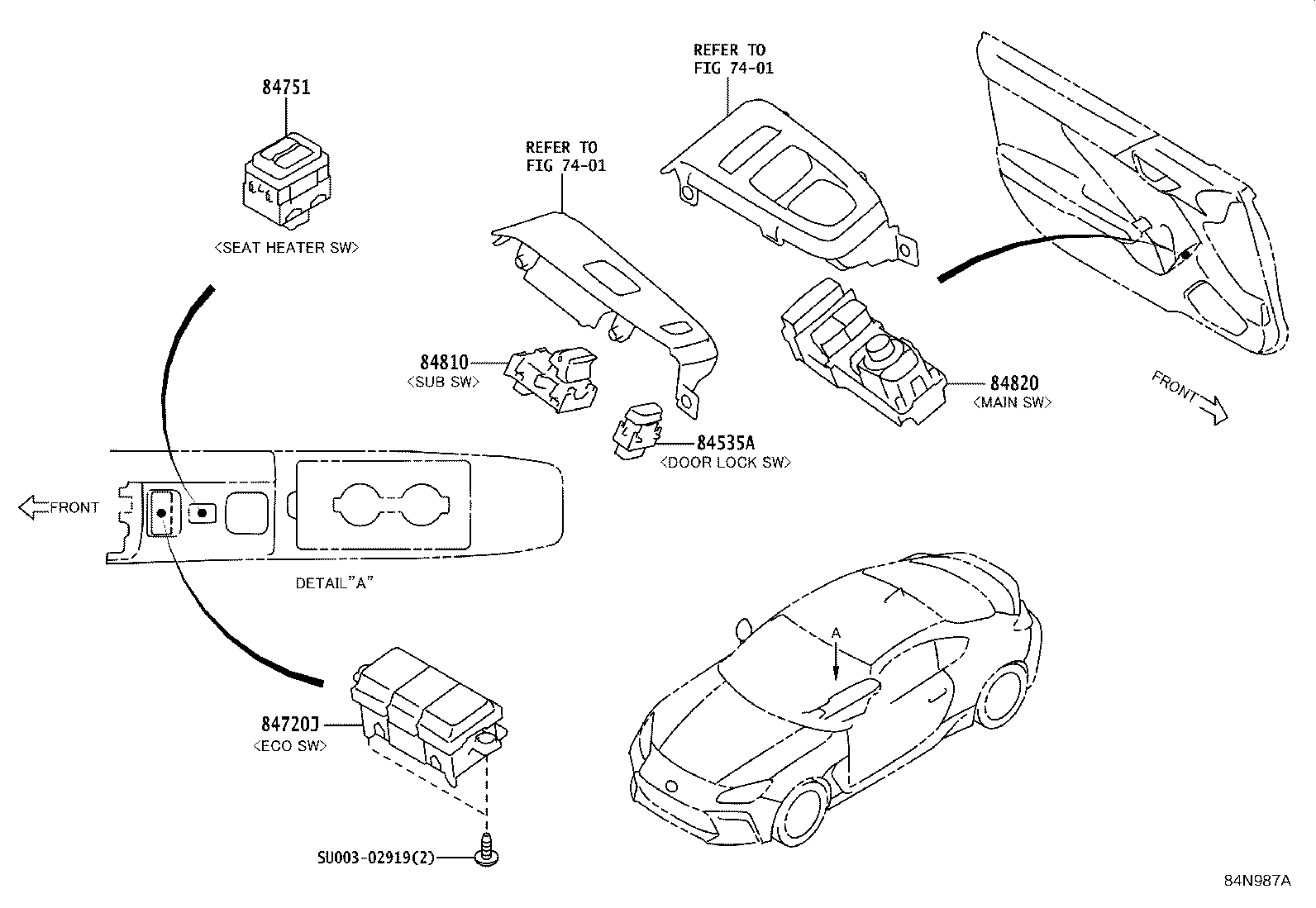

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84535A — Switch, Door Lock | ||||
| SU003-10005 |
Switch, Door Lock
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-10005 |
Switch, Door Lock
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-10005 |
Switch, Door Lock
2024-09 → —
|
ZN8 D | — | |
| SU003-10005 |
Switch, Door Lock
2023-12 → —
|
ZN8 C | — | |
| 84720J — Switch Assy, Pattern Select | ||||
| SU003-09343 |
Switch Assy, Pattern Select
2021-10 → 2022-06
ended
|
ZN8 6F | — | |
| SU003-09343 |
Switch Assy, Pattern Select
2022-06 → 2023-12
ended
|
ZN8 6F (BASE,HIGH) B | — | |
| SU003-09343 |
Switch Assy, Pattern Select
2023-12 → —
|
ZN8 6F (BASE,HIGH) C | — | |
| SU003-09343 |
Switch Assy, Pattern Select
2024-09 → —
|
ZN8 6F (BASE,HIGH) D | — | |
| SU003-09344 |
Switch Assy, Pattern Select
2021-10 → 2022-06
ended
|
ZN8 6FC | — | |
| SU003-09344 |
Switch Assy, Pattern Select
2022-06 → 2023-12
ended
|
ZN8 6FC (BASE,BASE2,HIGH,HIGH2) B | — | |
| SU003-09344 |
Switch Assy, Pattern Select
2023-12 → —
|
ZN8 6FC (BASE,HIGH) C | — | |
| SU003-09344 |
Switch Assy, Pattern Select
2024-09 → —
|
ZN8 6FC (BASE,HIGH) D | — | |
| SU003-11018 |
Switch Assy, Pattern Select
2022-06 → 2023-12
ended
|
ZN8 6F ORA | — | |
| SU003-11018 |
Switch Assy, Pattern Select
2023-12 → —
|
ZN8 6F ORB | — | |
| SU003-11018 |
Switch Assy, Pattern Select
2024-09 → —
|
ZN8 6F GRA | — | |
| SU003-11019 |
Switch Assy, Pattern Select
2023-12 → —
|
ZN8 6FC ORB | — | |
| SU003-11019 |
Switch Assy, Pattern Select
2024-09 → —
|
ZN8 6FC GRA | — | |
| SU003-11019 |
Switch Assy, Pattern Select
2022-06 → 2023-12
ended
|
ZN8 6FC ORA | — | |
| 84751 — Switch, Seat Heater | ||||
| SU003-08496 |
Switch, Seat Heater
2021-10 → 2022-06
ended
|
ZN8 HIGH,HIGH2 | — | |
| SU003-08496 |
Switch, Seat Heater
2022-06 → 2023-12
ended
|
ZN8 (HIGH,HIGH2,ORA) B | — | |
| SU003-08496 |
Switch, Seat Heater
2023-12 → —
|
ZN8 C | — | |
| SU003-08496 |
Switch, Seat Heater
2024-09 → —
|
ZN8 D | — | |
| 84810 — Switch Assy, Power Window Regulator | ||||
| SU003-09335 |
Switch Assy, Power Window Regulator
2024-09 → —
|
ZN8 D | — | |
| SU003-09335 |
Switch Assy, Power Window Regulator
2023-12 → —
|
ZN8 C | — | |
| SU003-09335 |
Switch Assy, Power Window Regulator
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-09335 |
Switch Assy, Power Window Regulator
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| 84820 — Master Switch Assy, Power Window Regulator | ||||
| SU003-10003 |
Master Switch Assy, Power Window Regulator
2021-10 → 2022-06
ended
|
ZN8 6FC (BASE,HIGH) | — | |
| SU003-10003 note |
Master Switch Assy, Power Window Regulator
2021-10 → 2022-06
ended
|
ZN8 6F | — | |
| SU003-10003 |
Master Switch Assy, Power Window Regulator
2022-06 → 2023-12
ended
|
ZN8 6FC (BASE,HIGH) B | — | |
| SU003-10003 note |
Master Switch Assy, Power Window Regulator
2022-06 → 2023-12
ended
|
ZN8 6F (BASE,HIGH) B | — | |
| SU003-10003 note |
Master Switch Assy, Power Window Regulator
2024-09 → —
|
ZN8 6F (BASE,HIGH) D | — | |
| SU003-10003 note |
Master Switch Assy, Power Window Regulator
2023-12 → —
|
ZN8 6F (BASE,HIGH) C | — | |
| SU003-10004 note |
Master Switch Assy, Power Window Regulator
2024-09 → —
|
ZN8 6F (BASE,HIGH) D | — | |
| SU003-10004 note |
Master Switch Assy, Power Window Regulator
2024-09 → —
|
ZN8 6F (BASE,HIGH) D | — | |
| SU003-10004 note |
Master Switch Assy, Power Window Regulator
2024-09 → —
|
ZN8 6F (BASE,HIGH) D | — | |
| SU003-10004 |
Master Switch Assy, Power Window Regulator
2024-09 → —
|
ZN8 GRA;ZN8 6FC (BASE,HIGH) +1 | — | |
| SU003-10004 note |
Master Switch Assy, Power Window Regulator
2023-12 → —
|
ZN8 6F (BASE,HIGH) C | — | |
| SU003-10004 note |
Master Switch Assy, Power Window Regulator
2023-12 → —
|
ZN8 6F (BASE,HIGH) C | — | |
| SU003-10004 note |
Master Switch Assy, Power Window Regulator
2023-12 → —
|
ZN8 6F (BASE,HIGH) C | — | |
| SU003-10004 |
Master Switch Assy, Power Window Regulator
2023-12 → —
|
ZN8 6FC C;ZN8 6F +1 | — | |
| SU003-10004 note |
Master Switch Assy, Power Window Regulator
2022-06 → 2023-12
ended
|
ZN8 6F (BASE,HIGH) B | — | |
| SU003-10004 note |
Master Switch Assy, Power Window Regulator
2022-06 → 2023-12
ended
|
ZN8 6F (BASE,HIGH) B | — | |
| SU003-10004 note |
Master Switch Assy, Power Window Regulator
2022-06 → 2023-12
ended
|
ZN8 6F (BASE,HIGH) B | — | |
| SU003-10004 |
Master Switch Assy, Power Window Regulator
2022-06 → 2023-12
ended
|
ZN8 (BASE2,HIGH2,ORA) B | — | |
| SU003-10004 note |
Master Switch Assy, Power Window Regulator
2021-10 → 2022-06
ended
|
ZN8 6F | — | |
| SU003-10004 note |
Master Switch Assy, Power Window Regulator
2021-10 → 2022-06
ended
|
ZN8 6F | — | |
| SU003-10004 note |
Master Switch Assy, Power Window Regulator
2021-10 → 2022-06
ended
|
ZN8 6F | — | |
| SU003-10004 |
Master Switch Assy, Power Window Regulator
2021-10 → 2022-06
ended
|
ZN8 BASE2,HIGH2 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
