Toyota GR 86
2021-11 → present · chassis ZN8 · catalogue 264430 · United States
Supported model
Data version 2024-10

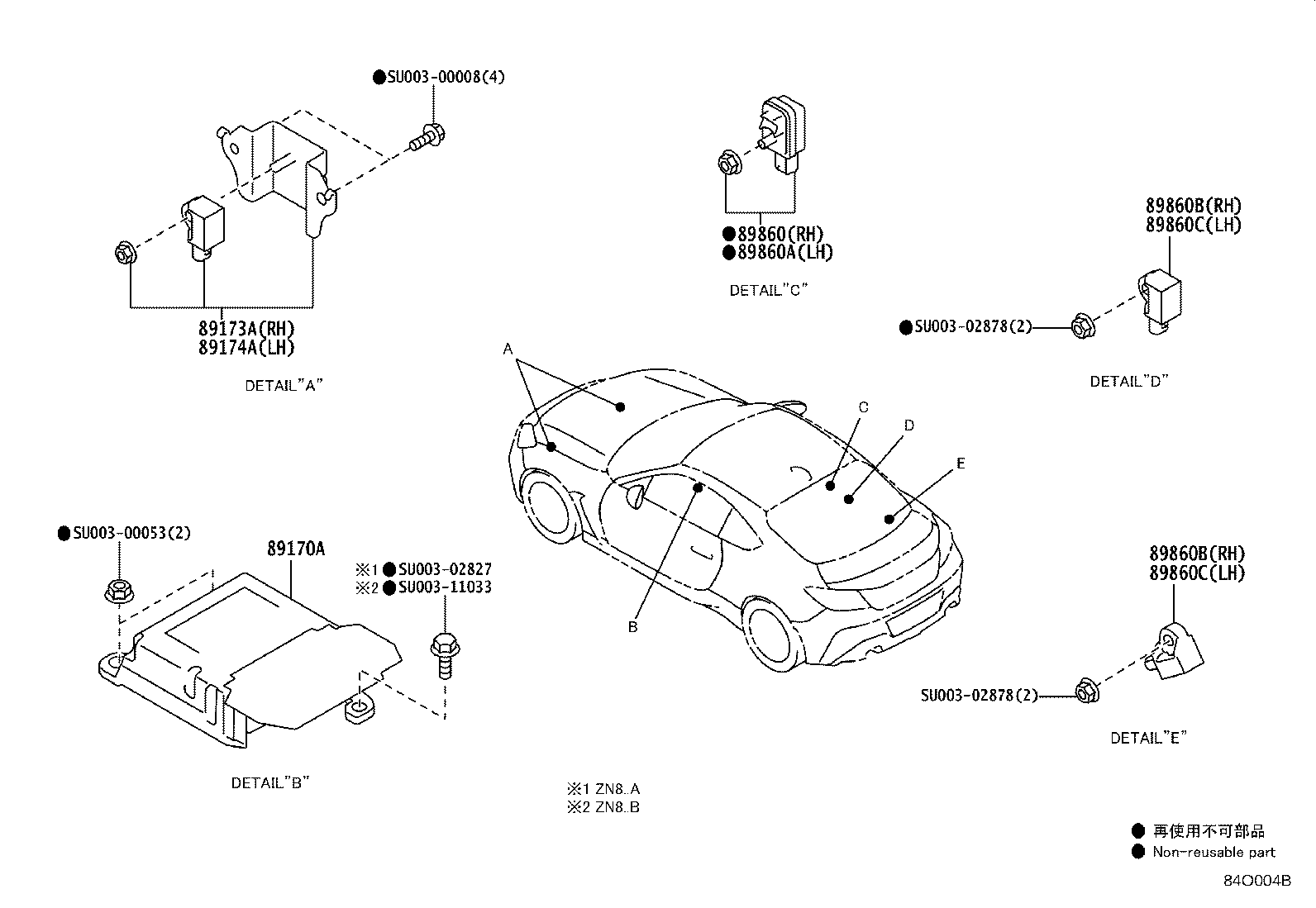

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 89170A — Computer Assy, Airbag | ||||
| SU003-10047 note |
Computer Assy, Airbag
2021-10 → 2022-06
ended
|
ZN8 6F | — | |
| SU003-10047 |
Computer Assy, Airbag
2021-10 → 2022-06
ended
|
ZN8 BASE2,HIGH2 | — | |
| SU003-10047 note |
Computer Assy, Airbag
2022-06 → 2022-09
ended
|
ZN8 6F B | — | |
| SU003-10047 note |
Computer Assy, Airbag
2022-06 → 2022-09
ended
|
ZN8 6F B | — | |
| SU003-10047 note |
Computer Assy, Airbag
2022-06 → 2022-09
ended
|
ZN8 6F B | — | |
| SU003-10047 |
Computer Assy, Airbag
2022-06 → 2022-09
ended
|
ZN8 (BASE2,HIGH2) B | — | |
| SU003-10047 note |
Computer Assy, Airbag
2021-10 → 2022-06
ended
|
ZN8 6F | — | |
| SU003-10047 note |
Computer Assy, Airbag
2021-10 → 2022-06
ended
|
ZN8 6F | — | |
| SU003-10048 |
Computer Assy, Airbag
2021-10 → 2022-06
ended
|
ZN8 6FC (BASE,HIGH) | — | |
| SU003-10048 |
Computer Assy, Airbag
2022-06 → 2022-09
ended
|
ZN8 6FC (BASE,HIGH) B | — | |
| SU003-10048 note |
Computer Assy, Airbag
2022-06 → 2022-09
ended
|
ZN8 6F B | — | |
| SU003-10048 note |
Computer Assy, Airbag
2021-10 → 2022-06
ended
|
ZN8 6F | — | |
| SU003-11253 |
Computer Assy, Airbag
2022-09 → 2023-12
ended
|
ZN8 (BASE2,HIGH2,ORA) B | — | |
| SU003-11253 note |
Computer Assy, Airbag
2022-09 → 2023-12
ended
|
ZN8 6F (BASE,HIGH) B | — | |
| SU003-11253 note |
Computer Assy, Airbag
2022-09 → 2023-12
ended
|
ZN8 6F (BASE,HIGH) B | — | |
| SU003-11253 note |
Computer Assy, Airbag
2022-09 → 2023-12
ended
|
ZN8 6F (BASE,HIGH) B | — | |
| SU003-11256 note |
Computer Assy, Airbag
2022-09 → 2023-12
ended
|
ZN8 6F (BASE,HIGH) B | — | |
| SU003-11256 note |
Computer Assy, Airbag
2024-09 → —
|
ZN8 6F (BASE,HIGH) D | — | |
| SU003-11256 note |
Computer Assy, Airbag
2023-12 → —
|
ZN8 6F (BASE,HIGH) C | — | |
| SU003-11256 |
Computer Assy, Airbag
2022-09 → 2023-12
ended
|
ZN8 6FC (BASE,HIGH) B | — | |
| SU003-11717 |
Computer Assy, Airbag
2023-12 → —
|
ZN8 6FC C;ZN8 6F +1 | — | |
| SU003-11717 note |
Computer Assy, Airbag
2023-12 → —
|
ZN8 6F (BASE,HIGH) C | — | |
| SU003-11717 note |
Computer Assy, Airbag
2023-12 → —
|
ZN8 6F (BASE,HIGH) C | — | |
| SU003-11717 note |
Computer Assy, Airbag
2023-12 → —
|
ZN8 6F (BASE,HIGH) C | — | |
| SU003-11717 |
Computer Assy, Airbag
2024-09 → —
|
ZN8 GRA;ZN8 6FC (BASE,HIGH) +1 | — | |
| SU003-11717 note |
Computer Assy, Airbag
2024-09 → —
|
ZN8 6F (BASE,HIGH) D | — | |
| SU003-11717 note |
Computer Assy, Airbag
2024-09 → —
|
ZN8 6F (BASE,HIGH) D | — | |
| SU003-11717 note |
Computer Assy, Airbag
2024-09 → —
|
ZN8 6F (BASE,HIGH) D | — | |
| 89173A — Sensor, Airbag, Front RH | ||||
| SU003-08983 |
Sensor, Airbag, Front RH
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-08983 |
Sensor, Airbag, Front RH
2022-06 → 2022-09
ended
|
ZN8 B | — | |
| SU003-11257 |
Sensor, Airbag, Front RH
2022-09 → 2023-12
ended
|
ZN8 B | — | |
| SU003-11257 |
Sensor, Airbag, Front RH
2023-12 → —
|
ZN8 C | — | |
| SU003-11257 |
Sensor, Airbag, Front RH
2024-09 → —
|
ZN8 D | — | |
| 89174A — Sensor, Airbag, Front LH | ||||
| SU003-08983 |
Sensor, Airbag, Front LH
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-08983 |
Sensor, Airbag, Front LH
2022-06 → 2022-09
ended
|
ZN8 B | — | |
| SU003-11257 |
Sensor, Airbag, Front LH
2022-09 → 2023-12
ended
|
ZN8 B | — | |
| SU003-11257 |
Sensor, Airbag, Front LH
2023-12 → —
|
ZN8 C | — | |
| SU003-11257 |
Sensor, Airbag, Front LH
2024-09 → —
|
ZN8 D | — | |
| 89860 — Sensor Assy, Side Airbag, RH | ||||
| SU003-08580 |
Sensor Assy, Side Airbag, RH
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-08580 |
Sensor Assy, Side Airbag, RH
2022-06 → 2022-07
ended
|
ZN8 B | — | |
| SU003-11189 |
Sensor Assy, Side Airbag, RH
2024-09 → —
|
ZN8 D | — | |
| SU003-11189 |
Sensor Assy, Side Airbag, RH
2023-12 → —
|
ZN8 C | — | |
| SU003-11189 |
Sensor Assy, Side Airbag, RH
2022-07 → 2023-12
ended
|
ZN8 B | — | |
| 89860A — Sensor Assy, Side Airbag, LH | ||||
| SU003-08580 |
Sensor Assy, Side Airbag, LH
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-08580 |
Sensor Assy, Side Airbag, LH
2022-06 → 2022-07
ended
|
ZN8 B | — | |
| SU003-11189 |
Sensor Assy, Side Airbag, LH
2022-07 → 2023-12
ended
|
ZN8 B | — | |
| SU003-11189 |
Sensor Assy, Side Airbag, LH
2023-12 → —
|
ZN8 C | — | |
| SU003-11189 |
Sensor Assy, Side Airbag, LH
2024-09 → —
|
ZN8 D | — | |
| 89860B — Sensor Assy, Side Airbag, RH, NO.2 | ||||
| SU003-08579 |
Sensor Assy, Side Airbag, RH, NO.2
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-08579 |
Sensor Assy, Side Airbag, RH, NO.2
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-08579 |
Sensor Assy, Side Airbag, RH, NO.2
2023-12 → —
|
ZN8 C | — | |
| SU003-08579 |
Sensor Assy, Side Airbag, RH, NO.2
2024-09 → —
|
ZN8 D | — | |
| 89860C — Sensor Assy, Side Airbag, LH, NO.2 | ||||
| SU003-08579 |
Sensor Assy, Side Airbag, LH, NO.2
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-08579 |
Sensor Assy, Side Airbag, LH, NO.2
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-08579 |
Sensor Assy, Side Airbag, LH, NO.2
2023-12 → —
|
ZN8 C | — | |
| SU003-08579 |
Sensor Assy, Side Airbag, LH, NO.2
2024-09 → —
|
ZN8 D | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
