Toyota GR 86
2021-11 → present · chassis ZN8 · catalogue 264430 · United States
Supported model
Data version 2024-10

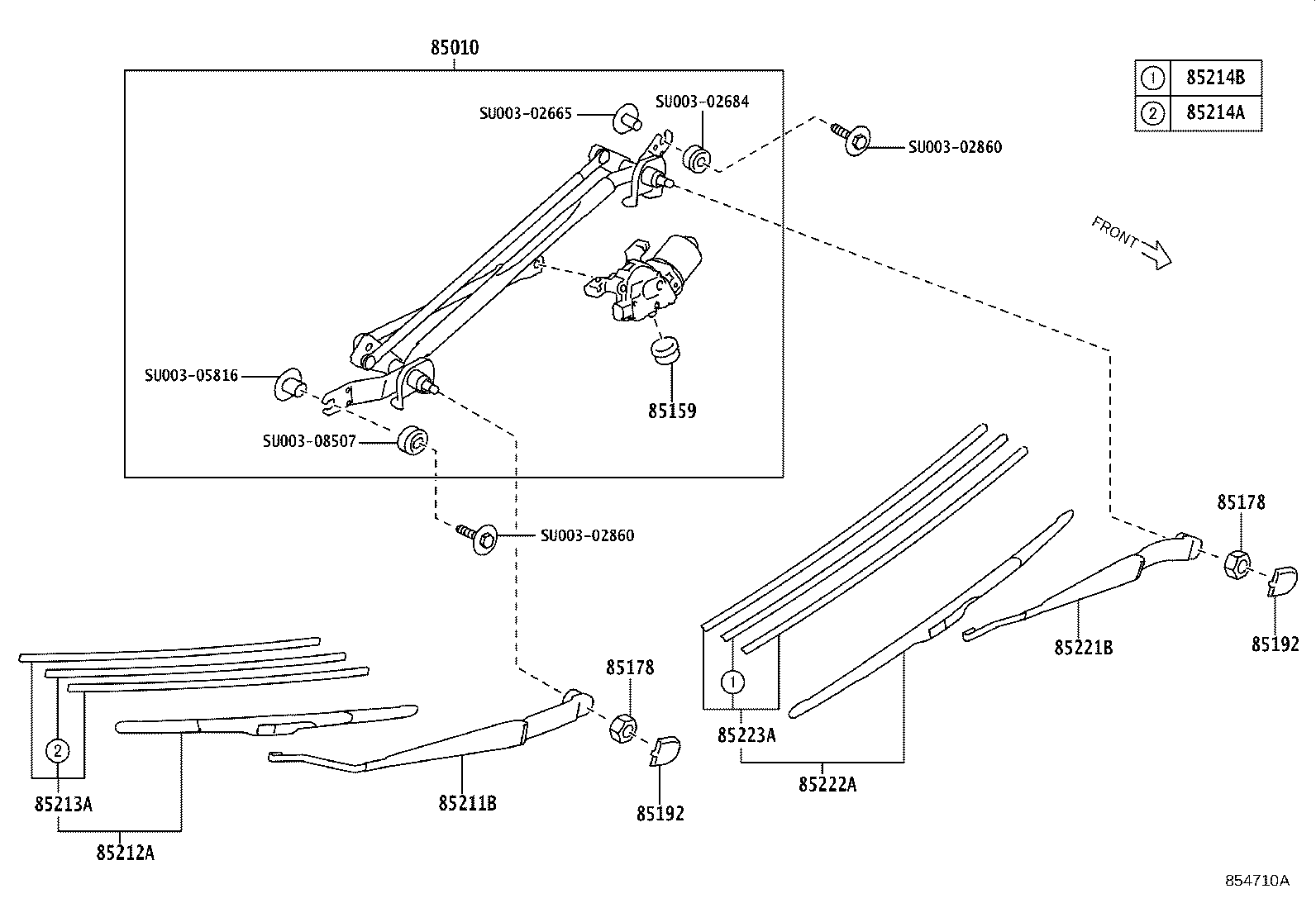

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 85010 — Motor & Link Assy, FR Wiper | ||||
| SU003-10020 |
Motor & Link Assy, FR Wiper
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-10020 |
Motor & Link Assy, FR Wiper
2023-12 → —
|
ZN8 C | — | |
| SU003-10020 |
Motor & Link Assy, FR Wiper
2024-09 → —
|
ZN8 D | — | |
| SU003-10020 |
Motor & Link Assy, FR Wiper
2021-10 → 2022-06
ended
|
ZN8 | — | |
| 85159 — Cushion, Windshield Wiper Motor | ||||
| SU003-02686 |
Cushion, Windshield Wiper Motor
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-02686 |
Cushion, Windshield Wiper Motor
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-02686 |
Cushion, Windshield Wiper Motor
2023-12 → —
|
ZN8 C | — | |
| SU003-02686 |
Cushion, Windshield Wiper Motor
2024-09 → —
|
ZN8 D | — | |
| 85178 — Nut (FOR FRONT WIPER ARM SETTING) | ||||
| SU003-04731 |
Nut (FOR FRONT WIPER ARM SETTING)
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-04731 |
Nut (FOR FRONT WIPER ARM SETTING)
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-04731 |
Nut (FOR FRONT WIPER ARM SETTING)
2023-12 → —
|
ZN8 C | — | |
| SU003-04731 |
Nut (FOR FRONT WIPER ARM SETTING)
2024-09 → —
|
ZN8 D | — | |
| 85192 — Cover, Windshield Wiper Arm | ||||
| SU003-02675 |
Cover, Windshield Wiper Arm
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-02675 |
Cover, Windshield Wiper Arm
2024-09 → —
|
ZN8 D | — | |
| SU003-02675 |
Cover, Windshield Wiper Arm
2023-12 → —
|
ZN8 C | — | |
| SU003-02675 |
Cover, Windshield Wiper Arm
2021-10 → 2022-06
ended
|
ZN8 | — | |
| 85211B — Arm, Front Wiper, RH | ||||
| SU003-10021 |
Arm, Front Wiper, RH
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-10021 |
Arm, Front Wiper, RH
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-10021 |
Arm, Front Wiper, RH
2023-12 → —
|
ZN8 C | — | |
| SU003-10021 |
Arm, Front Wiper, RH
2024-09 → —
|
ZN8 D | — | |
| 85212A — Blade, FR Wiper, RH | ||||
| SU003-10023 |
Blade, FR Wiper, RH
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-10023 |
Blade, FR Wiper, RH
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-10023 |
Blade, FR Wiper, RH
2023-12 → —
|
ZN8 C | — | |
| SU003-10023 |
Blade, FR Wiper, RH
2024-09 → —
|
ZN8 D | — | |
| 85213A — Rubber, Wiper Blade, RH | ||||
| SU003-09466 |
Rubber, Wiper Blade, RH
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-09466 |
Rubber, Wiper Blade, RH
2024-09 → —
|
ZN8 D | — | |
| SU003-09466 |
Rubber, Wiper Blade, RH
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-09466 |
Rubber, Wiper Blade, RH
2023-12 → —
|
ZN8 C | — | |
| 85214A — Rubber, Wiper, RH | ||||
| SU003-09467 |
Rubber, Wiper, RH
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-09467 |
Rubber, Wiper, RH
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-09467 |
Rubber, Wiper, RH
2023-12 → —
|
ZN8 C | — | |
| SU003-09467 |
Rubber, Wiper, RH
2024-09 → —
|
ZN8 D | — | |
| 85214B — Rubber, Wiper, LH | ||||
| SU003-04215 |
Rubber, Wiper, LH
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-04215 |
Rubber, Wiper, LH
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-04215 |
Rubber, Wiper, LH
2023-12 → —
|
ZN8 C | — | |
| SU003-04215 |
Rubber, Wiper, LH
2024-09 → —
|
ZN8 D | — | |
| 85221B — Arm, Front Wiper, LH | ||||
| SU003-02670 |
Arm, Front Wiper, LH
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-02670 |
Arm, Front Wiper, LH
2024-09 → —
|
ZN8 D | — | |
| SU003-02670 |
Arm, Front Wiper, LH
2023-12 → —
|
ZN8 C | — | |
| SU003-02670 |
Arm, Front Wiper, LH
2021-10 → 2022-06
ended
|
ZN8 | — | |
| 85222A — Blade, FR Wiper, LH | ||||
| SU003-10022 |
Blade, FR Wiper, LH
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-10022 |
Blade, FR Wiper, LH
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-10022 |
Blade, FR Wiper, LH
2023-12 → —
|
ZN8 C | — | |
| SU003-10022 |
Blade, FR Wiper, LH
2024-09 → —
|
ZN8 D | — | |
| 85223A — Rubber, Front Wiper Blade, LH | ||||
| SU003-09465 |
Rubber, Front Wiper Blade, LH
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-09465 |
Rubber, Front Wiper Blade, LH
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-09465 |
Rubber, Front Wiper Blade, LH
2023-12 → —
|
ZN8 C | — | |
| SU003-09465 |
Rubber, Front Wiper Blade, LH
2024-09 → —
|
ZN8 D | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
