Toyota GR 86

2021-11 → present · chassis ZN8 · catalogue 264430 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

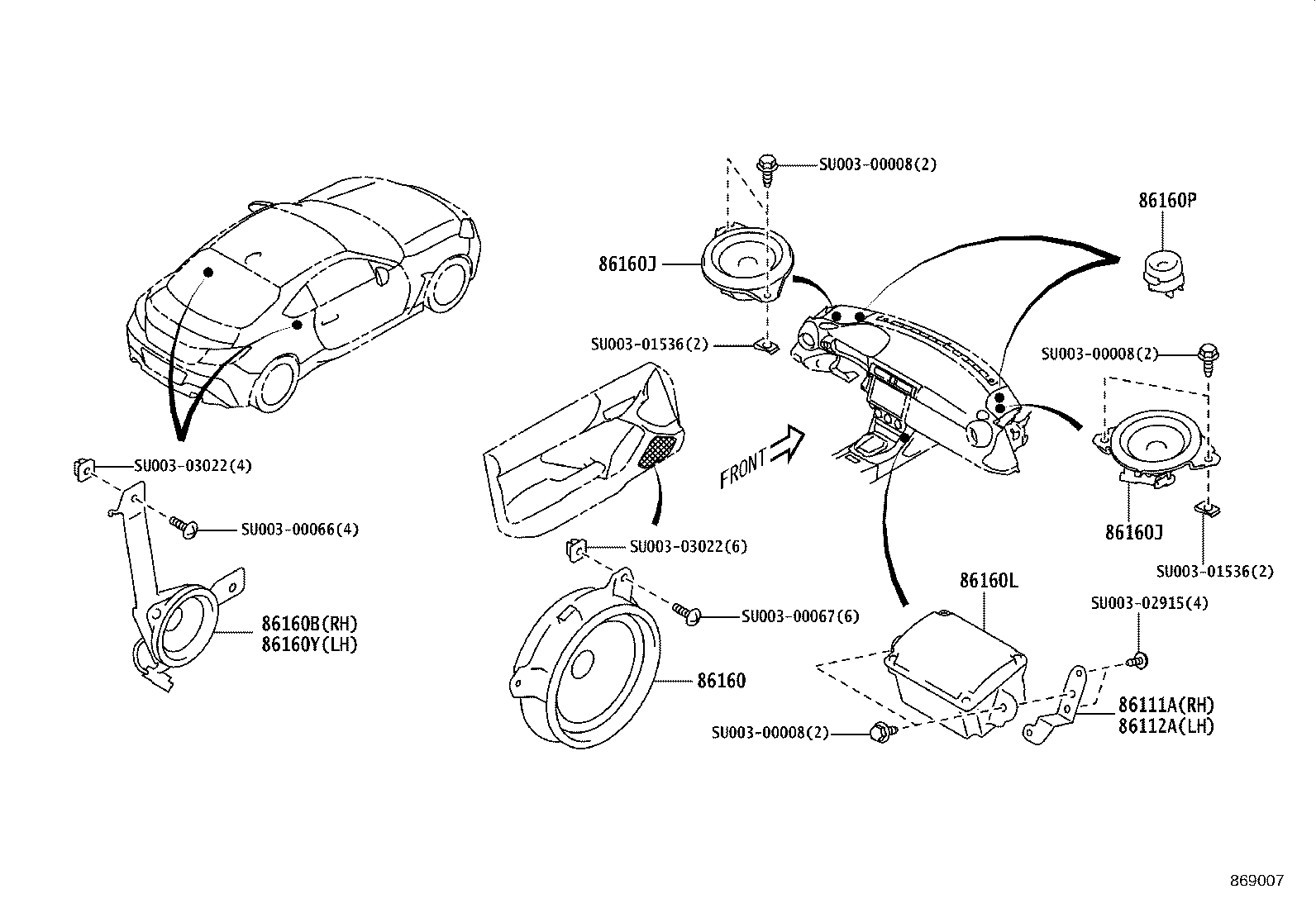

Exploded illustration 869007 86160B — SPEAKER ASSY, REAR (8 parts) 86160Y — SPEAKER ASSY, REAR NO.2 (8 parts) 86160 — SPEAKER ASSY, FRONT NO.1 (8 parts) 86111A — BRACKET, STEREO SPEAKER, RH (4 parts) 86112A — BRACKET, STEREO SPEAKER, LH (4 parts) SU00300066 — not listed in this catalogue SU00300008 — not listed in this catalogue SU00300008 — not listed in this catalogue SU00301536 — not listed in this catalogue SU00303022 — not listed in this catalogue SU00300067 — not listed in this catalogue SU00302915 — not listed in this catalogue SU00301536 — not listed in this catalogue SU00300008 — not listed in this catalogue SU00303022 — not listed in this catalogue 86160L — SPEAKER ASSY, FRONT NO.4 (4 parts) 86160J — SPEAKER ASSY, FRONT NO.3 (8 parts) 86160J — SPEAKER ASSY, FRONT NO.3 (8 parts) 86160P — SPEAKER ASSY, FRONT NO.2 (8 parts)
869007 · 9 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
52 parts on this figure
Part number Description Fitment Price
86111A — Bracket, Stereo Speaker, RH
SU003-08719 Bracket, Stereo Speaker, RH
2022-06 → 2023-12 ended
ZN8 B —
SU003-08719 Bracket, Stereo Speaker, RH
2021-10 → 2022-06 ended
ZN8 —
SU003-08719 Bracket, Stereo Speaker, RH
2024-09 → —
ZN8 D —
SU003-08719 Bracket, Stereo Speaker, RH
2023-12 → —
ZN8 C —
86112A — Bracket, Stereo Speaker, LH
SU003-08720 Bracket, Stereo Speaker, LH
2021-10 → 2022-06 ended
ZN8 —
SU003-08720 Bracket, Stereo Speaker, LH
2022-06 → 2023-12 ended
ZN8 B —
SU003-08720 Bracket, Stereo Speaker, LH
2023-12 → —
ZN8 C —
SU003-08720 Bracket, Stereo Speaker, LH
2024-09 → —
ZN8 D —
86160 — Speaker Assy, Front NO.1
SU003-02646 Speaker Assy, Front NO.1
2021-10 → 2022-06 ended
ZN8 HIGH,HIGH2 —
SU003-02646 Speaker Assy, Front NO.1
2022-06 → 2023-12 ended
ZN8 (HIGH,HIGH2,ORA) B —
SU003-02646 Speaker Assy, Front NO.1
2024-09 → —
ZN8 (GRA,HIGH) D —
SU003-02646 Speaker Assy, Front NO.1
2023-12 → —
ZN8 (HIGH,ORB) C —
SU003-07987 Speaker Assy, Front NO.1
2024-09 → —
ZN8 BASE D —
SU003-07987 Speaker Assy, Front NO.1
2023-12 → —
ZN8 BASE C —
SU003-07987 Speaker Assy, Front NO.1
2022-06 → 2023-12 ended
ZN8 (BASE,BASE2) B —
SU003-07987 Speaker Assy, Front NO.1
2021-10 → 2022-06 ended
ZN8 BASE,BASE2 —
86160B — Speaker Assy, Rear
SU003-02643 Speaker Assy, Rear
2021-10 → 2022-06 ended
ZN8 BASE,BASE2 —
SU003-02643 Speaker Assy, Rear
2022-06 → 2023-12 ended
ZN8 (BASE,BASE2) B —
SU003-02643 Speaker Assy, Rear
2023-12 → —
ZN8 BASE C —
SU003-02643 Speaker Assy, Rear
2024-09 → —
ZN8 BASE D —
SU003-02647 Speaker Assy, Rear
2021-10 → 2022-06 ended
ZN8 HIGH,HIGH2 —
SU003-02647 Speaker Assy, Rear
2022-06 → 2023-12 ended
ZN8 (HIGH,HIGH2,ORA) B —
SU003-02647 Speaker Assy, Rear
2023-12 → —
ZN8 (HIGH,ORB) C —
SU003-02647 Speaker Assy, Rear
2024-09 → —
ZN8 (GRA,HIGH) D —
86160J — Speaker Assy, Front NO.3
SU003-02650 note Speaker Assy, Front NO.3
2024-09 → —
ZN8 (GRA,HIGH) D —
SU003-02650 note Speaker Assy, Front NO.3
2023-12 → —
ZN8 (HIGH,ORB) C —
SU003-02650 note Speaker Assy, Front NO.3
2022-06 → 2023-12 ended
ZN8 (HIGH,HIGH2,ORA) B —
SU003-02650 note Speaker Assy, Front NO.3
2021-10 → 2022-06 ended
ZN8 HIGH,HIGH2 —
SU003-02651 note Speaker Assy, Front NO.3
2021-10 → 2022-06 ended
ZN8 HIGH,HIGH2 —
SU003-02651 note Speaker Assy, Front NO.3
2023-12 → —
ZN8 (HIGH,ORB) C —
SU003-02651 note Speaker Assy, Front NO.3
2024-09 → —
ZN8 (GRA,HIGH) D —
SU003-02651 note Speaker Assy, Front NO.3
2022-06 → 2023-12 ended
ZN8 (HIGH,HIGH2,ORA) B —
86160L — Speaker Assy, Front NO.4
SU003-09348 Speaker Assy, Front NO.4
2021-10 → 2022-06 ended
ZN8 —
SU003-09348 Speaker Assy, Front NO.4
2022-06 → 2023-12 ended
ZN8 B —
SU003-09348 Speaker Assy, Front NO.4
2023-12 → —
ZN8 C —
SU003-09348 Speaker Assy, Front NO.4
2024-09 → —
ZN8 D —
86160P — Speaker Assy, Front NO.2
SU003-02645 Speaker Assy, Front NO.2
2021-10 → 2022-06 ended
ZN8 BASE,BASE2 —
SU003-02645 Speaker Assy, Front NO.2
2022-06 → 2023-12 ended
ZN8 (BASE,BASE2) B —
SU003-02645 Speaker Assy, Front NO.2
2023-12 → —
ZN8 BASE C —
SU003-02645 Speaker Assy, Front NO.2
2024-09 → —
ZN8 BASE D —
SU003-02649 Speaker Assy, Front NO.2
2022-06 → 2023-12 ended
ZN8 (HIGH,HIGH2,ORA) B —
SU003-02649 Speaker Assy, Front NO.2
2024-09 → —
ZN8 (GRA,HIGH) D —
SU003-02649 Speaker Assy, Front NO.2
2023-12 → —
ZN8 (HIGH,ORB) C —
SU003-02649 Speaker Assy, Front NO.2
2021-10 → 2022-06 ended
ZN8 HIGH,HIGH2 —
86160Y — Speaker Assy, Rear NO.2
SU003-02644 Speaker Assy, Rear NO.2
2021-10 → 2022-06 ended
ZN8 BASE,BASE2 —
SU003-02644 Speaker Assy, Rear NO.2
2022-06 → 2023-12 ended
ZN8 (BASE,BASE2) B —
SU003-02644 Speaker Assy, Rear NO.2
2023-12 → —
ZN8 BASE C —
SU003-02644 Speaker Assy, Rear NO.2
2024-09 → —
ZN8 BASE D —
SU003-02648 Speaker Assy, Rear NO.2
2021-10 → 2022-06 ended
ZN8 HIGH,HIGH2 —
SU003-02648 Speaker Assy, Rear NO.2
2022-06 → 2023-12 ended
ZN8 (HIGH,HIGH2,ORA) B —
SU003-02648 Speaker Assy, Rear NO.2
2023-12 → —
ZN8 (HIGH,ORB) C —
SU003-02648 Speaker Assy, Rear NO.2
2024-09 → —
ZN8 (GRA,HIGH) D —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
