Toyota GR 86

2021-11 → present · chassis ZN8 · catalogue 264430 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

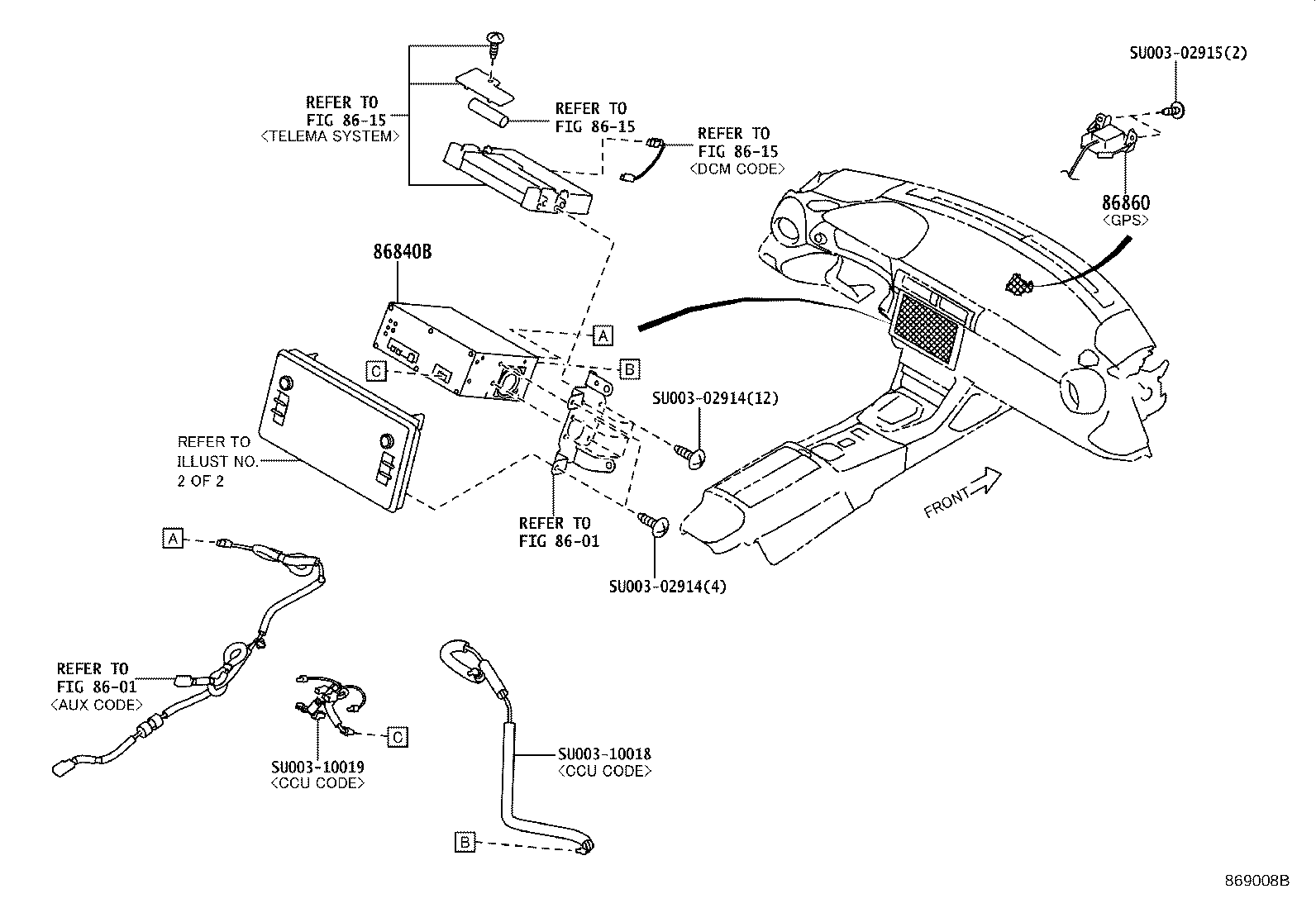

Exploded illustration 869008B 8601 — not listed in this catalogue 8601 — not listed in this catalogue 86840B — COMPUTER ASSY, NAVIGATION (18 parts) 86860 — ANTENNA ASSY, NAVIGATION (4 parts) SU00310019 — not listed in this catalogue SU00310018 — not listed in this catalogue SU00302914 — not listed in this catalogue SU00302914 — not listed in this catalogue SU00302915 — not listed in this catalogue 8615 — not listed in this catalogue 8615 — not listed in this catalogue 8615 — not listed in this catalogue
869008B · 2 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
22 parts on this figure
Part number Description Fitment Price
86840B — Computer Assy, Navigation
SU003-09640 note Computer Assy, Navigation
2021-10 → 2022-06 ended
ZN8 6F —
SU003-09640 Computer Assy, Navigation
2021-10 → 2022-06 ended
ZN8 6FC (BASE,HIGH) —
SU003-09641 note Computer Assy, Navigation
2021-10 → 2022-06 ended
ZN8 6F;ZN8 BASE2,HIGH2 —
SU003-09641 note Computer Assy, Navigation
2021-10 → 2022-06 ended
ZN8 6F;ZN8 BASE2,HIGH2 —
SU003-09642 note Computer Assy, Navigation
2021-10 → 2022-06 ended
ZN8 6F;ZN8 BASE2,HIGH2 —
SU003-10967 Computer Assy, Navigation
2022-06 → 2023-12 ended
ZN8 6FC (BASE,HIGH) B —
SU003-10967 note Computer Assy, Navigation
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-10967 note Computer Assy, Navigation
2023-12 → —
ZN8 6F (BASE,HIGH) C —
SU003-10968 note Computer Assy, Navigation
2023-12 → —
ZN8 C —
SU003-10968 note Computer Assy, Navigation
2023-12 → —
ZN8 C —
SU003-10968 note Computer Assy, Navigation
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B;ZN8 +2 —
SU003-10968 note Computer Assy, Navigation
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B;ZN8 +2 —
SU003-10969 note Computer Assy, Navigation
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B;ZN8 +2 —
SU003-10969 note Computer Assy, Navigation
2023-12 → —
ZN8 C —
SU003-11915 note Computer Assy, Navigation
2024-09 → —
ZN8 6F (BASE,HIGH) D —
SU003-12140 note Computer Assy, Navigation
2024-09 → —
ZN8 D —
SU003-12140 note Computer Assy, Navigation
2024-09 → —
ZN8 D —
SU003-12141 note Computer Assy, Navigation
2024-09 → —
ZN8 D —
86860 — Antenna Assy, Navigation
SU003-09654 Antenna Assy, Navigation
2021-10 → 2022-06 ended
ZN8 6F;ZN8 BASE2,HIGH2 —
SU003-09654 Antenna Assy, Navigation
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B;ZN8 +2 —
SU003-09654 Antenna Assy, Navigation
2023-12 → —
ZN8 C —
SU003-09654 Antenna Assy, Navigation
2024-09 → —
ZN8 D —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
