Toyota GR 86
2021-11 → present · chassis ZN8 · catalogue 264430 · United States
Supported model
Data version 2024-10

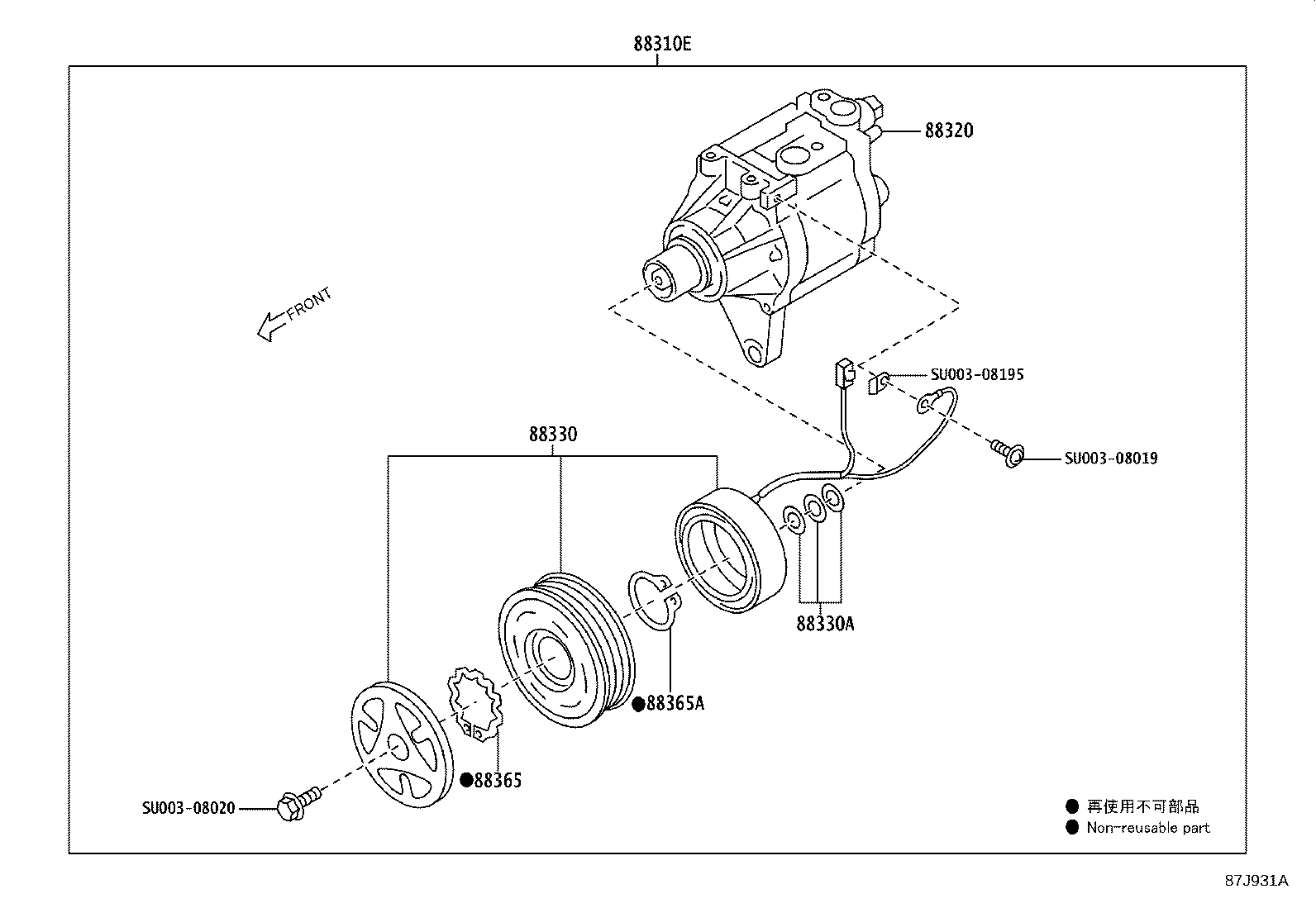

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88310E — Compressor, W/Magnet Clutch | ||||
| SU003-08914 |
Compressor, W/Magnet Clutch
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-08914 |
Compressor, W/Magnet Clutch
2023-12 → —
|
ZN8 C | — | |
| SU003-08914 |
Compressor, W/Magnet Clutch
2024-09 → —
|
ZN8 D | — | |
| SU003-08914 |
Compressor, W/Magnet Clutch
2021-10 → 2022-06
ended
|
ZN8 | — | |
| 88320 — Compressor Assy, Cooler | ||||
| SU003-09286 |
Compressor Assy, Cooler
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-09286 |
Compressor Assy, Cooler
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-09286 |
Compressor Assy, Cooler
2023-12 → —
|
ZN8 C | — | |
| SU003-09286 |
Compressor Assy, Cooler
2024-09 → —
|
ZN8 D | — | |
| 88330 — Clutch Assy, Magnet | ||||
| SU003-08194 |
Clutch Assy, Magnet
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-08194 |
Clutch Assy, Magnet
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-08194 |
Clutch Assy, Magnet
2023-12 → —
|
ZN8 C | — | |
| SU003-08194 |
Clutch Assy, Magnet
2024-09 → —
|
ZN8 D | — | |
| 88330A — Washer (FOR MAGNET CLUTCH) | ||||
| SU003-08196 |
Washer (FOR MAGNET CLUTCH)
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-08196 |
Washer (FOR MAGNET CLUTCH)
2024-09 → —
|
ZN8 D | — | |
| SU003-08196 |
Washer (FOR MAGNET CLUTCH)
2023-12 → —
|
ZN8 C | — | |
| SU003-08196 |
Washer (FOR MAGNET CLUTCH)
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| 88365 — Ring, Snap | ||||
| SU003-08024 |
Ring, Snap
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-08024 |
Ring, Snap
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-08024 |
Ring, Snap
2023-12 → —
|
ZN8 C | — | |
| SU003-08024 |
Ring, Snap
2024-09 → —
|
ZN8 D | — | |
| 88365A — Ring, Snap (FOR COMPRESSOR) | ||||
| SU003-08025 |
Ring, Snap (FOR COMPRESSOR)
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-08025 |
Ring, Snap (FOR COMPRESSOR)
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-08025 |
Ring, Snap (FOR COMPRESSOR)
2023-12 → —
|
ZN8 C | — | |
| SU003-08025 |
Ring, Snap (FOR COMPRESSOR)
2024-09 → —
|
ZN8 D | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
