Toyota GR 86

2021-11 → present · chassis ZN8 · catalogue 264430 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

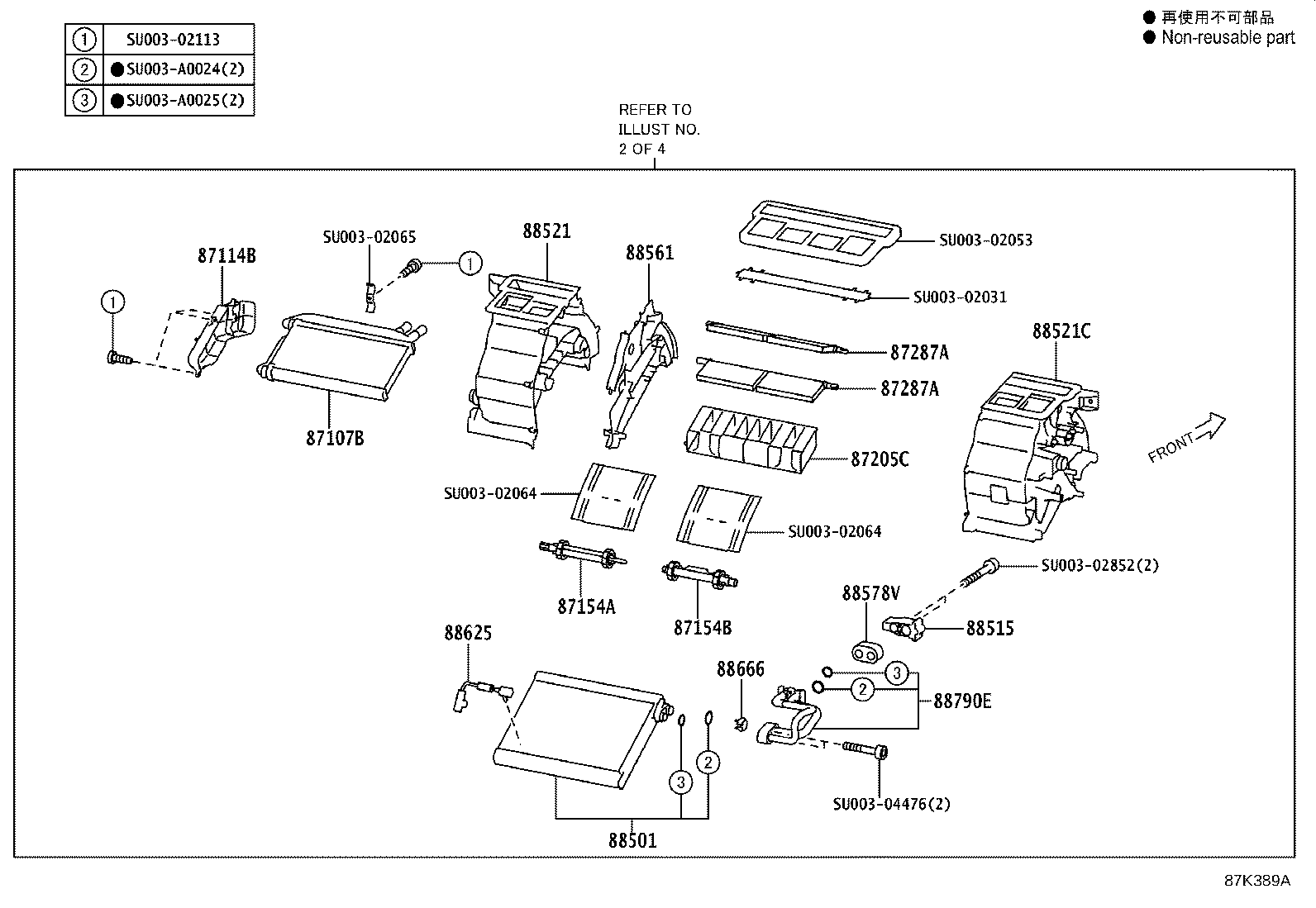

Exploded illustration 87K389A 88515 — VALVE, COOLER EXPANSION (4 parts) 88578V — PACKING, COOLING UNIT, NO.3 (4 parts) 87287A — DAMPER, HEATER AIR (4 parts) 87205C — GUIDE SUB-ASSY, AIR DUCT (4 parts) 88666 — SPACER (FOR COOLER UNIT) (4 parts) 88625 — THERMISTOR, COOLER, NO.1 (4 parts) 88561 — COVER, COOLER UNIT (4 parts) 87114B — COVER, HEATER (4 parts) 87107B — UNIT SUB-ASSY, HEATER RADIATOR (4 parts) 87154B — SHAFT, DAMPER, NO.2 (4 parts) 87154A — SHAFT, DAMPER, NO.1 (4 parts) 88790E — TUBE & ACCESSORY ASSY, AIRCONDITIONER (4 parts) 88501 — EVAPORATOR SUB-ASSY, COOLER, NO.1 (4 parts) 88521C — CASE, COOLING UNIT (4 parts) 88521 — CASE, COOLER UNIT (4 parts) SU00302852 — not listed in this catalogue SU00302031 — not listed in this catalogue SU00302053 — not listed in this catalogue SU00302064 — not listed in this catalogue SU00302064 — not listed in this catalogue SU00302065 — not listed in this catalogue SU00302113 — not listed in this catalogue SU003A0024 — not listed in this catalogue SU003A0025 — not listed in this catalogue SU00304476 — not listed in this catalogue 87287A — DAMPER, HEATER AIR (4 parts)
87K389A · 16 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
60 parts on this figure
Part number Description Fitment Price
87107B — Unit Sub-assy, Heater Radiator
SU003-02040 Unit Sub-assy, Heater Radiator
2022-06 → 2023-12 ended
ZN8 B —
SU003-02040 Unit Sub-assy, Heater Radiator
2021-10 → 2022-06 ended
ZN8 —
SU003-02040 Unit Sub-assy, Heater Radiator
2024-09 → —
ZN8 D —
SU003-02040 Unit Sub-assy, Heater Radiator
2023-12 → —
ZN8 C —
87114B — Cover, Heater
SU003-02033 Cover, Heater
2021-10 → 2022-06 ended
ZN8 —
SU003-02033 Cover, Heater
2022-06 → 2023-12 ended
ZN8 B —
SU003-02033 Cover, Heater
2023-12 → —
ZN8 C —
SU003-02033 Cover, Heater
2024-09 → —
ZN8 D —
87154A — Shaft, Damper, NO.1
SU003-02058 Shaft, Damper, NO.1
2021-10 → 2022-06 ended
ZN8 —
SU003-02058 Shaft, Damper, NO.1
2022-06 → 2023-12 ended
ZN8 B —
SU003-02058 Shaft, Damper, NO.1
2023-12 → —
ZN8 C —
SU003-02058 Shaft, Damper, NO.1
2024-09 → —
ZN8 D —
87154B — Shaft, Damper, NO.2
SU003-02060 Shaft, Damper, NO.2
2021-10 → 2022-06 ended
ZN8 —
SU003-02060 Shaft, Damper, NO.2
2022-06 → 2023-12 ended
ZN8 B —
SU003-02060 Shaft, Damper, NO.2
2023-12 → —
ZN8 C —
SU003-02060 Shaft, Damper, NO.2
2024-09 → —
ZN8 D —
87205C — Guide Sub-assy, Air Duct
SU003-02062 Guide Sub-assy, Air Duct
2021-10 → 2022-06 ended
ZN8 —
SU003-02062 Guide Sub-assy, Air Duct
2024-09 → —
ZN8 D —
SU003-02062 Guide Sub-assy, Air Duct
2023-12 → —
ZN8 C —
SU003-02062 Guide Sub-assy, Air Duct
2022-06 → 2023-12 ended
ZN8 B —
87287A — Damper, Heater Air
SU003-02063 Damper, Heater Air
2021-10 → 2022-06 ended
ZN8 —
SU003-02063 Damper, Heater Air
2022-06 → 2023-12 ended
ZN8 B —
SU003-02063 Damper, Heater Air
2023-12 → —
ZN8 C —
SU003-02063 Damper, Heater Air
2024-09 → —
ZN8 D —
88501 — Evaporator Sub-assy, Cooler, NO.1
SU003-09832 Evaporator Sub-assy, Cooler, NO.1
2021-10 → 2022-06 ended
ZN8 —
SU003-09832 Evaporator Sub-assy, Cooler, NO.1
2022-06 → 2023-12 ended
ZN8 B —
SU003-09832 Evaporator Sub-assy, Cooler, NO.1
2023-12 → —
ZN8 C —
SU003-09832 Evaporator Sub-assy, Cooler, NO.1
2024-09 → —
ZN8 D —
88515 — Valve, Cooler Expansion
SU003-09833 Valve, Cooler Expansion
2024-09 → —
ZN8 D —
SU003-09833 Valve, Cooler Expansion
2023-12 → —
ZN8 C —
SU003-09833 Valve, Cooler Expansion
2021-10 → 2022-06 ended
ZN8 —
SU003-09833 Valve, Cooler Expansion
2022-06 → 2023-12 ended
ZN8 B —
88521 — Case, Cooler Unit
SU003-02011 Case, Cooler Unit
2021-10 → 2022-06 ended
ZN8 —
SU003-02011 Case, Cooler Unit
2022-06 → 2023-12 ended
ZN8 B —
SU003-02011 Case, Cooler Unit
2023-12 → —
ZN8 C —
SU003-02011 Case, Cooler Unit
2024-09 → —
ZN8 D —
88521C — Case, Cooling Unit
SU003-02012 Case, Cooling Unit
2021-10 → 2022-06 ended
ZN8 —
SU003-02012 Case, Cooling Unit
2022-06 → 2023-12 ended
ZN8 B —
SU003-02012 Case, Cooling Unit
2023-12 → —
ZN8 C —
SU003-02012 Case, Cooling Unit
2024-09 → —
ZN8 D —
88561 — Cover, Cooler Unit
SU003-02057 Cover, Cooler Unit
2021-10 → 2022-06 ended
ZN8 —
SU003-02057 Cover, Cooler Unit
2022-06 → 2023-12 ended
ZN8 B —
SU003-02057 Cover, Cooler Unit
2023-12 → —
ZN8 C —
SU003-02057 Cover, Cooler Unit
2024-09 → —
ZN8 D —
88578V — Packing, Cooling Unit, NO.3
SU003-04124 Packing, Cooling Unit, NO.3
2022-06 → 2023-12 ended
ZN8 B —
SU003-04124 Packing, Cooling Unit, NO.3
2024-09 → —
ZN8 D —
SU003-04124 Packing, Cooling Unit, NO.3
2023-12 → —
ZN8 C —
SU003-04124 Packing, Cooling Unit, NO.3
2021-10 → 2022-06 ended
ZN8 —
88625 — Thermistor, Cooler, NO.1
SU003-08917 Thermistor, Cooler, NO.1
2021-10 → 2022-06 ended
ZN8 —
SU003-08917 Thermistor, Cooler, NO.1
2022-06 → 2023-12 ended
ZN8 B —
SU003-08917 Thermistor, Cooler, NO.1
2023-12 → —
ZN8 C —
SU003-08917 Thermistor, Cooler, NO.1
2024-09 → —
ZN8 D —
88666 — Spacer (FOR COOLER UNIT)
SU003-02061 Spacer (FOR COOLER UNIT)
2021-10 → 2022-06 ended
ZN8 —
SU003-02061 Spacer (FOR COOLER UNIT)
2022-06 → 2023-12 ended
ZN8 B —
SU003-02061 Spacer (FOR COOLER UNIT)
2023-12 → —
ZN8 C —
SU003-02061 Spacer (FOR COOLER UNIT)
2024-09 → —
ZN8 D —
88790E — Tube & Accessory Assy, Airconditioner
SU003-A0021 Tube & Accessory Assy, Airconditioner
2021-10 → 2022-06 ended
ZN8 —
SU003-A0021 Tube & Accessory Assy, Airconditioner
2022-06 → 2023-12 ended
ZN8 B —
SU003-A0021 Tube & Accessory Assy, Airconditioner
2023-12 → —
ZN8 C —
SU003-A0021 Tube & Accessory Assy, Airconditioner
2024-09 → —
ZN8 D —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
