Toyota GR 86
2021-11 → present · chassis ZN8 · catalogue 264430 · United States
Supported model
Data version 2024-10

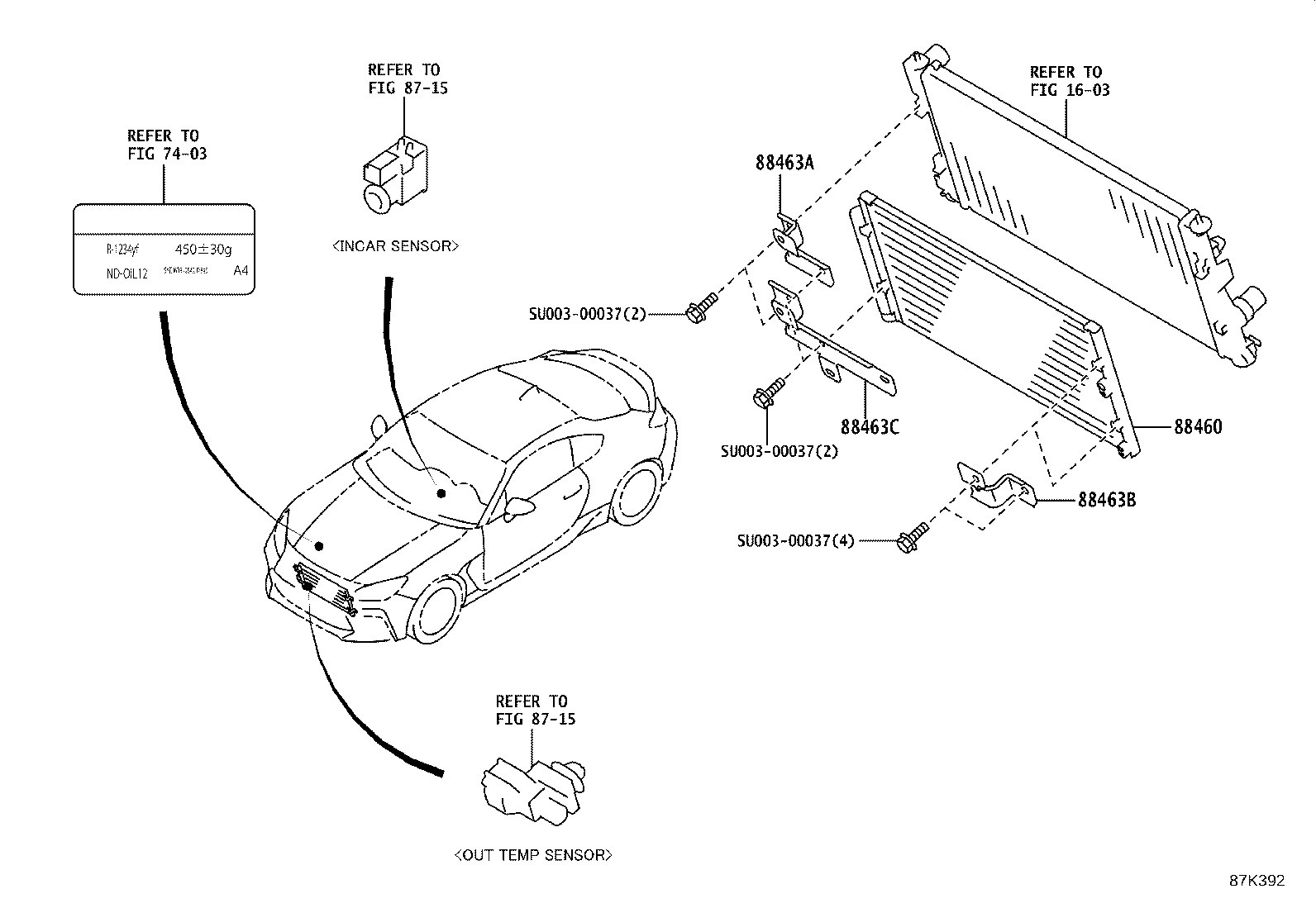

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88460 — Condenser Assy, Cooler | ||||
| SU003-09287 |
Condenser Assy, Cooler
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-09287 |
Condenser Assy, Cooler
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-09287 |
Condenser Assy, Cooler
2023-12 → —
|
ZN8 C | — | |
| SU003-09287 |
Condenser Assy, Cooler
2024-09 → —
|
ZN8 D | — | |
| 88463A — Bracket, Cooler Condenser, NO.2 | ||||
| SU003-09293 |
Bracket, Cooler Condenser, NO.2
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-09293 |
Bracket, Cooler Condenser, NO.2
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-09293 |
Bracket, Cooler Condenser, NO.2
2023-12 → —
|
ZN8 C | — | |
| SU003-09293 |
Bracket, Cooler Condenser, NO.2
2024-09 → —
|
ZN8 D | — | |
| 88463B — Bracket, Cooler Condenser, NO.3 | ||||
| SU003-09292 |
Bracket, Cooler Condenser, NO.3
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-09292 |
Bracket, Cooler Condenser, NO.3
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-09292 |
Bracket, Cooler Condenser, NO.3
2023-12 → —
|
ZN8 C | — | |
| SU003-09292 |
Bracket, Cooler Condenser, NO.3
2024-09 → —
|
ZN8 D | — | |
| 88463C — Bracket, Cooler Condenser, NO.4 | ||||
| SU003-09294 |
Bracket, Cooler Condenser, NO.4
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-09294 |
Bracket, Cooler Condenser, NO.4
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-09294 |
Bracket, Cooler Condenser, NO.4
2023-12 → —
|
ZN8 C | — | |
| SU003-09294 |
Bracket, Cooler Condenser, NO.4
2024-09 → —
|
ZN8 D | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
