Toyota GR 86

2021-11 → present · chassis ZN8 · catalogue 264430 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

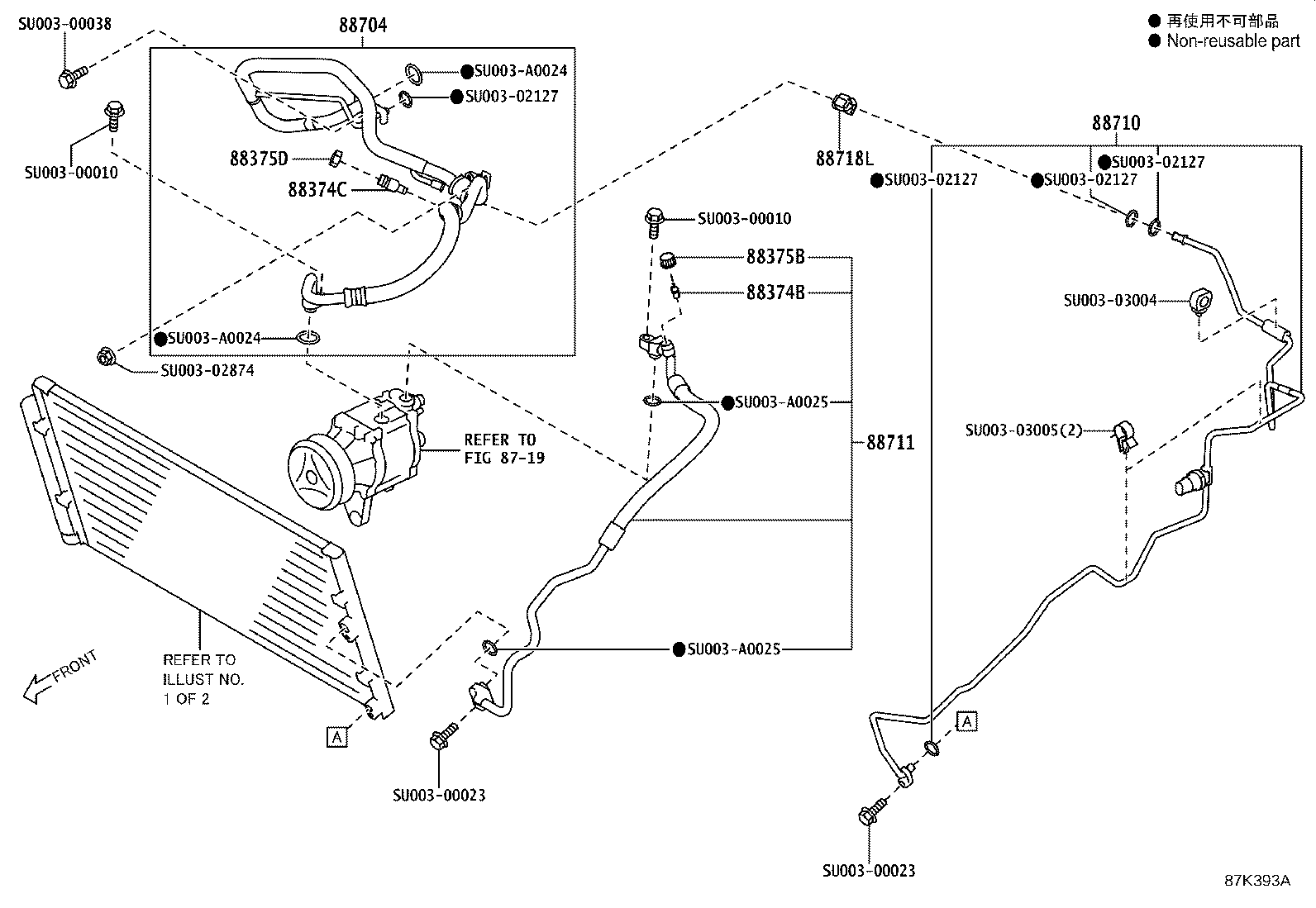

Exploded illustration 87K393A 8719 — not listed in this catalogue SU00300010 — not listed in this catalogue SU00302127 — not listed in this catalogue SU00303004 — not listed in this catalogue SU00303005 — not listed in this catalogue SU00302127 — not listed in this catalogue SU00302127 — not listed in this catalogue SU00300010 — not listed in this catalogue SU00300023 — not listed in this catalogue SU00300023 — not listed in this catalogue 88375B — CAP, SERVICE VALVE, NO.1 (4 parts) 88374B — VALVE, SERVICE, NO.1 (4 parts) 88375D — CAP, SERVICE VALVE, NO.2 (4 parts) 88718L — CLAMP, PIPING (4 parts) 88374C — VALVE, SERVICE, NO.2 (4 parts) 88711 — HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 (4 parts) SU003A0025 — not listed in this catalogue SU003A0024 — not listed in this catalogue SU00300038 — not listed in this catalogue SU003A0024 — not listed in this catalogue SU00302874 — not listed in this catalogue SU00302127 — not listed in this catalogue SU003A0025 — not listed in this catalogue 88710 — TUBE ASSY, AIR CONDITIONER (4 parts) 88704 — HOSE SUB-ASSY, SUCTION (4 parts)
87K393A · 8 callouts, 17 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
32 parts on this figure
Part number Description Fitment Price
88374B — Valve, Service, NO.1
SU003-07345 Valve, Service, NO.1
2022-06 → 2023-12 ended
ZN8 B —
SU003-07345 Valve, Service, NO.1
2023-12 → —
ZN8 C —
SU003-07345 Valve, Service, NO.1
2024-09 → —
ZN8 D —
SU003-07345 Valve, Service, NO.1
2021-10 → 2022-06 ended
ZN8 —
88374C — Valve, Service, NO.2
SU003-07345 Valve, Service, NO.2
2021-10 → 2022-06 ended
ZN8 —
SU003-07345 Valve, Service, NO.2
2022-06 → 2023-12 ended
ZN8 B —
SU003-07345 Valve, Service, NO.2
2023-12 → —
ZN8 C —
SU003-07345 Valve, Service, NO.2
2024-09 → —
ZN8 D —
88375B — Cap, Service Valve, NO.1
SU003-07350 Cap, Service Valve, NO.1
2022-06 → 2023-12 ended
ZN8 B —
SU003-07350 Cap, Service Valve, NO.1
2024-09 → —
ZN8 D —
SU003-07350 Cap, Service Valve, NO.1
2023-12 → —
ZN8 C —
SU003-07350 Cap, Service Valve, NO.1
2021-10 → 2022-06 ended
ZN8 —
88375D — Cap, Service Valve, NO.2
SU003-07351 Cap, Service Valve, NO.2
2021-10 → 2022-06 ended
ZN8 —
SU003-07351 Cap, Service Valve, NO.2
2022-06 → 2023-12 ended
ZN8 B —
SU003-07351 Cap, Service Valve, NO.2
2023-12 → —
ZN8 C —
SU003-07351 Cap, Service Valve, NO.2
2024-09 → —
ZN8 D —
88704 — Hose Sub-assy, Suction
SU003-09830 Hose Sub-assy, Suction
2021-10 → 2022-06 ended
ZN8 —
SU003-09830 Hose Sub-assy, Suction
2024-09 → —
ZN8 D —
SU003-09830 Hose Sub-assy, Suction
2023-12 → —
ZN8 C —
SU003-09830 Hose Sub-assy, Suction
2022-06 → 2023-12 ended
ZN8 B —
88710 — Tube Assy, Air Conditioner
SU003-09831 Tube Assy, Air Conditioner
2021-10 → 2022-06 ended
ZN8 —
SU003-09831 Tube Assy, Air Conditioner
2022-06 → 2023-12 ended
ZN8 B —
SU003-09831 Tube Assy, Air Conditioner
2023-12 → —
ZN8 C —
SU003-09831 Tube Assy, Air Conditioner
2024-09 → —
ZN8 D —
88711 — Hose, Cooler Refrigerant Discharge, NO.1
SU003-09290 Hose, Cooler Refrigerant Discharge, NO.1
2021-10 → 2022-06 ended
ZN8 —
SU003-09290 Hose, Cooler Refrigerant Discharge, NO.1
2022-06 → 2023-12 ended
ZN8 B —
SU003-09290 Hose, Cooler Refrigerant Discharge, NO.1
2023-12 → —
ZN8 C —
SU003-09290 Hose, Cooler Refrigerant Discharge, NO.1
2024-09 → —
ZN8 D —
88718L — Clamp, Piping
SU003-08472 Clamp, Piping
2021-10 → 2022-06 ended
ZN8 —
SU003-08472 Clamp, Piping
2022-06 → 2023-12 ended
ZN8 B —
SU003-08472 Clamp, Piping
2023-12 → —
ZN8 C —
SU003-08472 Clamp, Piping
2024-09 → —
ZN8 D —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
