Toyota GR 86
2021-11 → present · chassis ZN8 · catalogue 264430 · United States
Supported model
Data version 2024-10

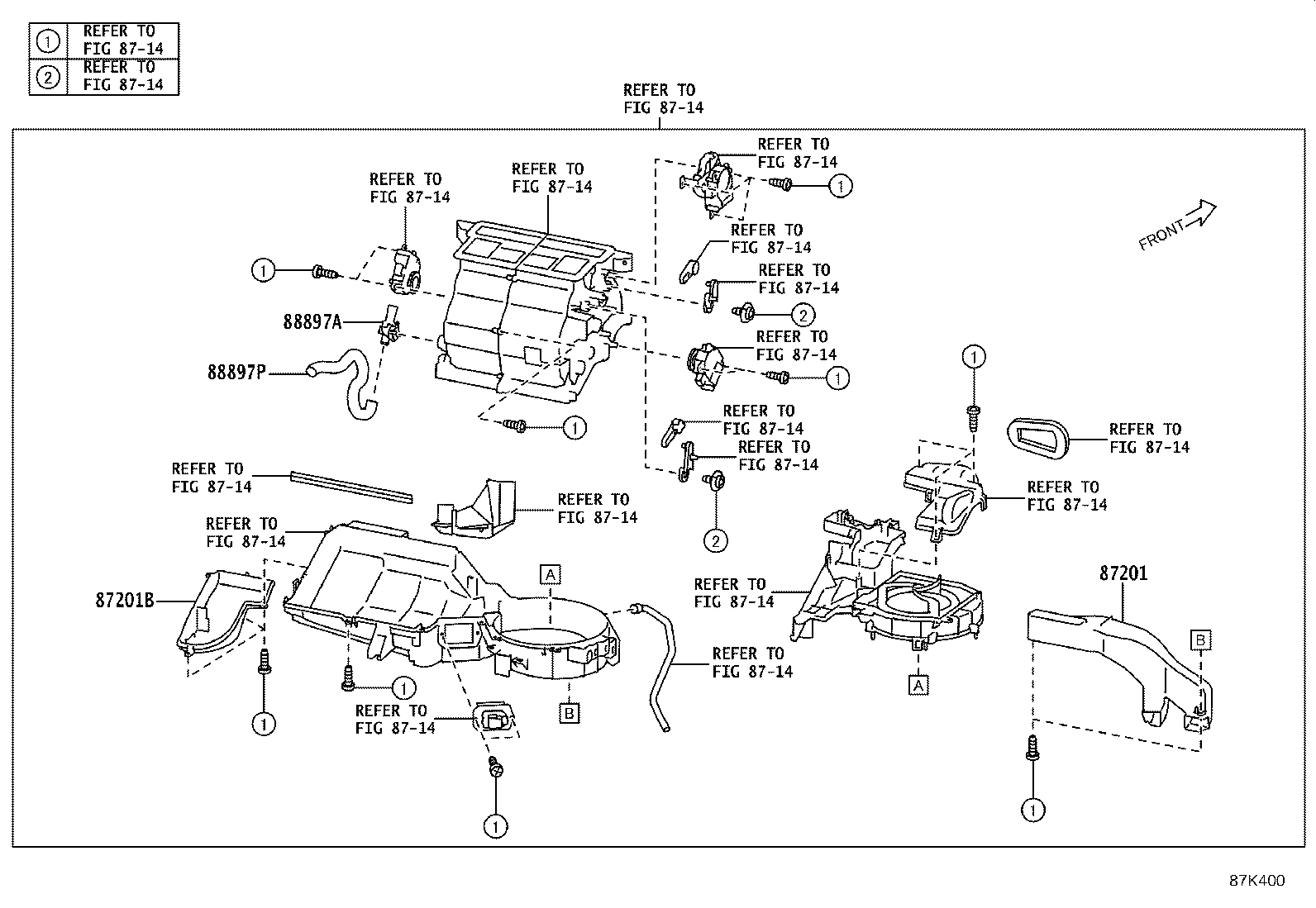

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87201 — Duct Sub-assy, Air, NO.1 | ||||
| SU003-02038 |
Duct Sub-assy, Air, NO.1
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-02038 |
Duct Sub-assy, Air, NO.1
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-02038 |
Duct Sub-assy, Air, NO.1
2023-12 → —
|
ZN8 C | — | |
| SU003-02038 |
Duct Sub-assy, Air, NO.1
2024-09 → —
|
ZN8 D | — | |
| 87201B — Duct Sub-assy, Air, NO.2 | ||||
| SU003-02037 |
Duct Sub-assy, Air, NO.2
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-02037 |
Duct Sub-assy, Air, NO.2
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-02037 |
Duct Sub-assy, Air, NO.2
2023-12 → —
|
ZN8 C | — | |
| SU003-02037 |
Duct Sub-assy, Air, NO.2
2024-09 → —
|
ZN8 D | — | |
| 88897A — Pipe, Aspirator | ||||
| SU003-02027 |
Pipe, Aspirator
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-02027 |
Pipe, Aspirator
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-02027 |
Pipe, Aspirator
2023-12 → —
|
ZN8 C | — | |
| SU003-02027 |
Pipe, Aspirator
2024-09 → —
|
ZN8 D | — | |
| 88897P — Aspirator | ||||
| SU003-09829 |
Aspirator
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-09829 |
Aspirator
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-09829 |
Aspirator
2023-12 → —
|
ZN8 C | — | |
| SU003-09829 |
Aspirator
2024-09 → —
|
ZN8 D | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
