Toyota GR 86

2021-11 → present · chassis ZN8 · catalogue 264430 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

14 part groups · 8 illustrations

Illustrations

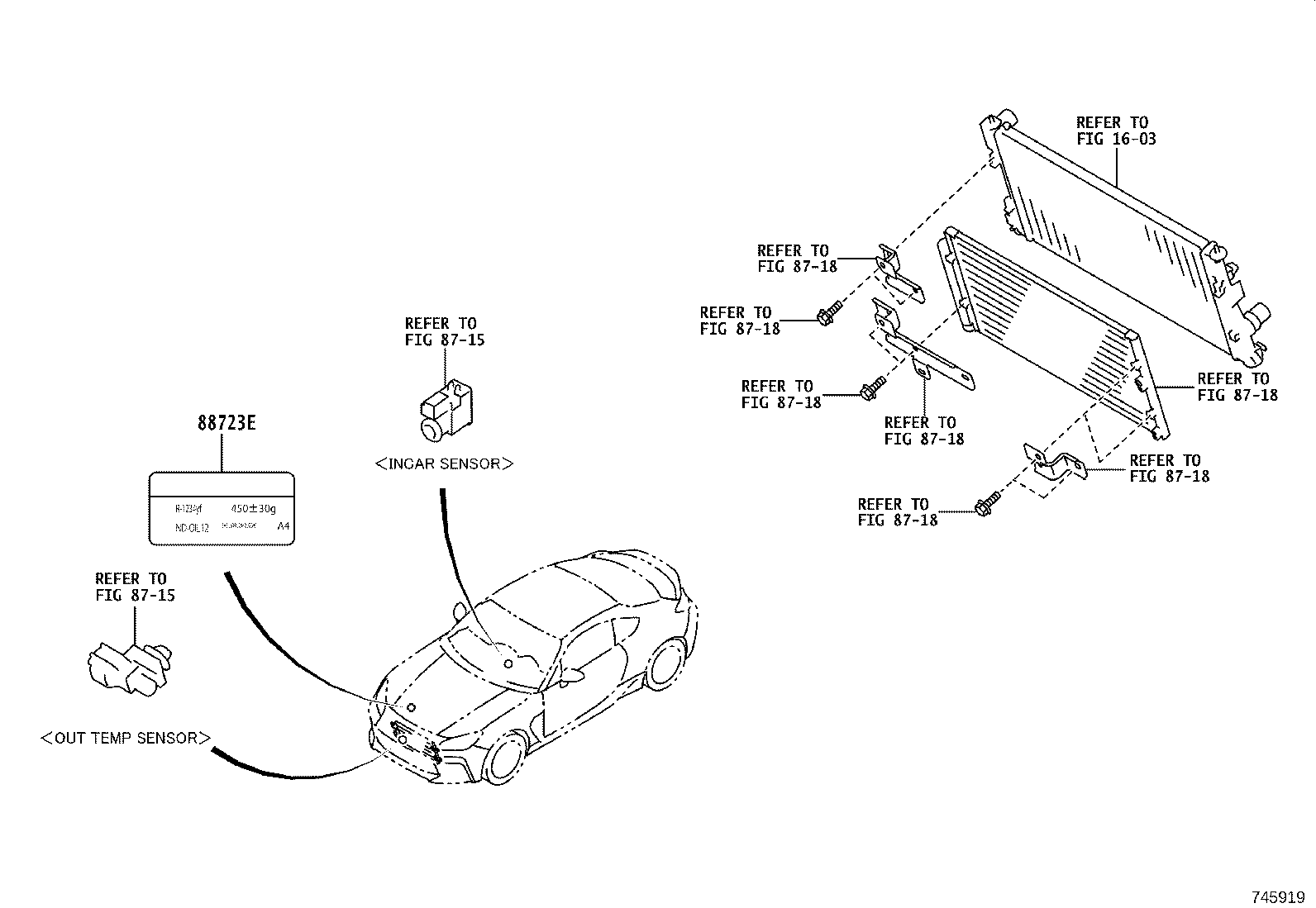

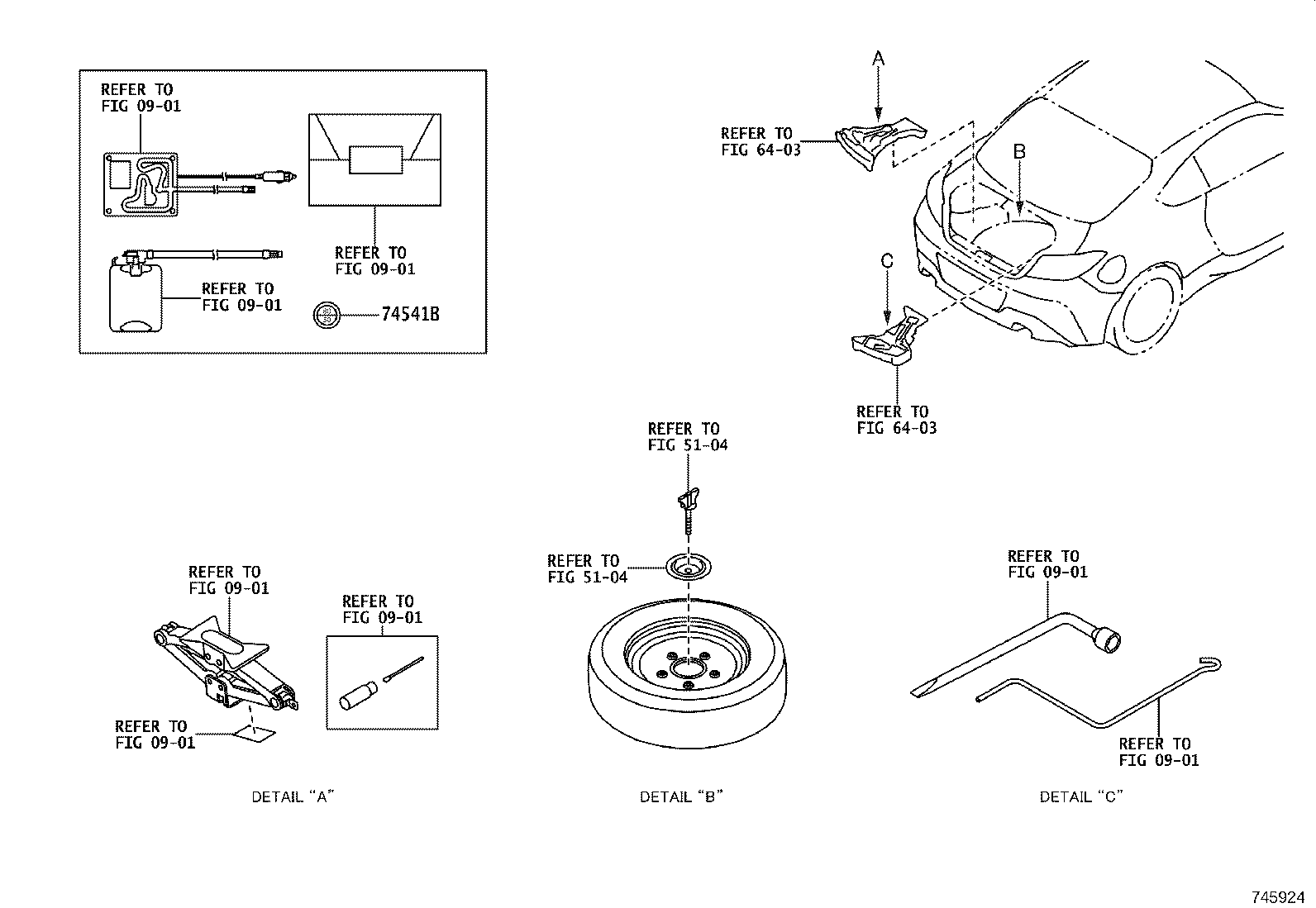

Figure 745918 745918 2021-10 → — Figure 745919 745919 2021-10 → — Figure 745920 745920 2021-10 → — Figure 745921 745921 2021-10 → — Figure 745922 745922 2021-10 → — Figure 745923 745923 2021-10 → — Figure 745924 745924 2021-10 → — Figure 745925 745925 2021-10 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
11298B Label, Emission Control Information
16793B Label, Cooling Fan Information
41991H Label, Caution, NO.2
55513E Plate, Glove Compartment, NO.2
74511B Plate, Name
74511F Label, Name (IDENTIFICATION LASER LABEL)
74532A Plate, Caution
74541B Plate, Compact Spare Tire Caution
74541E Plate, Compact Spare Tire Caution
74579A Label, Unleaded Fuel Information
74751 Label, Tire Pressure Information
86995E Label, Caution
88723E Label, Cooler Service Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
