Toyota Scion TC

2004-05 → 2010-07 · chassis ANT10 · catalogue 277410 · United States

Supported model Data version 2011-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

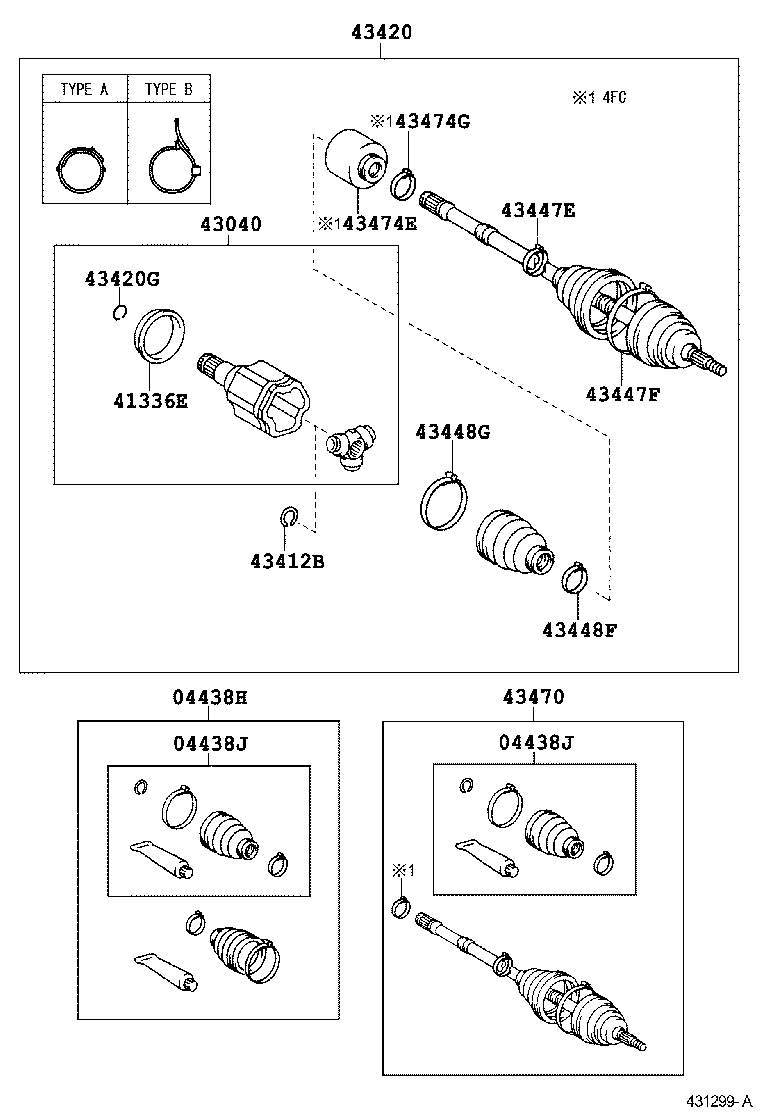

Exploded illustration 431299A 43040 — JOINT ASSY, FRONT DRIVE INBOARD, LH (1 parts) 43420 — SHAFT ASSY, FRONT DRIVE, LH (2 parts) 43420G — RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) (1 parts) 43474G — CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH) (1 parts) 43474E — DAMPER, FRONT DRIVE SHAFT, LH (1 parts) 43447E — CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (1 parts) 43447F — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (1 parts) 43448F — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) (2 parts) 43470 — SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH (2 parts) 43412B — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) (1 parts) 04438J — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH (3 parts) 41336E — COVER, FRONT DRIVE SHAFT DUST, LH (1 parts) 43448G — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) (1 parts) 04438H — BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH (3 parts) 04438J — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH (3 parts)
431299A · 15 callouts Full size ↗
21 parts on this figure
Part number Description Fitment Price
04438H — Boot Kit, Front Drive Shaft, IN & Outboard, LH
04428-42070 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2009-03 → —
ANT10 —
04438-28052 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2004-05 → 2009-03 ended
ANT10 5F —
04438-28052 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2004-05 → 2009-02 ended
ANT10 4FC —
04438J — Boot Kit, Front Drive Shaft Inboard Joint, LH
04438-28041 Boot Kit, Front Drive Shaft Inboard Joint, LH
2004-05 → 2009-02 ended
ANT10 4FC —
04438-28041 Boot Kit, Front Drive Shaft Inboard Joint, LH
2004-05 → 2009-03 ended
ANT10 5F —
04438-42180 Boot Kit, Front Drive Shaft Inboard Joint, LH
2009-03 → —
ANT10 —
41336E — Cover, Front Drive Shaft Dust, LH
41336-28020 Cover, Front Drive Shaft Dust, LH
2004-05 → —
ANT10 —
43040 — Joint Assy, Front Drive Inboard, LH
43040-28011 Joint Assy, Front Drive Inboard, LH
2004-05 → —
ANT10 —
43412B — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-28010 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2004-05 → —
ANT10 —
43420 — Shaft Assy, Front Drive, LH
43420-44040 Shaft Assy, Front Drive, LH
2004-05 → 2010-07 ended
ANT10 4FC —
43420-44050 Shaft Assy, Front Drive, LH
2004-05 → 2010-07 ended
ANT10 5F —
43420G — Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
90521-33002 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2004-05 → —
ANT10 —
43447E — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-20040 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2004-05 → —
ANT10 —
43447F — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-28020 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2004-05 → —
ANT10 —
43448F — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-42010 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2004-05 → —
ANT10 —
90949-01559 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2004-05 → —
ANT10 —
43448G — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-12160 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2004-05 → —
ANT10 —
43470 — Shaft Assy, Front Drive Outboard Joint, LH
43470-80064 Shaft Assy, Front Drive Outboard Joint, LH
2004-05 → 2009-02 ended
ANT10 —
43470-80064 Shaft Assy, Front Drive Outboard Joint, LH
2009-03 → —
ANT10 —
43474E — Damper, Front Drive Shaft, LH
43474-44010 Damper, Front Drive Shaft, LH
2004-05 → —
ANT10 4FC —
43474G — Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-14010 Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2004-05 → —
ANT10 4FC —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
