Toyota Scion TC
2004-05 → 2010-07 · chassis ANT10 · catalogue 277410 · United States
Supported model
Data version 2011-01

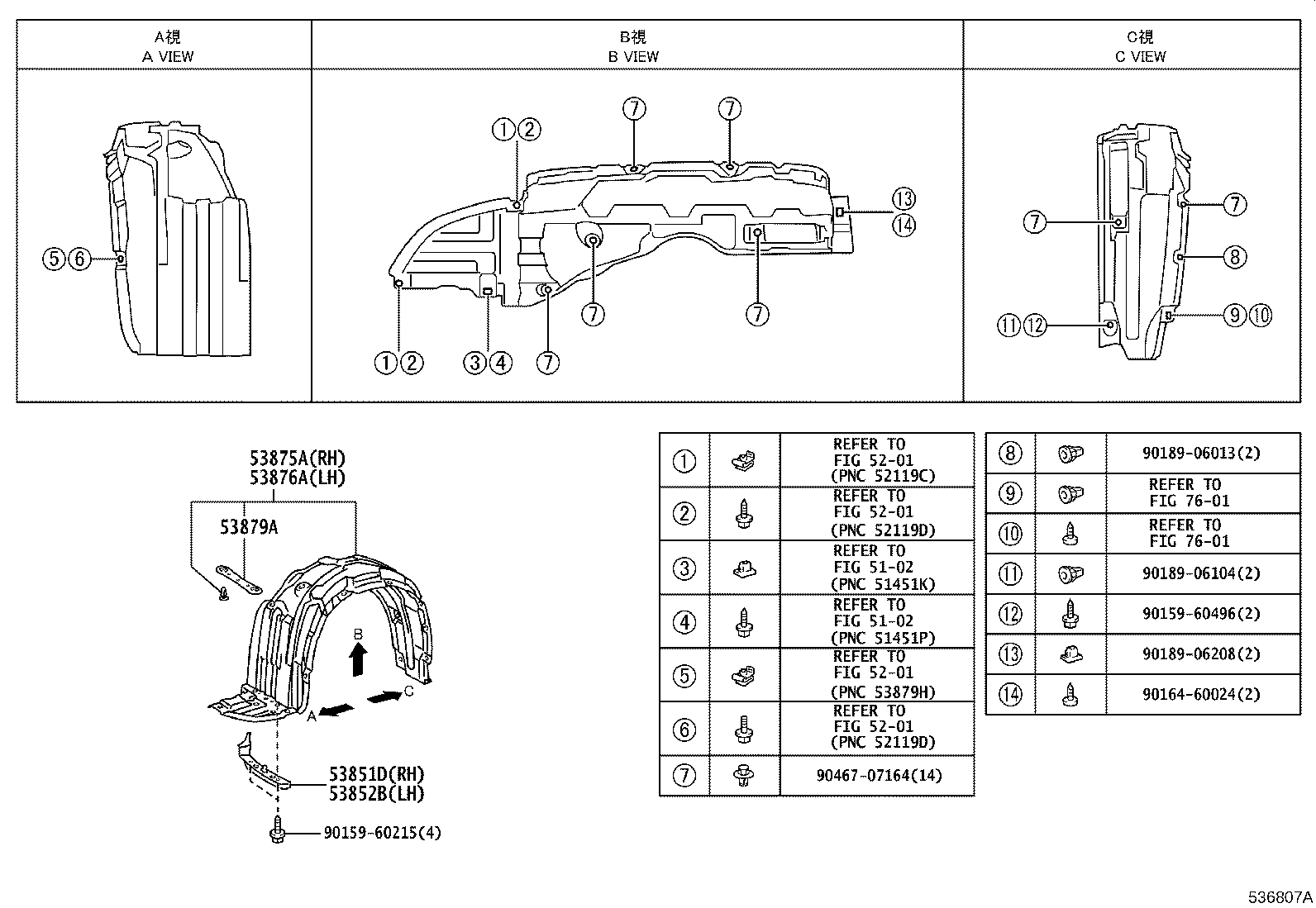

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 53851D — Pad, Front Wheel Opening Extension, RH | ||||
| 53851-21010 |
Pad, Front Wheel Opening Extension, RH
2004-05 → —
|
ANT10 | — | |
| 53852B — Pad, Front Wheel Opening Extension, LH | ||||
| 53852-21010 |
Pad, Front Wheel Opening Extension, LH
2004-05 → —
|
ANT10 | — | |
| 53875A — Liner, Front Fender, RH | ||||
| 53875-21060 |
Liner, Front Fender, RH
2004-05 → —
|
ANT10 | — | |
| 53876A — Liner, Front Fender, LH | ||||
| 53876-21060 |
Liner, Front Fender, LH
2004-05 → —
|
ANT10 | — | |
| 53879A — Retainer, Front Fender Liner | ||||
| 53879-68010 |
Retainer, Front Fender Liner
2004-05 → —
|
ANT10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
