Toyota Scion TC

2004-05 → 2010-07 · chassis ANT10 · catalogue 277410 · United States

Supported model Data version 2011-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

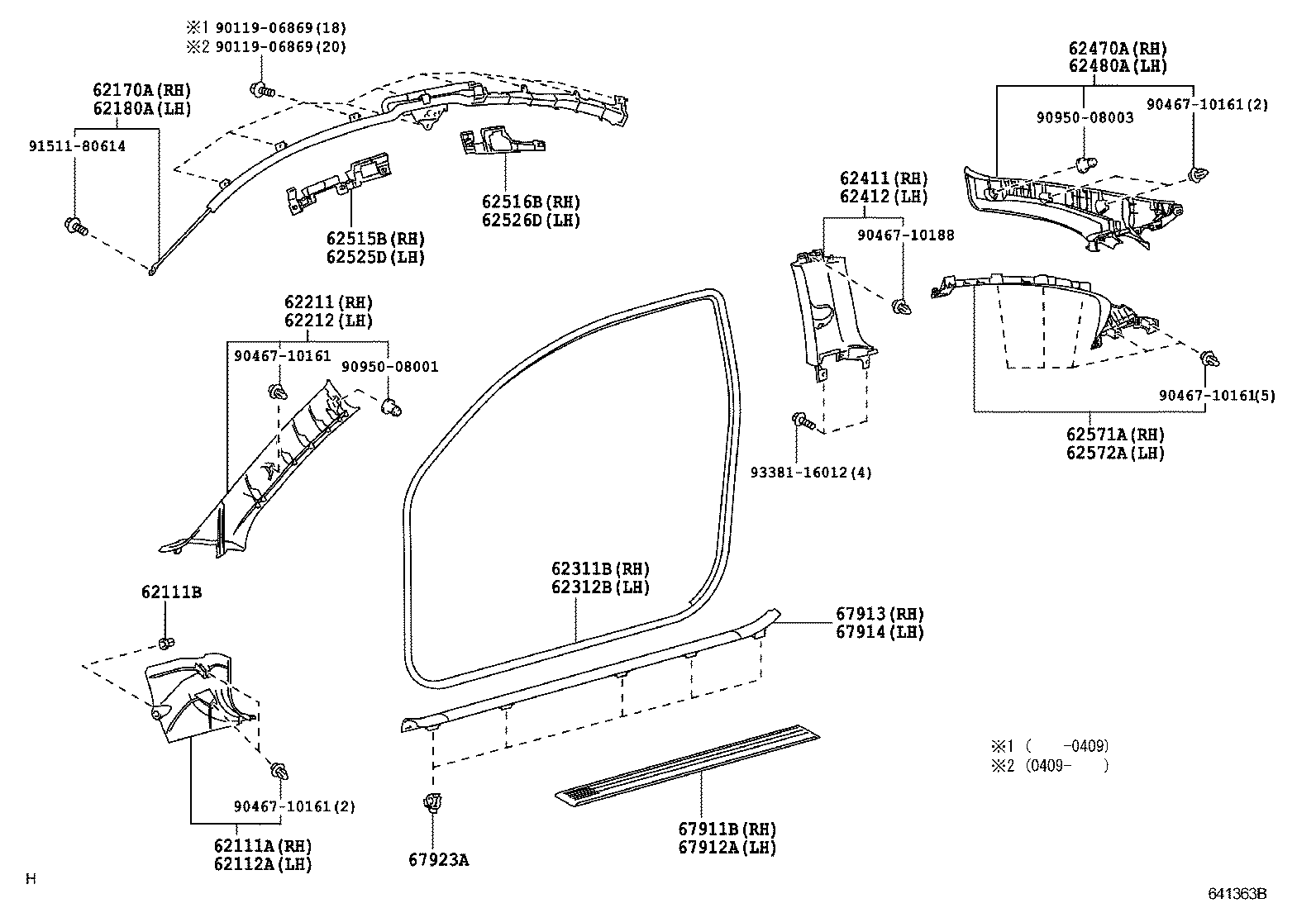

Exploded illustration 641363B 62111A — TRIM SUB-ASSY, COWL SIDE, RH (1 parts) 62112A — TRIM SUB-ASSY, COWL SIDE, LH (1 parts) 9046710161 — not listed in this catalogue 62111B — CLIP(FOR COWL SIDE TRIM) (1 parts) 62211 — GARNISH, FRONT PILLAR, RH (3 parts) 62212 — GARNISH, FRONT PILLAR, LH (3 parts) 9046710161 — not listed in this catalogue 62411 — GARNISH, CENTER PILLAR, RH (1 parts) 62412 — GARNISH, CENTER PILLAR, LH (1 parts) 9046710188 — not listed in this catalogue 9338116012 — not listed in this catalogue 9095008001 — not listed in this catalogue 67913 — PLATE, FRONT DOOR SCUFF, RH (2 parts) 67914 — PLATE, FRONT DOOR SCUFF, LH (2 parts) 67911B — PLATE, FRONT DOOR SCUFF, OUTSIDE, RH (1 parts) 67912A — PLATE, FRONT DOOR SCUFF, OUTSIDE LH (1 parts) 67923A — CLAMP, DOOR SCUFF PLATE, NO.1 (1 parts) 62311B — WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH (2 parts) 62312B — WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH (2 parts) 62571A — GARNISH, ROOF SIDE, INNER LOWER RH (1 parts) 62572A — GARNISH, ROOF SIDE INNER LOWER LH (1 parts) 9046710161 — not listed in this catalogue 9046710161 — not listed in this catalogue 62470A — GARNISH ASSY, ROOF SIDE, INNER RH (3 parts) 62480A — GARNISH ASSY, ROOF SIDE, INNER LH (3 parts) 9095008003 — not listed in this catalogue 62515B — COVER, SIDE TRIM BASE, NO.1 RH (2 parts) 62525D — COVER, SIDE TRIM BASE, NO.1 LH (2 parts) 62516B — COVER, SIDE TRIM BASE, NO.2 RH (2 parts) 62526D — COVER, SIDE TRIM BASE, NO.2 LH (2 parts) 9011906869 — not listed in this catalogue 9151180614 — not listed in this catalogue 62170A — AIRBAG ASSY, CURTAIN SHIELD, RH (2 parts) 62180A — AIRBAG ASSY, CURTAIN SHIELD, LH (2 parts) 9011906869 — not listed in this catalogue
641363B · 24 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
42 parts on this figure
Part number Description Fitment Price
62111A — Trim Sub-assy, Cowl Side, RH
62111-21030-B0 note Trim Sub-assy, Cowl Side, RH
2004-05 → 2010-07 ended
ANT10 —
62111B — Clip(FOR COWL SIDE TRIM)
90467-06158-C0 note Clip(FOR COWL SIDE TRIM)
2004-05 → 2010-07 ended
ANT10 —
62112A — Trim Sub-assy, Cowl Side, LH
62112-21030-B0 note Trim Sub-assy, Cowl Side, LH
2004-05 → 2010-07 ended
ANT10 —
62170A — Airbag Assy, Curtain Shield, RH
62170-21010 note Airbag Assy, Curtain Shield, RH
2004-05 → 2007-04 ended
ANT10 —
62170-21010 Airbag Assy, Curtain Shield, RH
2007-04 → 2010-07 ended
ANT10 —
62180A — Airbag Assy, Curtain Shield, LH
62180-21010 note Airbag Assy, Curtain Shield, LH
2004-05 → 2007-04 ended
ANT10 —
62180-21010 Airbag Assy, Curtain Shield, LH
2007-04 → 2010-07 ended
ANT10 —
62211 — Garnish, Front Pillar, RH
62210-21030-B0 note Garnish, Front Pillar, RH
2004-05 → 2007-04 ended
ANT10 —
62210-21040-B0 note Garnish, Front Pillar, RH
2004-05 → 2007-04 ended
ANT10 —
62210-21040-B0 note Garnish, Front Pillar, RH
2007-04 → 2010-07 ended
ANT10 —
62212 — Garnish, Front Pillar, LH
62220-21030-B0 note Garnish, Front Pillar, LH
2004-05 → 2007-04 ended
ANT10 —
62220-21040-B0 note Garnish, Front Pillar, LH
2004-05 → 2007-04 ended
ANT10 —
62220-21040-B0 note Garnish, Front Pillar, LH
2007-04 → 2010-07 ended
ANT10 —
62311B — Weatherstrip, Front Door Opening Trim, RH
62311-21060-B1 note Weatherstrip, Front Door Opening Trim, RH
2004-05 → 2010-07 ended
ANT10 —
62311-21070-B1 note Weatherstrip, Front Door Opening Trim, RH
2006-05 → 2008-04 ended
ANT10 —
62312B — Weatherstrip, Front Door Opening Trim, LH
62312-21060-B1 note Weatherstrip, Front Door Opening Trim, LH
2004-05 → 2010-07 ended
ANT10 —
62312-21070-B1 note Weatherstrip, Front Door Opening Trim, LH
2006-05 → 2008-04 ended
ANT10 —
62411 — Garnish, Center Pillar, RH
62410-21030-B1 note Garnish, Center Pillar, RH
2004-05 → 2010-07 ended
ANT10 —
62412 — Garnish, Center Pillar, LH
62420-21030-B1 note Garnish, Center Pillar, LH
2004-05 → 2010-07 ended
ANT10 —
62470A — Garnish Assy, Roof Side, Inner RH
62470-21030-B1 note Garnish Assy, Roof Side, Inner RH
2004-05 → 2007-04 ended
ANT10 —
62470-21040-B1 note Garnish Assy, Roof Side, Inner RH
2007-04 → 2010-07 ended
ANT10 —
62470-21040-B1 note Garnish Assy, Roof Side, Inner RH
2004-05 → 2007-04 ended
ANT10 —
62480A — Garnish Assy, Roof Side, Inner LH
62480-21030-B1 note Garnish Assy, Roof Side, Inner LH
2004-05 → 2007-04 ended
ANT10 —
62480-21040-B1 note Garnish Assy, Roof Side, Inner LH
2004-05 → 2007-04 ended
ANT10 —
62480-21040-B1 note Garnish Assy, Roof Side, Inner LH
2007-04 → 2010-07 ended
ANT10 —
62515B — Cover, Side Trim Base, NO.1 RH
62515-21010 note Cover, Side Trim Base, NO.1 RH
2004-05 → 2007-04 ended
ANT10 —
62515-21010 Cover, Side Trim Base, NO.1 RH
2007-04 → —
ANT10 —
62516B — Cover, Side Trim Base, NO.2 RH
62516-21010 note Cover, Side Trim Base, NO.2 RH
2004-05 → 2007-04 ended
ANT10 —
62516-21010 Cover, Side Trim Base, NO.2 RH
2007-04 → —
ANT10 —
62525D — Cover, Side Trim Base, NO.1 LH
62525-21010 note Cover, Side Trim Base, NO.1 LH
2004-05 → 2007-04 ended
ANT10 —
62525-21010 Cover, Side Trim Base, NO.1 LH
2007-04 → —
ANT10 —
62526D — Cover, Side Trim Base, NO.2 LH
62526-21010 note Cover, Side Trim Base, NO.2 LH
2004-05 → 2007-04 ended
ANT10 —
62526-21010 Cover, Side Trim Base, NO.2 LH
2007-04 → —
ANT10 —
62571A — Garnish, Roof Side, Inner Lower RH
62571-21010-B1 note Garnish, Roof Side, Inner Lower RH
2004-05 → 2010-07 ended
ANT10 —
62572A — Garnish, Roof Side Inner Lower LH
62572-21010-B1 note Garnish, Roof Side Inner Lower LH
2004-05 → 2010-07 ended
ANT10 —
67911B — Plate, Front Door Scuff, Outside, RH
67911-21020-B0 note Plate, Front Door Scuff, Outside, RH
2004-05 → 2010-07 ended
ANT10 —
67912A — Plate, Front Door Scuff, Outside LH
67911-21020-B0 note Plate, Front Door Scuff, Outside LH
2004-05 → 2010-07 ended
ANT10 —
67913 — Plate, Front Door Scuff, RH
67913-21020-B0 note Plate, Front Door Scuff, RH
2004-05 → 2010-01 ended
ANT10 —
67913-21020-B0 note Plate, Front Door Scuff, RH
2010-02 → 2010-07 ended
ANT10 —
67914 — Plate, Front Door Scuff, LH
67914-21020-B0 note Plate, Front Door Scuff, LH
2004-05 → 2010-01 ended
ANT10 —
67914-21021-B0 note Plate, Front Door Scuff, LH
2010-02 → 2010-07 ended
ANT10 —
67923A — Clamp, Door Scuff Plate, NO.1
67923-32050 Clamp, Door Scuff Plate, NO.1
2004-05 → —
ANT10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
