Toyota Scion TC
2004-05 → 2010-07 · chassis ANT10 · catalogue 277410 · United States
Supported model
Data version 2011-01
Radiator & Water Outlet

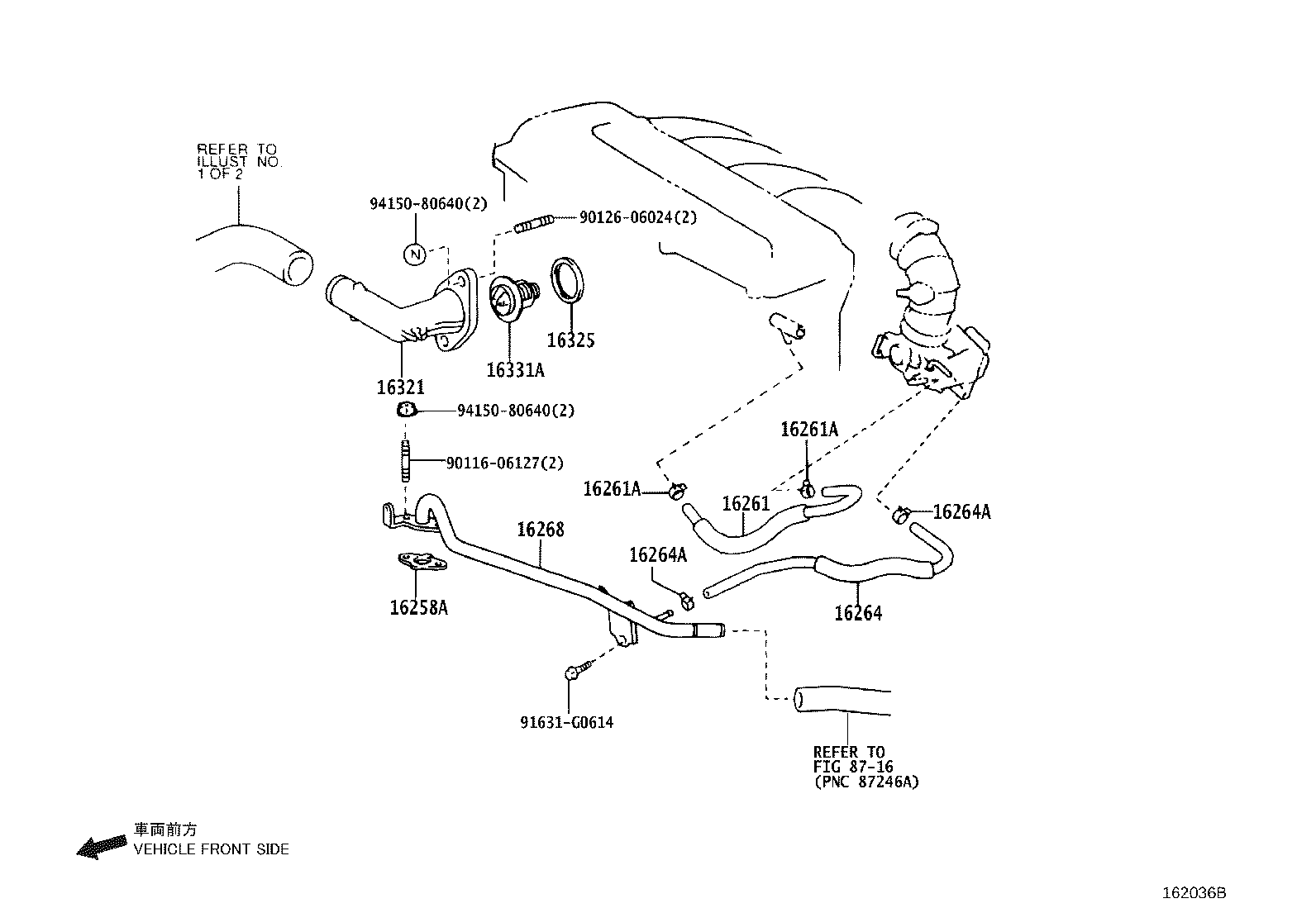

31 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 16258A | Gasket(FOR HEATER RETURN) |
| 16261 | Hose, Water By-pass |
| 16261A | Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) |
| 16264 | Hose, Water By-pass, NO.2 |
| 16264A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16268 | Pipe, Water By-pass, NO.1 |
| 16321 | Inlet, Water |
| 16325 | Gasket, Water Inlet Housing, NO.1 |
| 16331A | Thermostat |
| 16361 | Fan |
| 16361B | Fan, NO.2 |
| 16363 | Motor, Cooling Fan |
| 16363A | Motor, Cooling Fan, NO.2 |
| 16374 | Insulator, Cooling Fan Motor |
| 16400 | Radiator Assy |
| 16400B | Plug, Radiator Drain Cock |
| 16400F | Packing(FOR RADIATOR DRAIN COCK) |
| 16401 | Cap Sub-assy, Radiator |
| 16470 | Tank Assy, Radiator Reserve |
| 16470A | Hose OR Pipe(FOR RADIATOR RESERVE TANK) |
| 16470E | Grommet, Radiator Reserve Tank Hose |
| 16471 | Cap Sub-assy, Reserve Tank |
| 16523A | Cushion, Radiator Support |
| 16533 | Support, Radiator, Upper |
| 16535 | Support, Radiator, Lower |
| 16571 | Hose, Radiator, Inlet |
| 16571A | Clamp OR Clip, Hose(FOR RADIATOR INLET) |
| 16572 | Hose, Radiator, Outlet |
| 16572A | Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1) |
| 16711 | Shroud, Fan |
| 16715 | Bracket, Fan Shroud |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
