Toyota Scion TC

2004-05 → 2010-07 · chassis ANT10 · catalogue 277410 · United States

Supported model Data version 2011-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

21 part groups · 3 illustrations

Illustrations

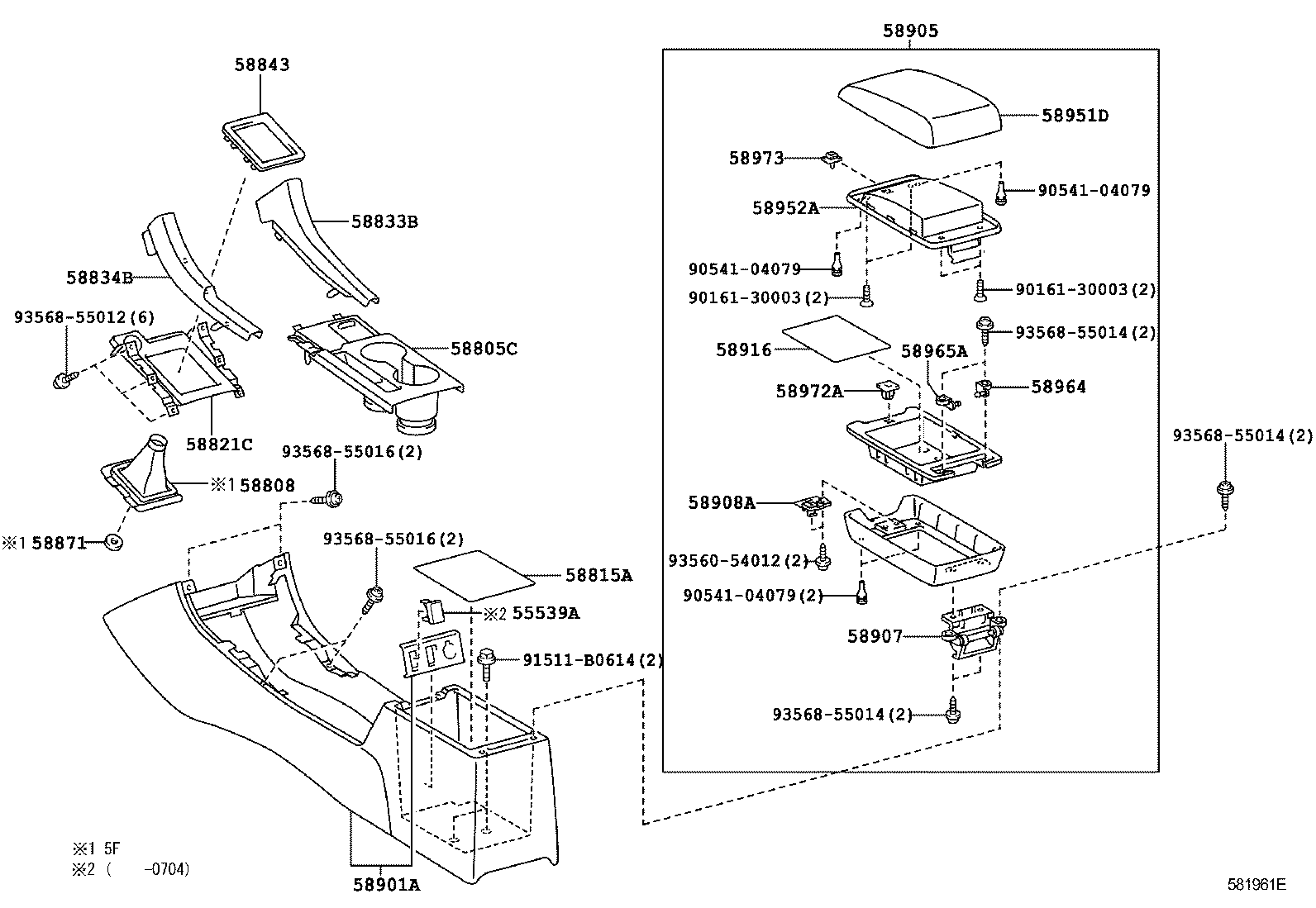

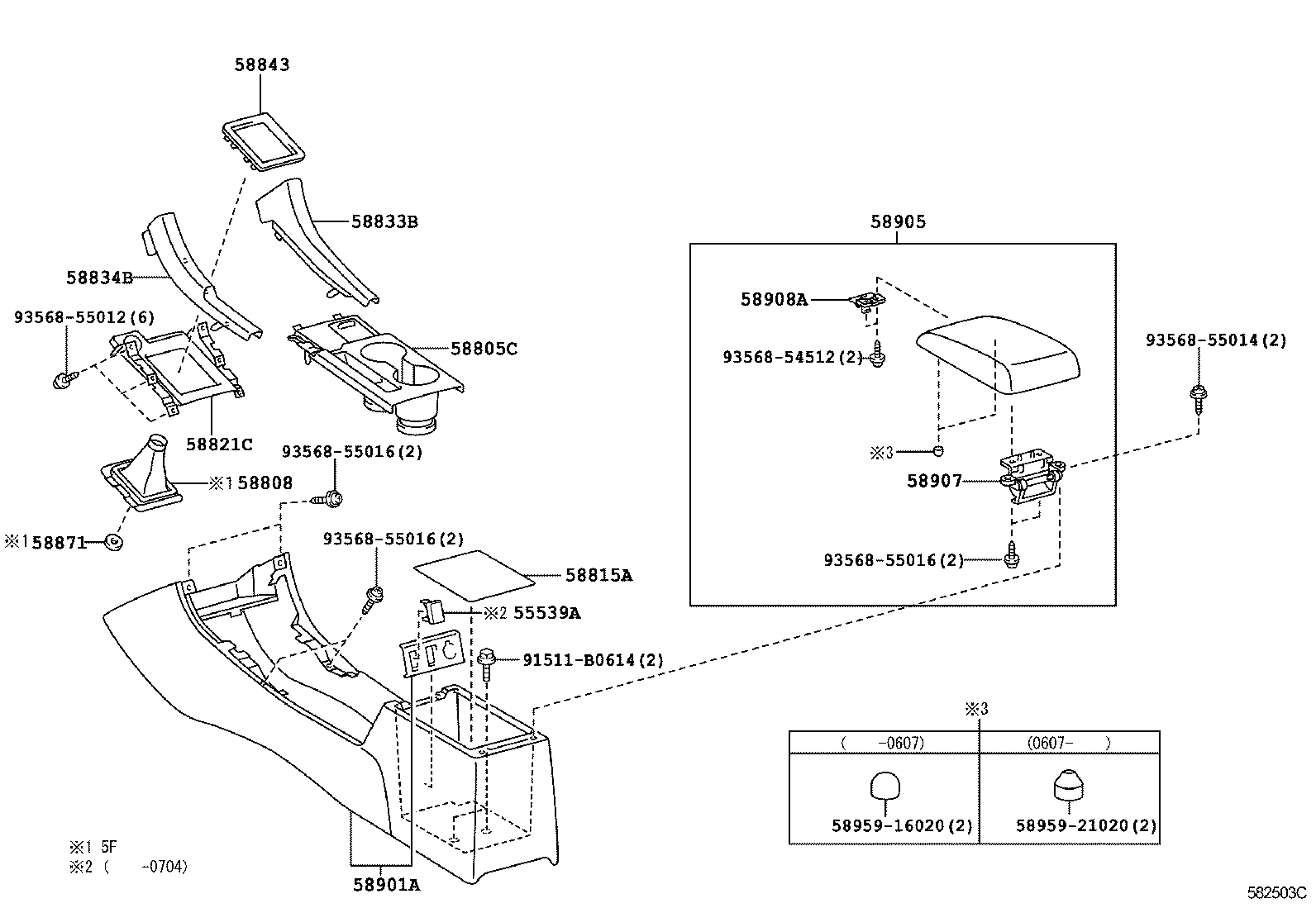

Figure 582266B 582266B 2004-05 → 2005-05 Figure 581961E 581961E 2005-05 → — Figure 582503C 582503C 2006-05 → —

Part groups

PNCDescription
55539A Cover, Spare Switch Hole
58805C Panel Sub-assy, Console, Upper Rear
58808 Cover Sub-assy, Shifting Hole
58815A Carpet, Console Box
58821C Panel, Console, Upper
58833B Garnish, Console Upper Panel, NO.1
58834B Garnish, Console Upper Panel, NO.2
58843 Bezel, Shifting Hole
58871 Cushion, Console Box
58901A Box Sub-assy, Console, Rear
58905 Door Sub-assy, Console Compartment
58907 Hinge Sub-assy, Console Compartment Door
58908A Lock Sub-assy, Console Compartment Door
58910C Box Assy, Console, Rear
58916 Mat, Box Bottom
58951D Door, Console Compartment, Outer
58952A Door, Console Compartment, Inner
58964 Stopper, Console Compartment Door, NO.1
58965A Stopper, Console Compartment Door, NO.2
58972A Base, Console Compartment Door Lock
58973 Pin, Console Compartment Door Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
