Toyota Scion TC

2004-05 → 2010-07 · chassis ANT10 · catalogue 277410 · United States

Supported model Data version 2011-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Window Glass

14 part groups · 2 illustrations

Illustrations

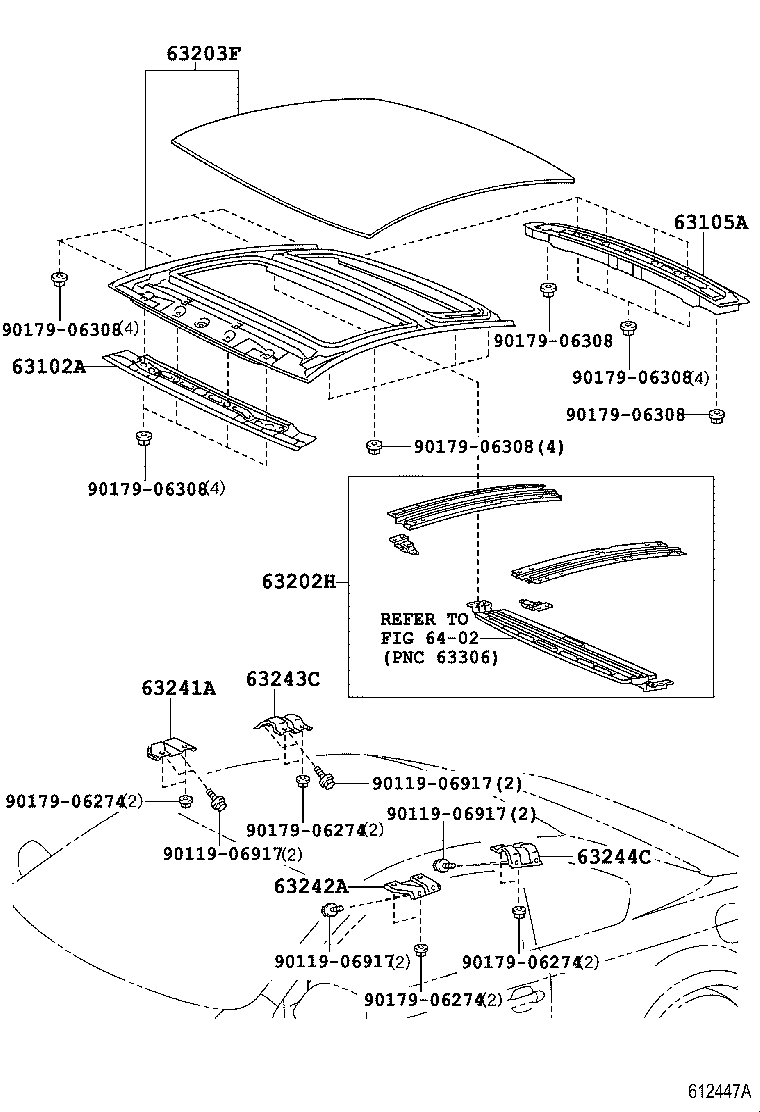

Figure 611986G 611986G 2004-05 → — Figure 612447A 612447A 2006-05 → —

Part groups

PNCDescription
63102A Panel Sub-assy, Windshield Header
63105A Frame Sub-assy, Back Door Opening
63201G Glass Sub-assy, Sliding Roof
63201P Glass Sub-assy, Sliding Roof
63202H Rail Sub-assy, Slide Roof
63203F Housing Sub-assy, Sliding Roof
63217G Garnish, Sliding Roof Side, RH
63218G Garnish, Sliding Roof Side, LH
63241A Bracket, Sliding Roof Housing Front Mounting, RH
63242A Bracket, Sliding Roof Housing Front Mounting, LH
63243C Bracket, Sliding Roof Housing Center Mounting, RH
63244C Bracket, Sliding Roof Housing Center Mounting, LH
63260A Gear Sub-assy, Sliding Roof Drive
63847 Seal, Rear Slide Roof Housing
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
