Toyota Scion TC
2004-05 → 2010-07 · chassis ANT10 · catalogue 277410 · United States
Supported model
Data version 2011-01

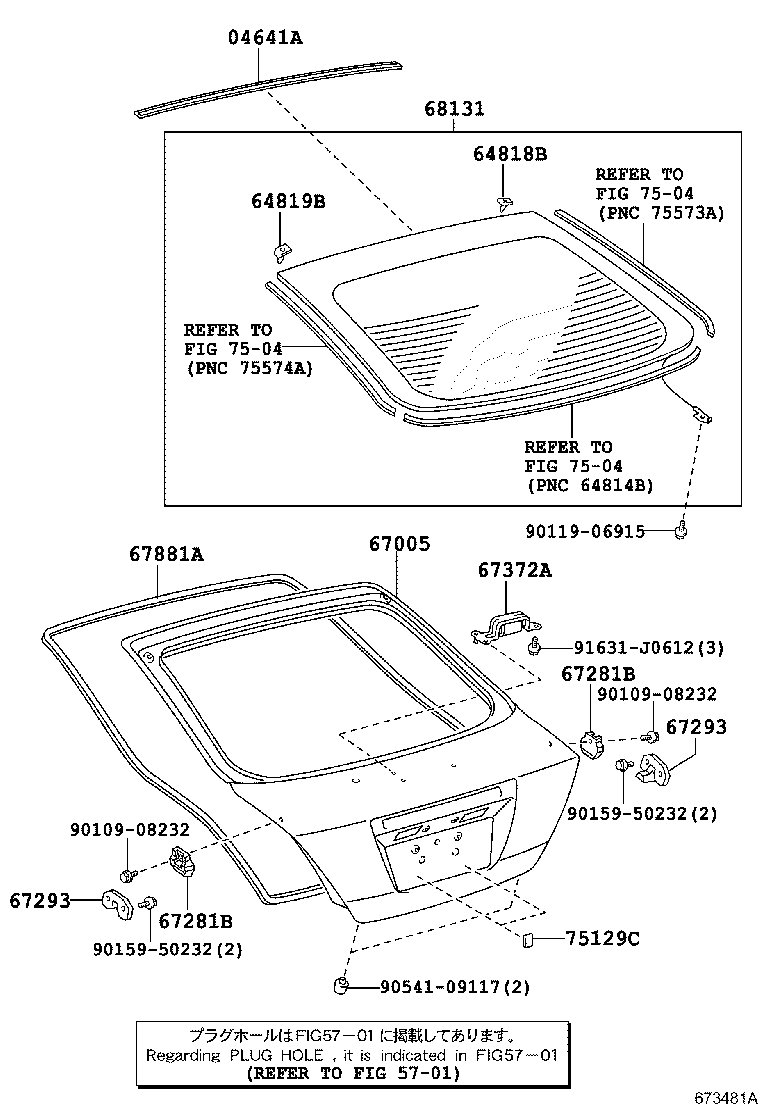

Back Door Panel & Glass
17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04641A | Dam Kit, Back Window Glass Adhesive |
| 64818B | Spacer, Back Door Glass, NO.1 |
| 64819B | Spacer, Back Window Glass, NO.2 |
| 67005 | Panel Sub-assy, Back Door |
| 67281B | Stopper, Back Door, Lower |
| 67293 | Cushion, Back Door Lower Stopper |
| 67372A | Weight, Back Door |
| 67750 | Board Assy, Back Door Trim |
| 67765A | Cover, Back Door Service Hole, NO.1 |
| 67766 | Cover, Back Door Service Hole, NO.2 |
| 67767B | Cover, Back Door Service Hole, NO.3 |
| 67881A | Weatherstrip, Back Door |
| 67937B | Garnish, Back Door Side, RH |
| 67938A | Garnish, Back Door Side, LH |
| 67939B | Garnish, Back Door, Center |
| 68131 | Glass, Back Door |
| 75129C | Cushion, Rear Licence Plate |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
