Toyota Scion TC

2004-05 → 2010-07 · chassis ANT10 · catalogue 277410 · United States

Supported model Data version 2011-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

55 part groups · 6 illustrations

Illustrations

716731H 2004-05 → —

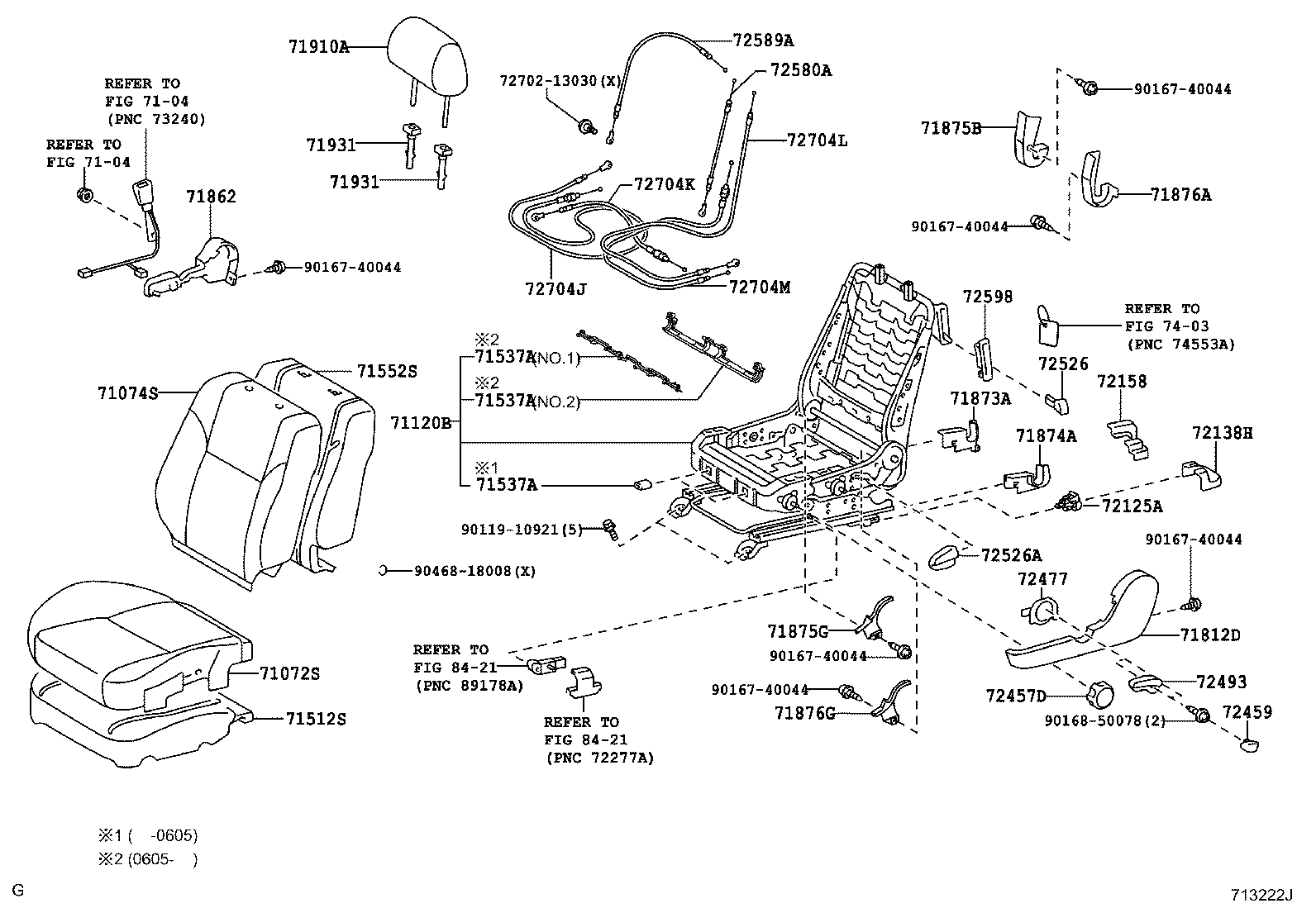

713222J 2004-05 → 2007-04

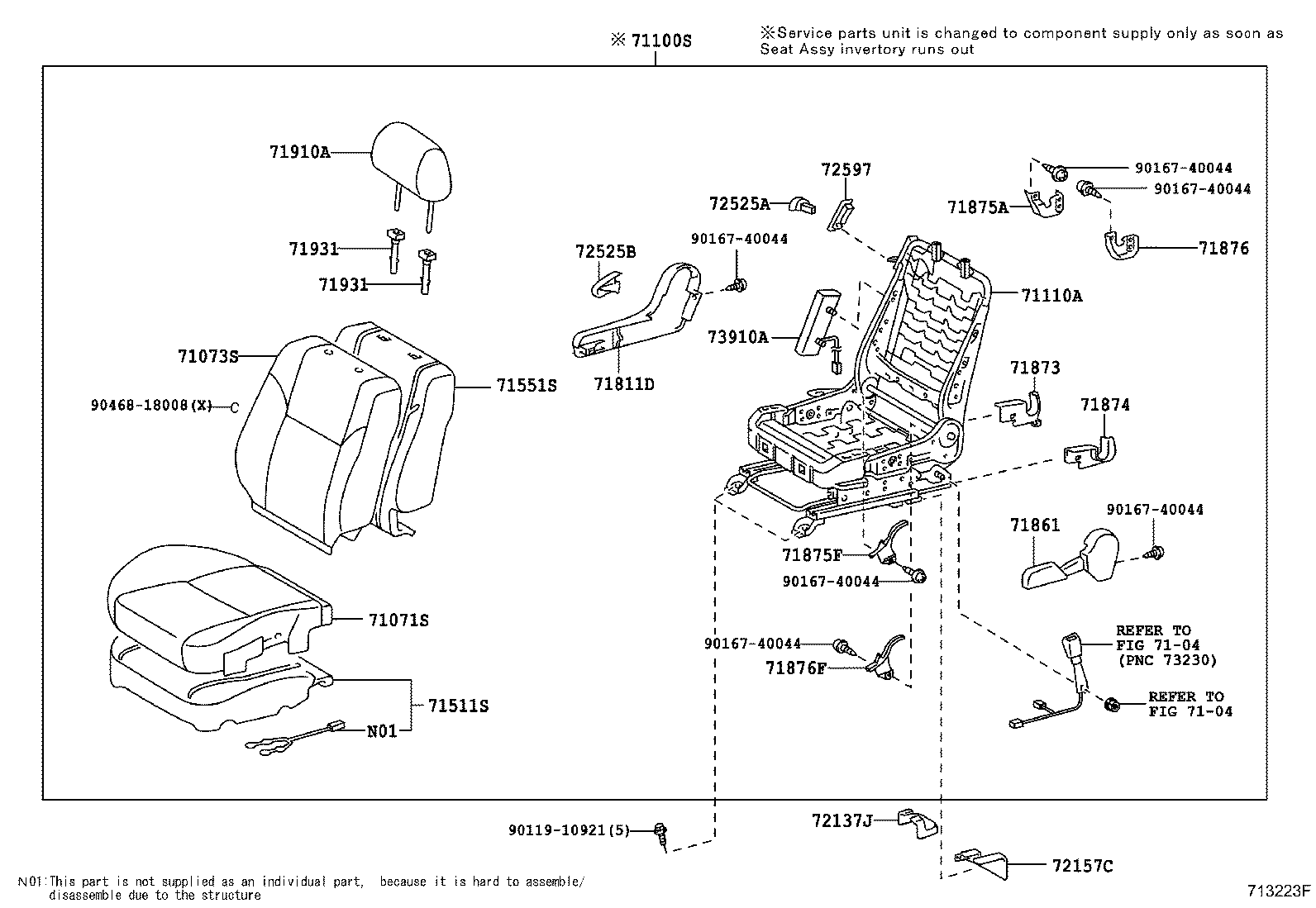

713223F 2004-05 → 2006-05

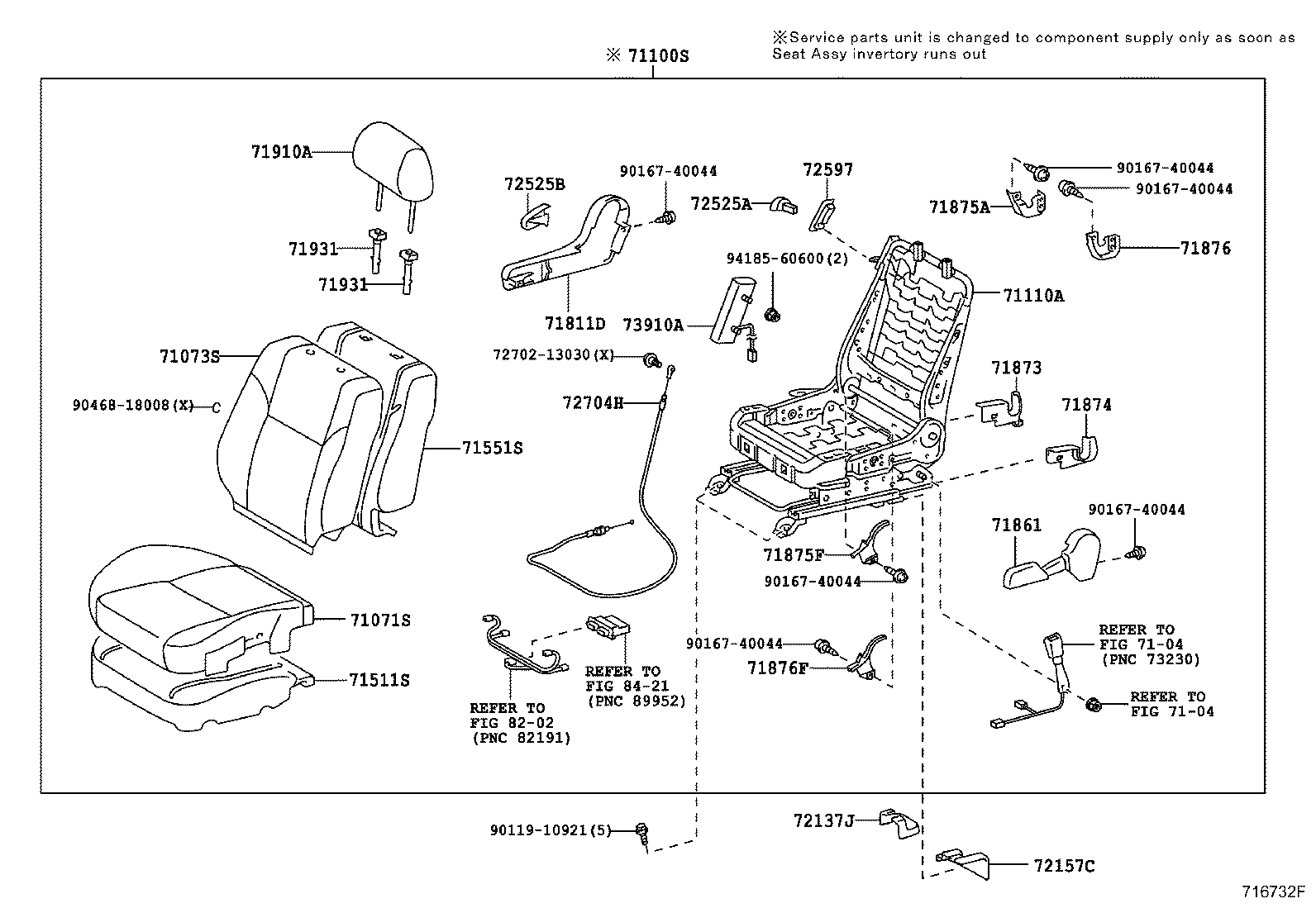

716732F 2006-05 → —

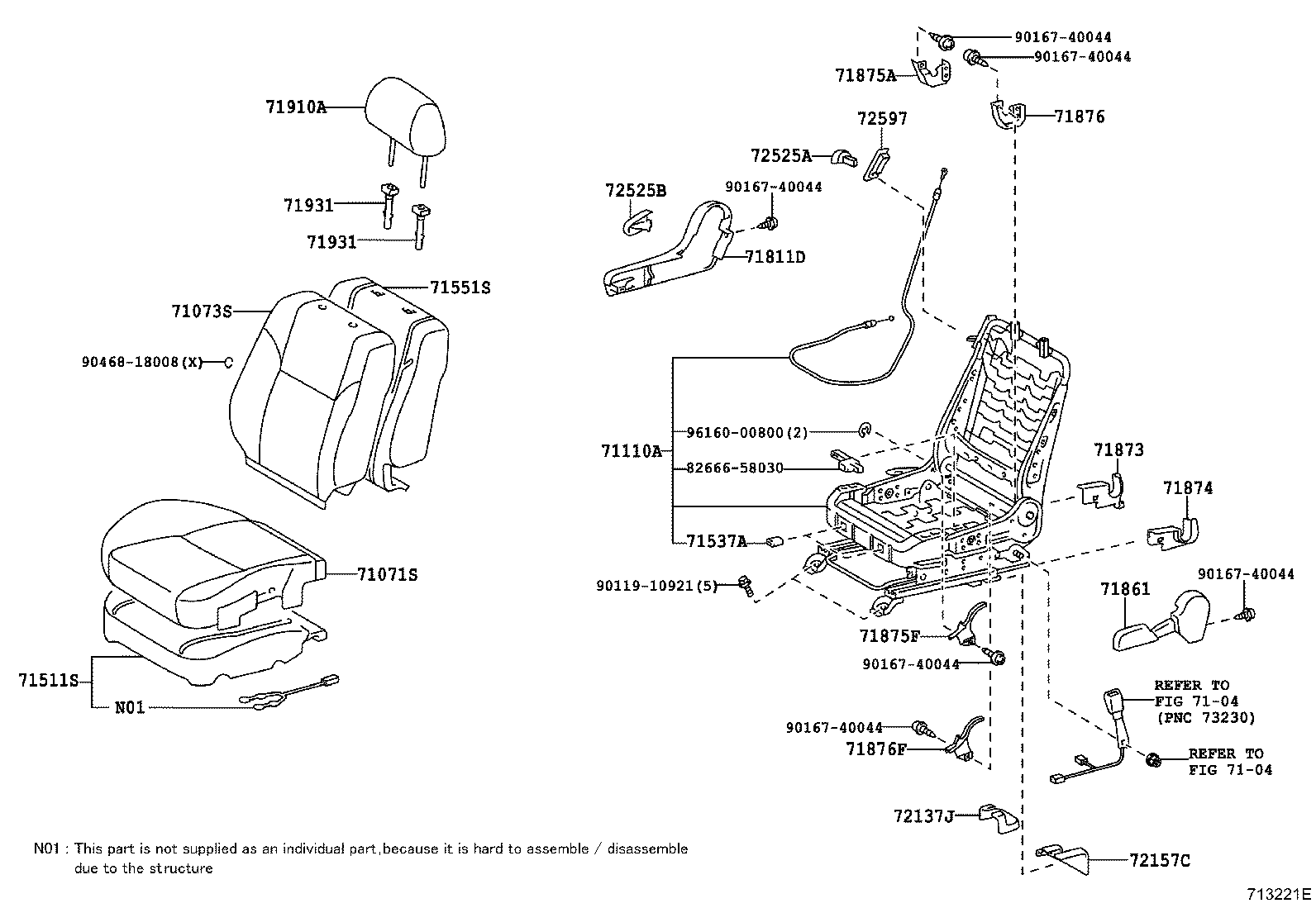

713221E 2004-05 → 2006-05

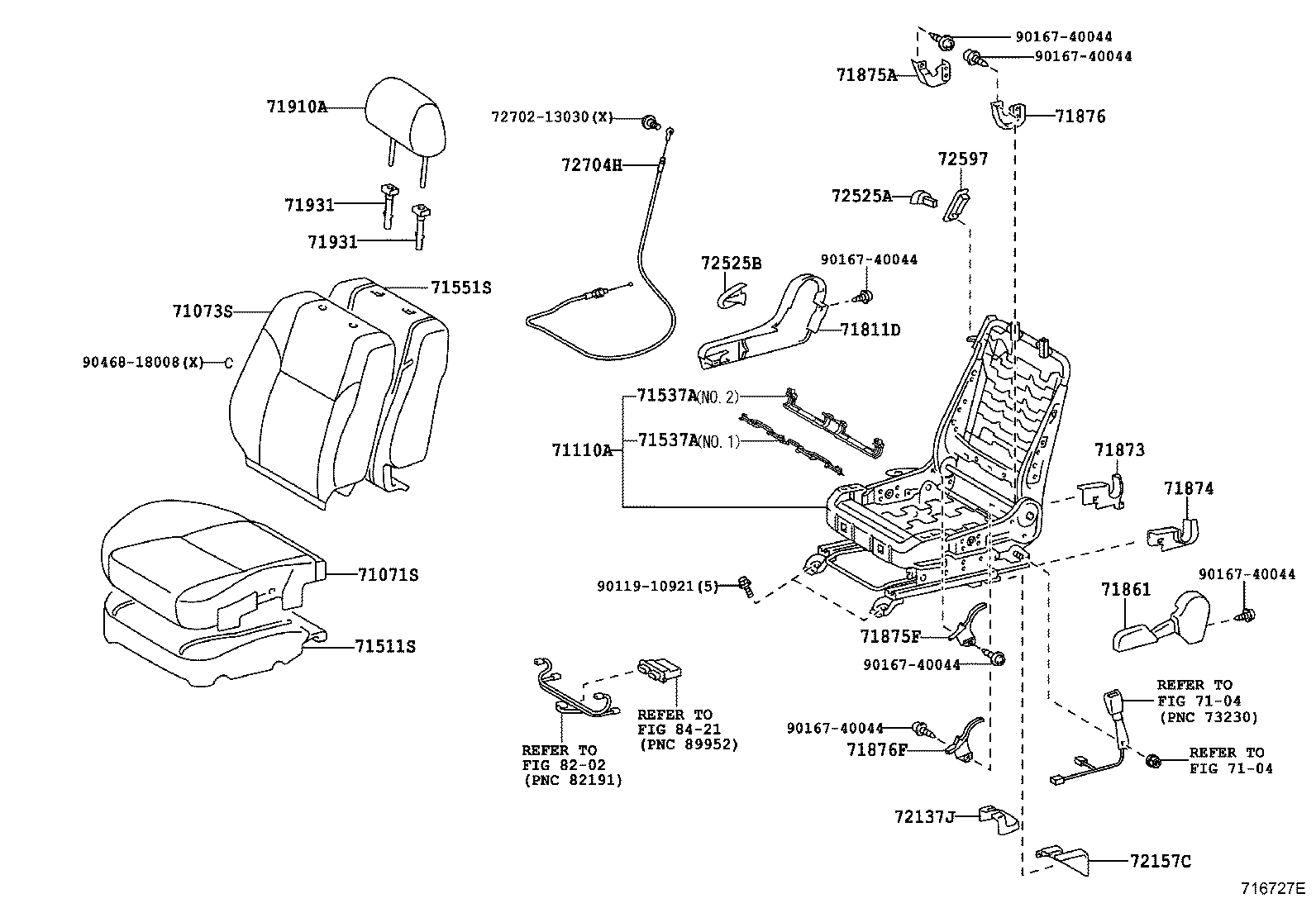

716727E 2006-05 → 2007-04

Part groups

PNC	Description
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71100S	Seat Assy, Front RH
71110A	Frame Assy, Front Seat W/Adjuster, RH
71120B	Frame Assy, Front Seat W/Adjuster, LH
71200S	Seat Assy, Front LH
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537A	Protector, Front Seat Cushion
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71811D	Shield, Front Seat Cushion, RH
71812D	Shield, Front Seat Cushion, LH
71861	Shield, Front Seat Cushion, Inner RH
71862	Shield, Front Seat Cushion, Inner LH
71873	Shield, Front Seat Cushion, Lower RH
71873A	Shield, Front Seat Cushion, Lower
71874	Shield, Front Seat Cushion, Lower LH
71874A	Shield, Front Seat Cushion, Lower LH
71875A	Cover, Reclining Adjuster Inside, RH
71875B	Cover, Reclining Adjuster Inside, RH
71875F	Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71875G	Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876	Cover, Reclining Adjuster Inside, LH
71876A	Cover, Reclining Adjuster Inside, LH
71876F	Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71876G	Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71910A	Headrest Assy, Front Seat
71931	Support, Front Seat Headrest
72125A	Cover, Seat Track, Upper Rear
72137J	Cover, Front Seat Track, RH Rear Outer
72138H	Cover, Front Seat Track, LH Rear Inner
72157C	Cover, Seat Track Bracket, Inner RH
72158	Cover, Seat Track Bracket, Inner LH
72457D	Knob, Vertical Seat Adjuster, LH
72459	Cap, Vertical Seat Adjuster Knob
72477	Spacer, Vertical Adjuster
72493	Handle, Vertical Adjusting, NO.2
72525A	Handle, Reclining Adjuster Release, RH
72525B	Handle, Reclining Adjuster Release, RH
72526	Handle, Reclining Adjuster Release, LH
72526A	Handle, Reclining Adjuster Release, LH
72580A	Cable Assy, Reclining Adjusting, LH
72589A	Cable, Reclining Remote Control
72597	Bezel, Reclining Remote Control
72598	Bezel, Reclining Remote Control Lever, LH
72704H	Cable, Front Seat Reclining Control, NO.1
72704J	Cable, Front Seat Reclining Control, NO.2
72704K	Cable, Front Seat Reclining Control, NO.3
72704L	Cable, Front Seat Reclining Control, NO.4
72704M	Cable, Front Seat Reclining Control, NO.5
73910A	Airbag Assy, Front Seat, RH
73920A	Airbag Assy, Front Seat, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
