Toyota Scion TC

2004-05 → 2010-07 · chassis ANT10 · catalogue 277410 · United States

Supported model Data version 2011-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

16 part groups · 3 illustrations

Illustrations

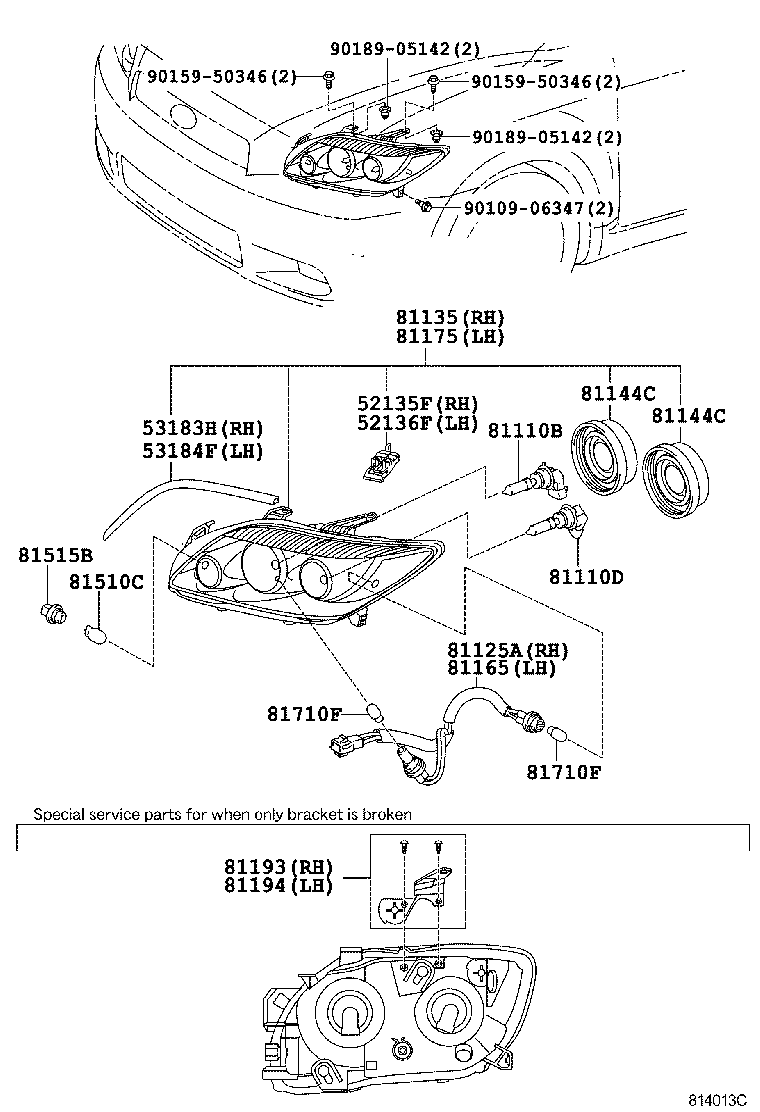

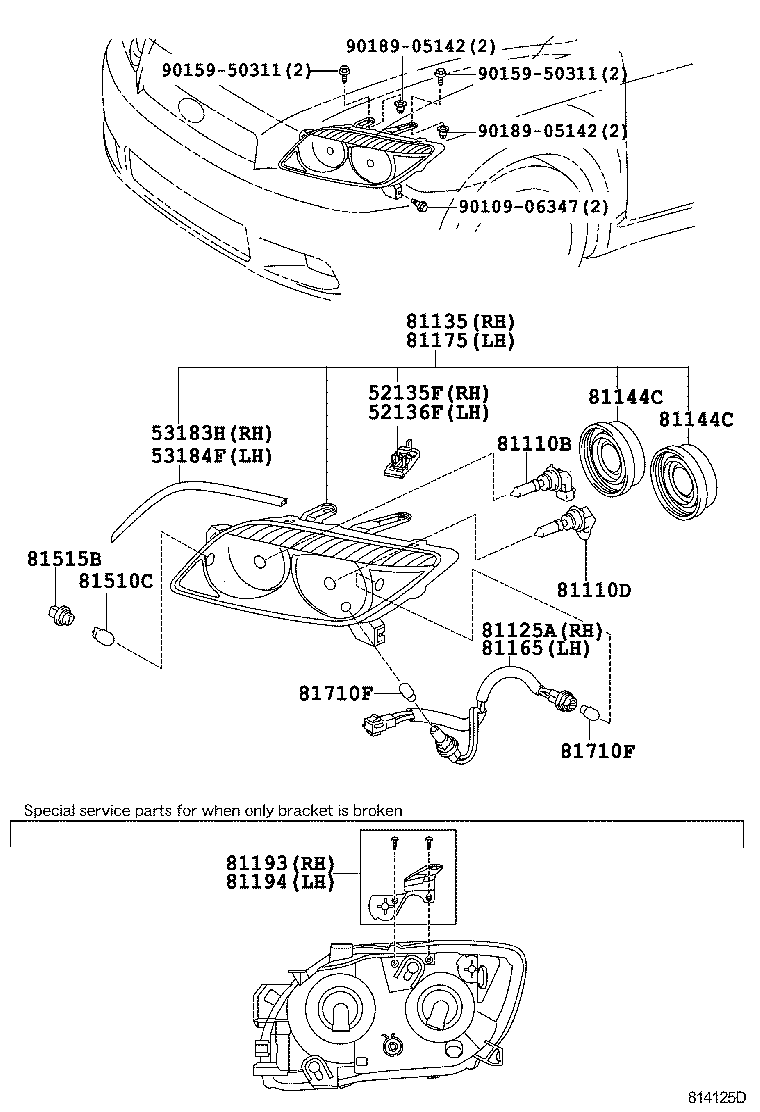

Figure 812784F 812784F 2004-05 → 2007-04 Figure 814125D 814125D 2006-05 → 2008-04 Figure 814013C 814013C 2007-04 → —

Part groups

PNCDescription
52135F Bracket, Front Bumper, NO.1 RH
52136F Bracket, Front Bumper NO.1, LH
53183H Seal, Headlamp Cover, RH
53184F Seal, Headlamp Cover, LH
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81125A Cord, Headlamp, RH
81135 Unit Assy, Headlamp, RH
81144C Cover, Headlamp Socket
81165 Cord, Headlamp, LH
81175 Unit Assy, Headlamp, LH
81193 Retainer, Headlamp Protector, Upper RH
81194 Retainer, Headlamp Protector, Upper LH
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
81710F Bulb, Front Side Maker Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
