Toyota Scion TC

2004-05 → 2010-07 · chassis ANT10 · catalogue 277410 · United States

Supported model Data version 2011-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

17 part groups · 8 illustrations

Illustrations

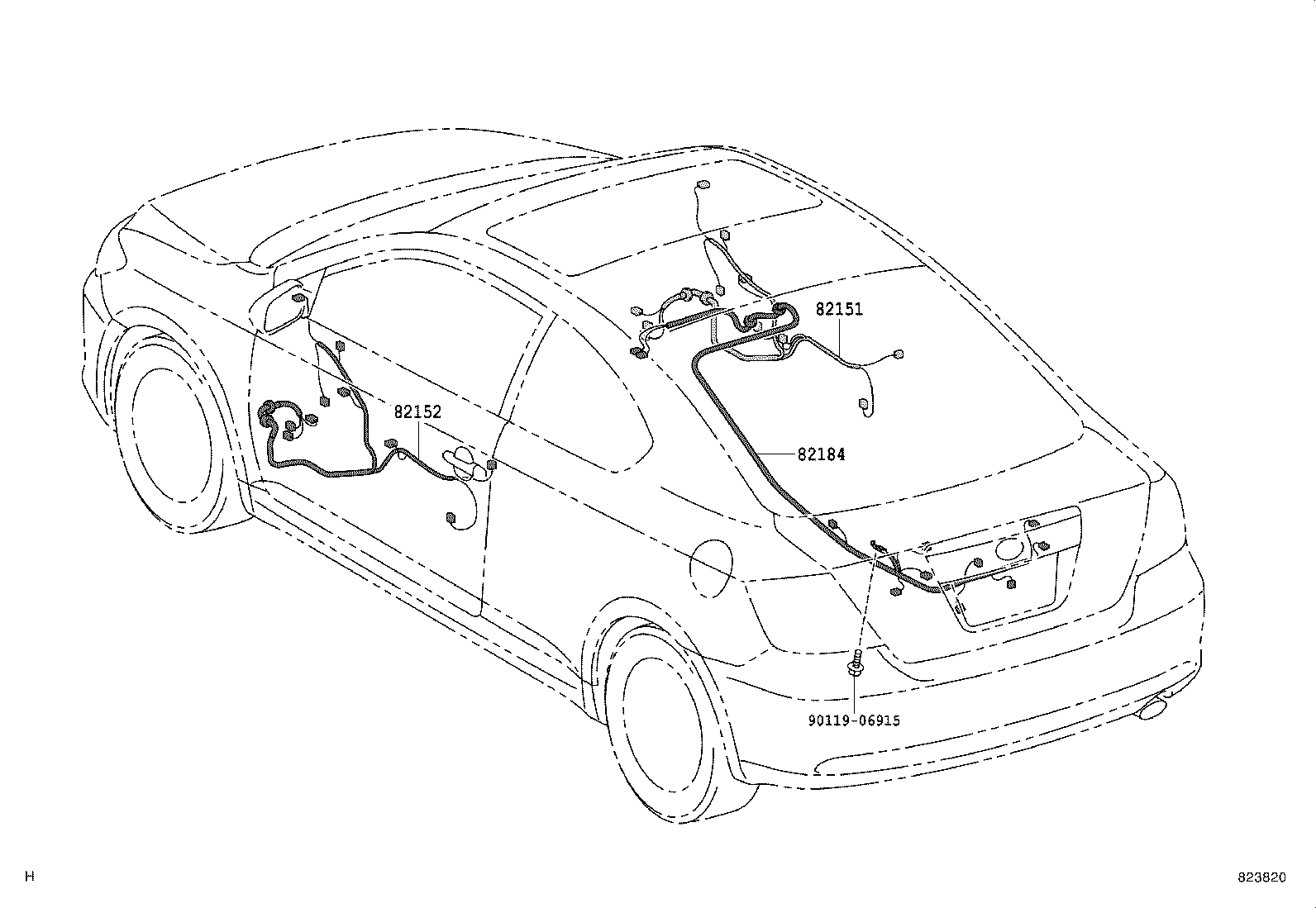

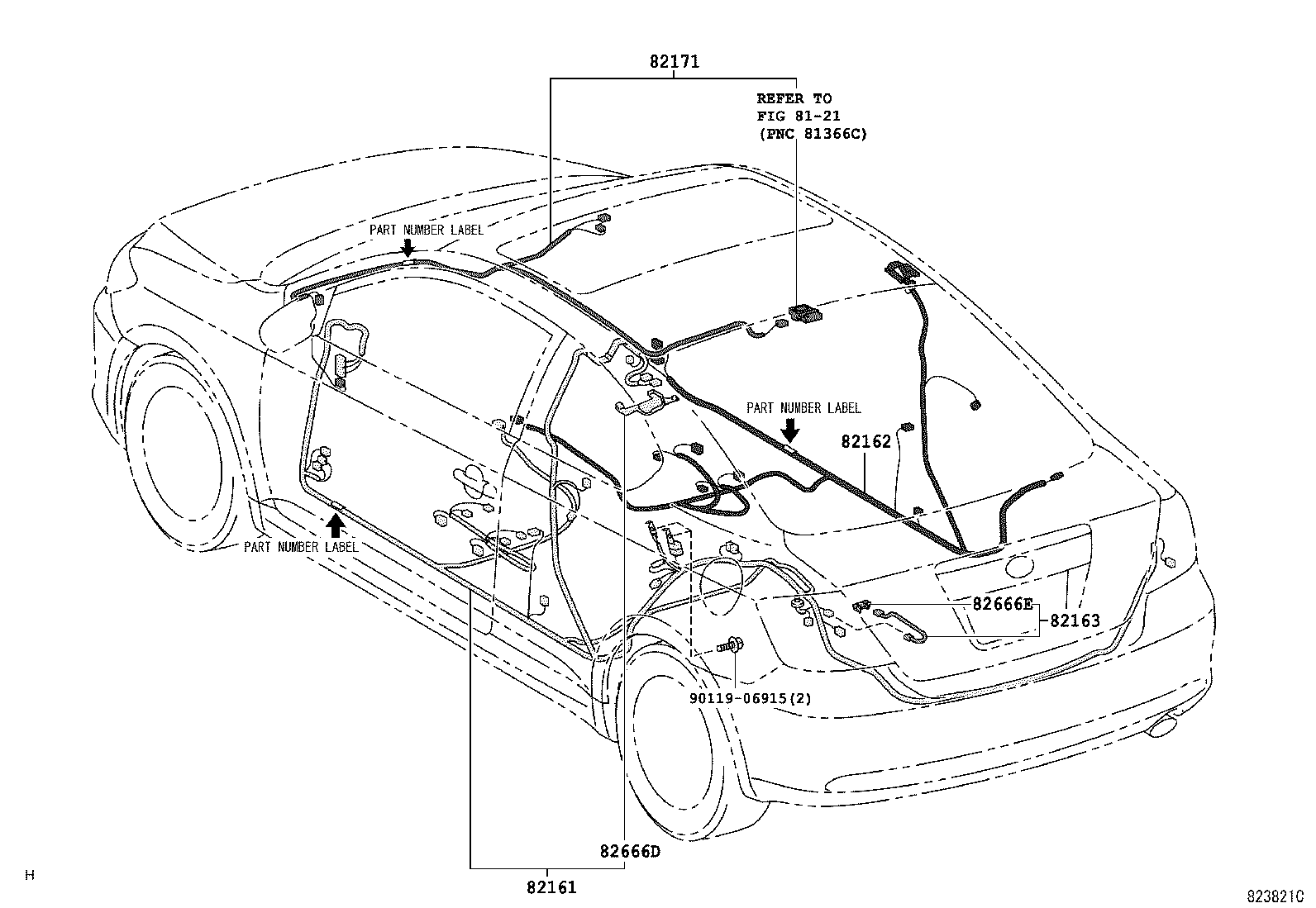

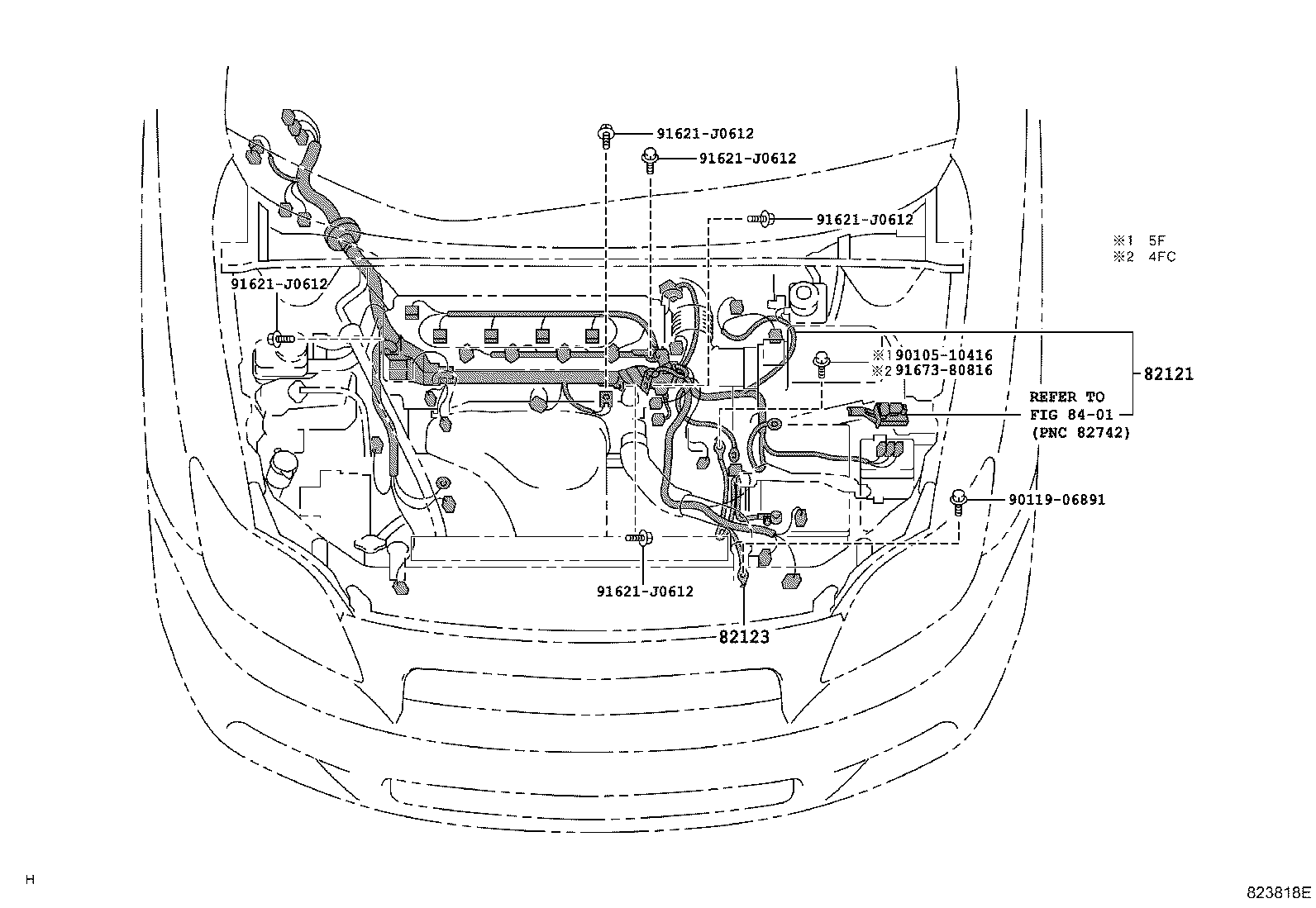

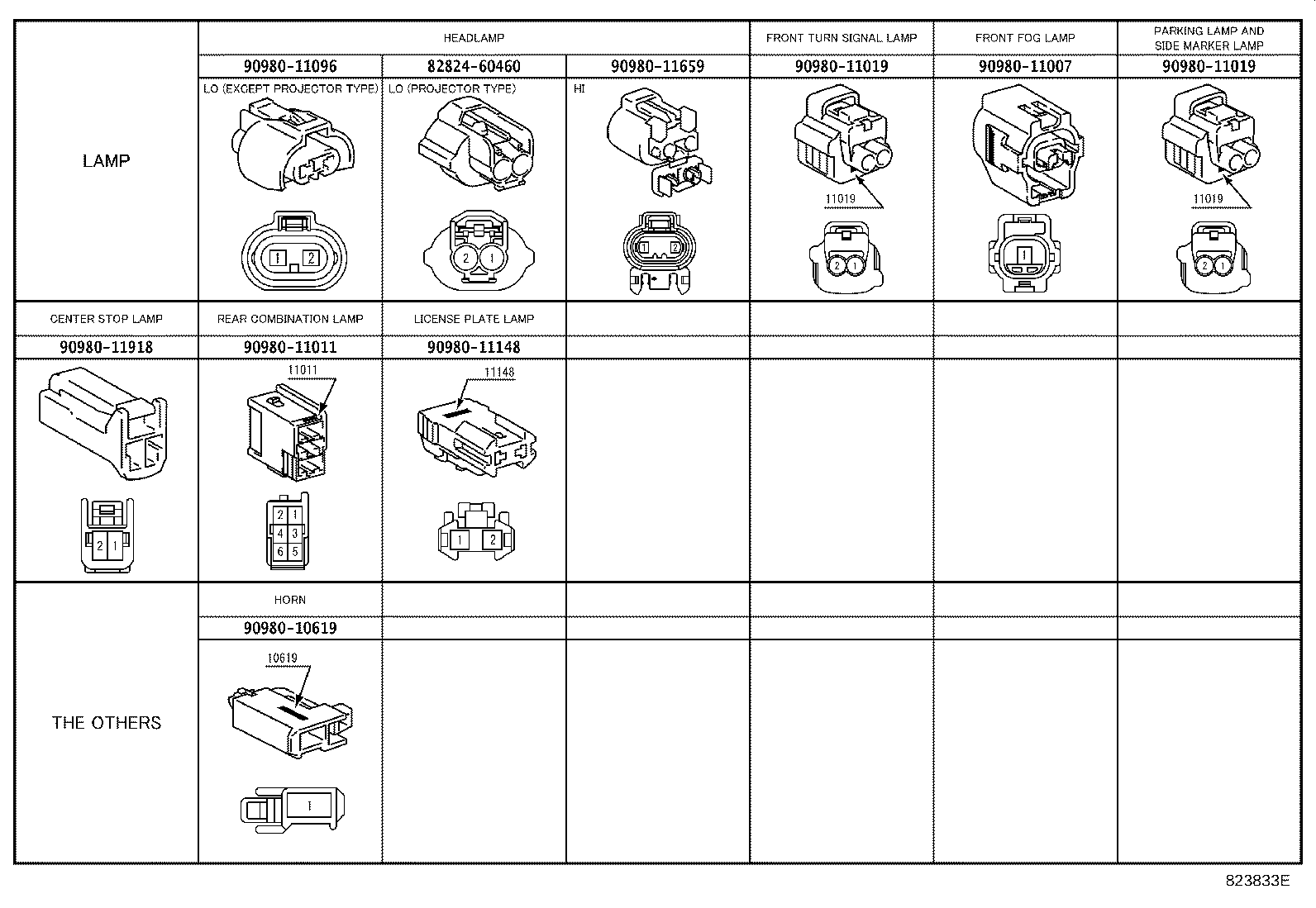

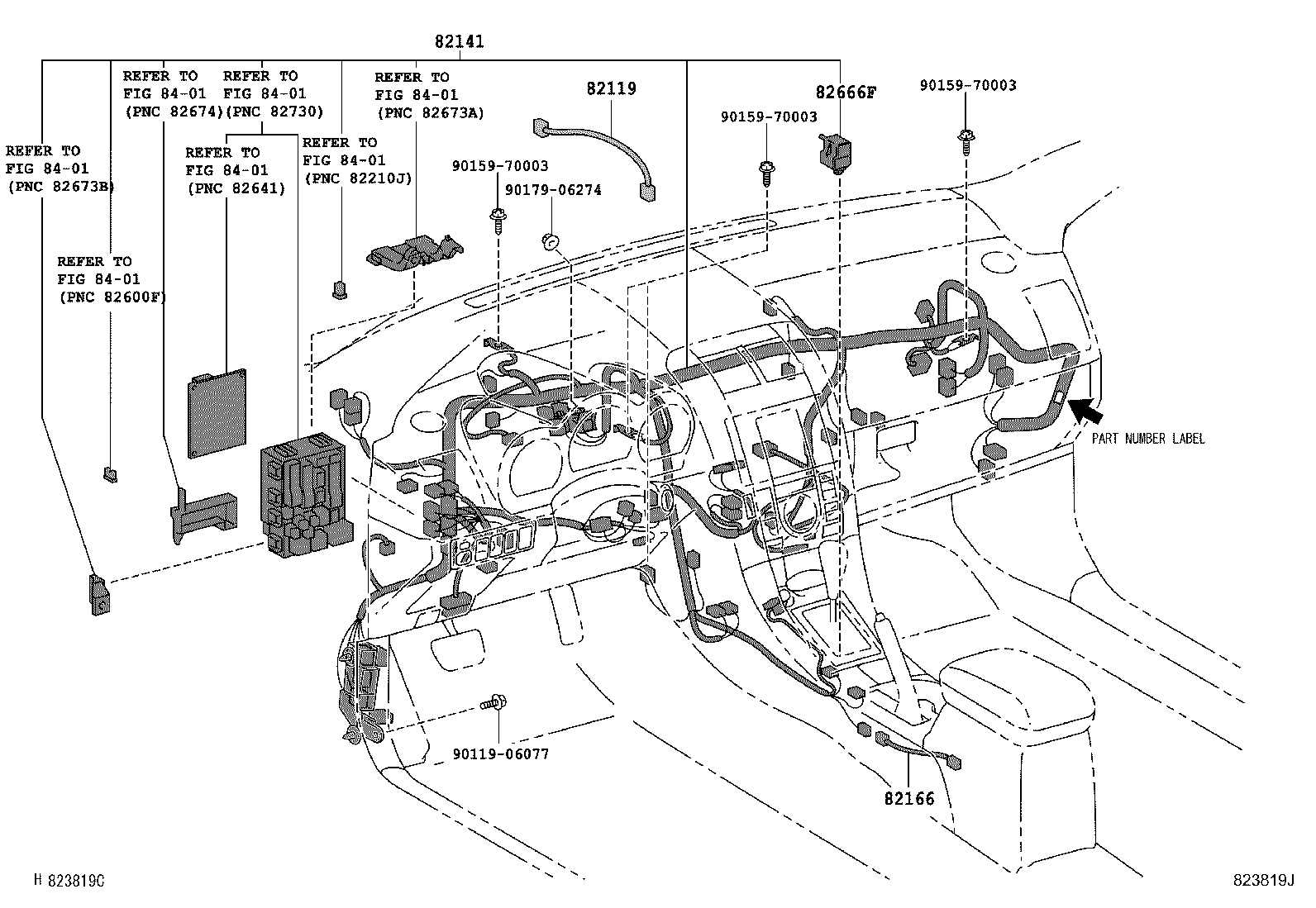

Figure 823817H 823817H 2004-05 → — Figure 823818E 823818E 2004-05 → — Figure 823819J 823819J 2004-05 → — Figure 823820 823820 2004-05 → — Figure 823821C 823821C 2004-05 → — Figure 825222 825222 2006-05 → — Figure 823822A 823822A 2004-05 → — Figure 823833E 823833E 2004-05 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82119 Wire, Sensor
82121 Wire, Engine
82123 Wire, Engine, NO.3
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82166 Wire, Console Box
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82191 Wire, Front Seat, RH
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
