Toyota Scion TC

2004-05 → 2010-07 · chassis ANT10 · catalogue 277410 · United States

Supported model Data version 2011-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

12 part groups · 3 illustrations

Illustrations

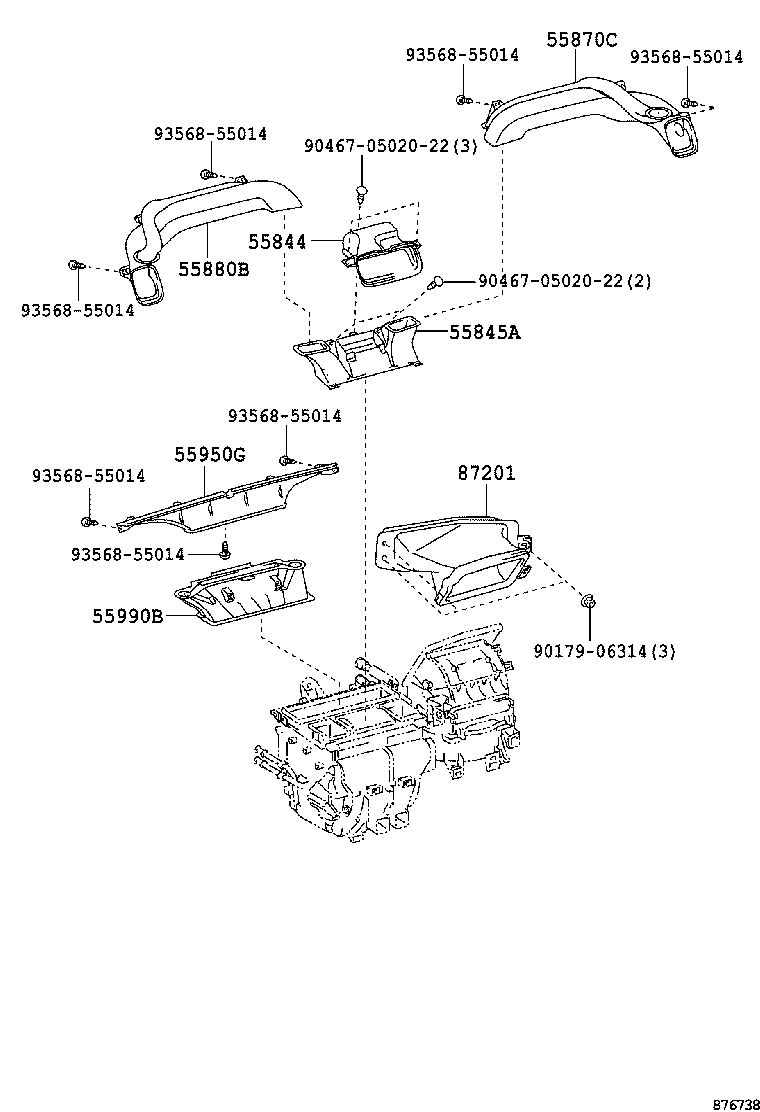

Figure 876737B 876737B 2004-05 → — Figure 876738 876738 2004-05 → — Figure 876739 876739 2004-05 → —

Part groups

PNCDescription
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55870C Duct Assy, Boot TO Register, RH
55880B Duct Assy, Boot TO Register LH
55911A Base, Heater Control
55912E Base, Heater Control, Lower
55932A Guide, Heater Control
55937C Knob, Center Cluster Module
55950G Nozzle Assy, Defroster
55990B Nozzle Assy, Defroster, Lower
87201 Duct Sub-assy, Air, NO.1
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
