Toyota Scion TC
2010-08 → 2016-06 · chassis AGT20 · catalogue 277420 · United States
Supported model
Data version 2016-12

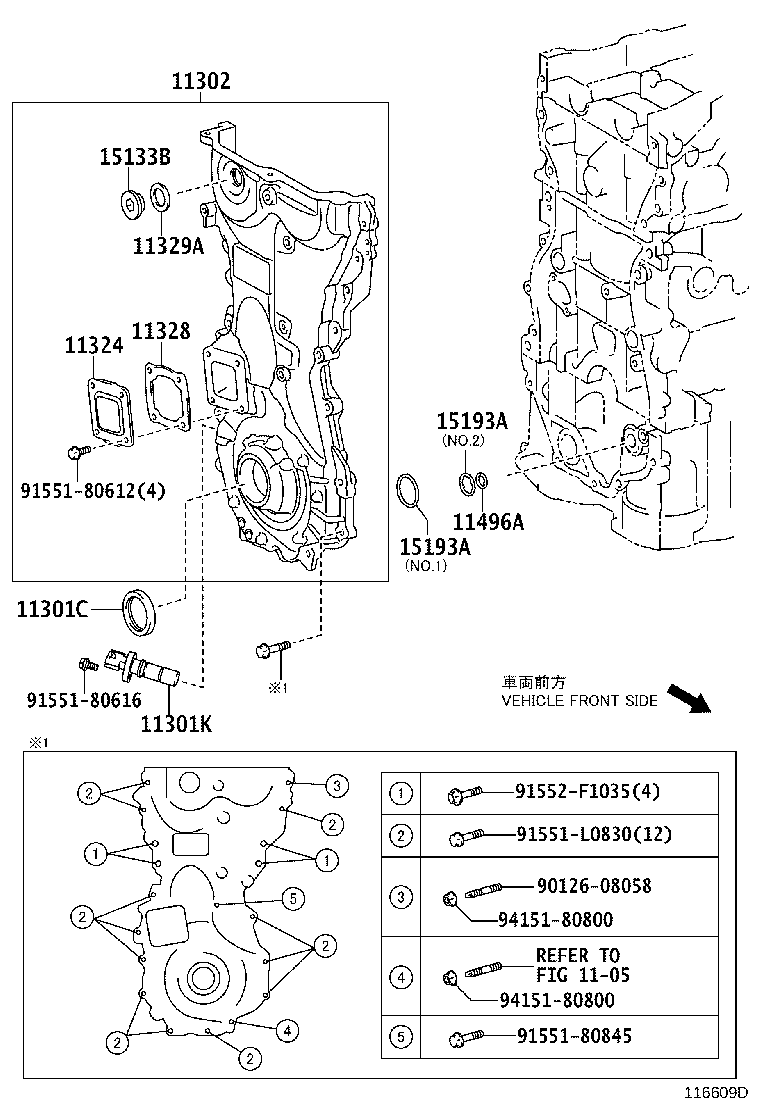

Timing Gear Cover & Rear End Plate
9 part groups · 1 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 11301C | Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE) |
| 11301K | Sensor, Crank Position |
| 11302 | Cover Sub-assy, Timing Chain OR Belt |
| 11324 | Plate, Timing Chain Cover |
| 11328 | Gasket, Timing Gear OR Chain Cover |
| 11329A | Gasket, Timing Belt OR Chain Cover, NO.2 |
| 11496A | Gasket, Oil Hole Cover |
| 15133B | Plug, Oil Pump Relief Valve |
| 15193A | Gasket, Oil Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
