Toyota Scion TC
2010-08 → 2016-06 · chassis AGT20 · catalogue 277420 · United States
Supported model
Data version 2016-12

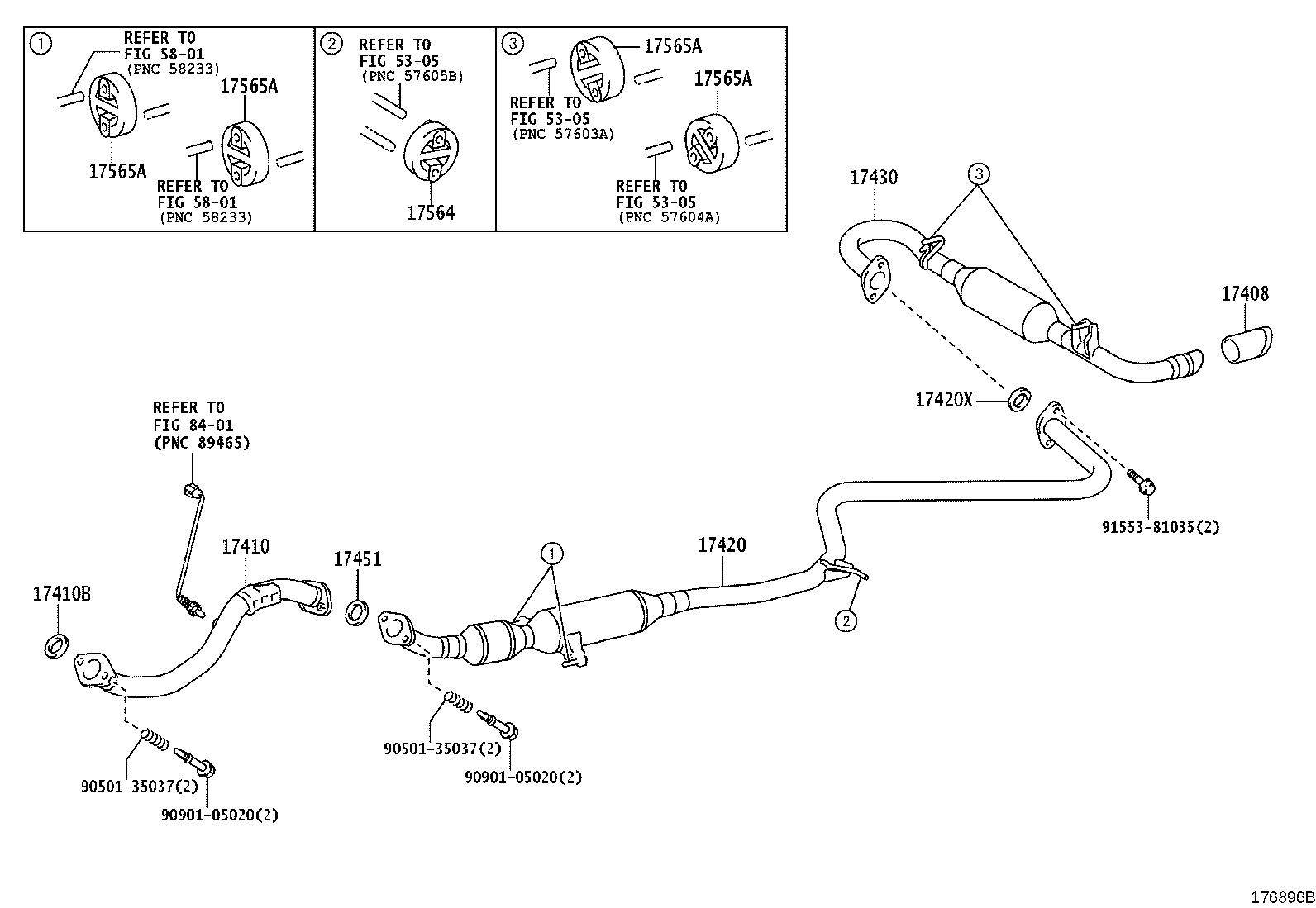

Exhaust Pipe
9 part groups · 1 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 17408 | Baffle Sub Assy, Exhaust Tailpipe |
| 17410 | Pipe Assy, Exhaust, Front |
| 17410B | Gasket, Exhaust Pipe |
| 17420 | Pipe Assy, Exhaust, Center |
| 17420X | Gasket, Exhaust Pipe, Center |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17451 | Gasket, Exhaust Pipe |
| 17564 | Support,Exhaust Pipe, NO.4 |
| 17565A | Support, Exhaust Pipe, NO.4 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
