Toyota Scion TC
2010-08 → 2016-06 · chassis AGT20 · catalogue 277420 · United States
Supported model
Data version 2016-12

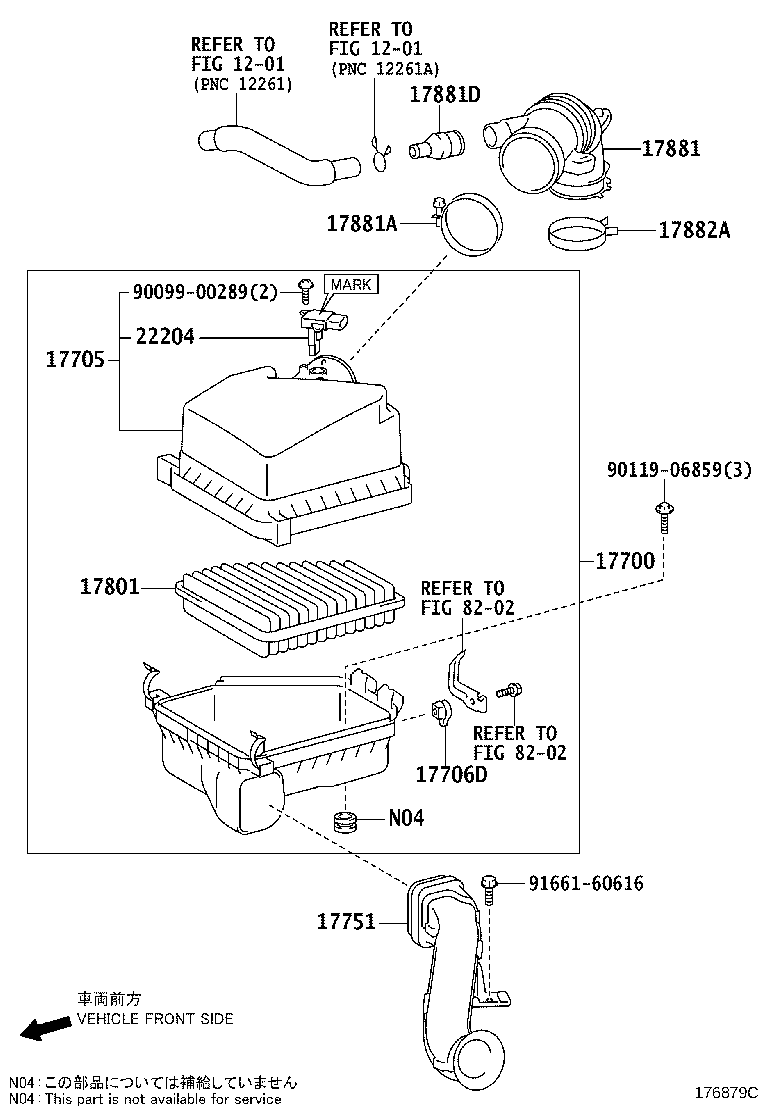

Air Cleaner
10 part groups · 1 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 17700 | Cleaner Assy, Air |
| 17705 | Cap Sub-assy, Air Cleaner |
| 17706D | Stay Sub-assy, Air Cleaner |
| 17751 | Inlet, Air Cleaner, NO.1 |
| 17801 | Element Sub-assy, Air Cleaner Filter |
| 17881 | Hose, Air Cleaner, NO.1 |
| 17881A | Clamp(FOR AIR CLEANER HOSE, NO.1) |
| 17881D | Tube, Union(FOG AIR CLEANER HOSE) |
| 17882A | Clamp(FOR AIR CLEANER HOSE, NO.2) |
| 22204 | Meter Sub-assy, Intake Air Flow |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
