Toyota Scion TC
2010-08 → 2016-06 · chassis AGT20 · catalogue 277420 · United States
Supported model
Data version 2016-12

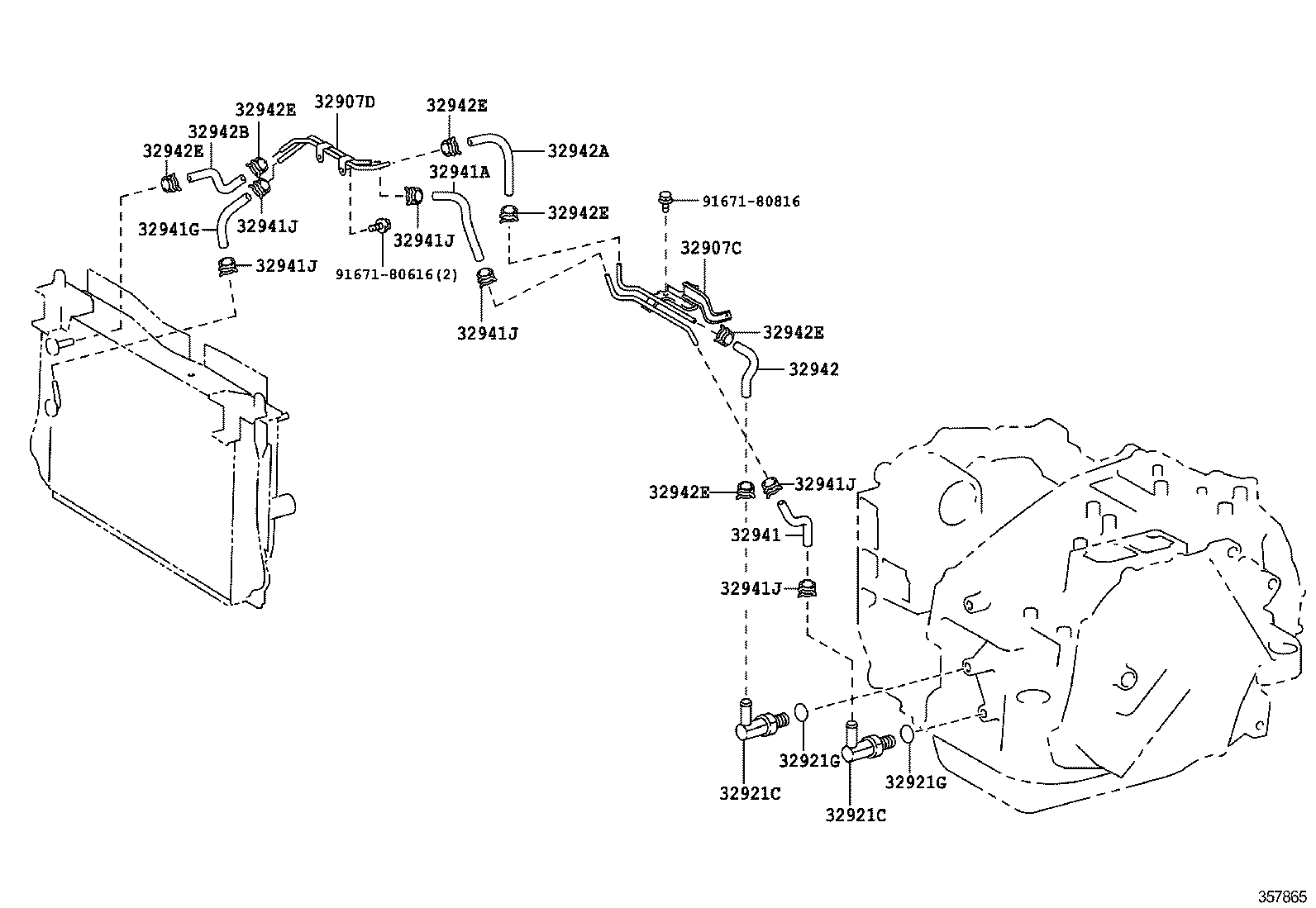

Oil Cooler & Tube (ATM)
12 part groups · 1 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 32907C | Tube Sub-assy, Oil Cooler W/O Hose, NO.1 |
| 32907D | Tube Sub-assy, Oil Cooler W/O Hose, NO.2 |
| 32921C | Union(FOR OIL COOLER TUBE) |
| 32921G | Ring, O(FOR OIL COOLER TUBE UNION) |
| 32941 | Hose, Oil Cooler Inlet, NO.1 |
| 32941A | Hose, Oil Cooler Inlet, NO.2 |
| 32941G | Hose, Oil Cooler Inlet, NO.3 |
| 32941J | Clip, NO.1(FOR OIL COOLER HOSE) |
| 32942 | Hose, Oil Cooler Outlet, NO.1 |
| 32942A | Hose, Oil Cooler Outlet, NO.2 |
| 32942B | Hose, Oil Cooler Outlet, NO.3 |
| 32942E | Clip, NO.2(FOR OIL COOLER HOSE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
