Toyota Scion TC
2010-08 → 2016-06 · chassis AGT20 · catalogue 277420 · United States
Supported model
Data version 2016-12
Parking Brake & Cable
11 part groups · 1 illustrations

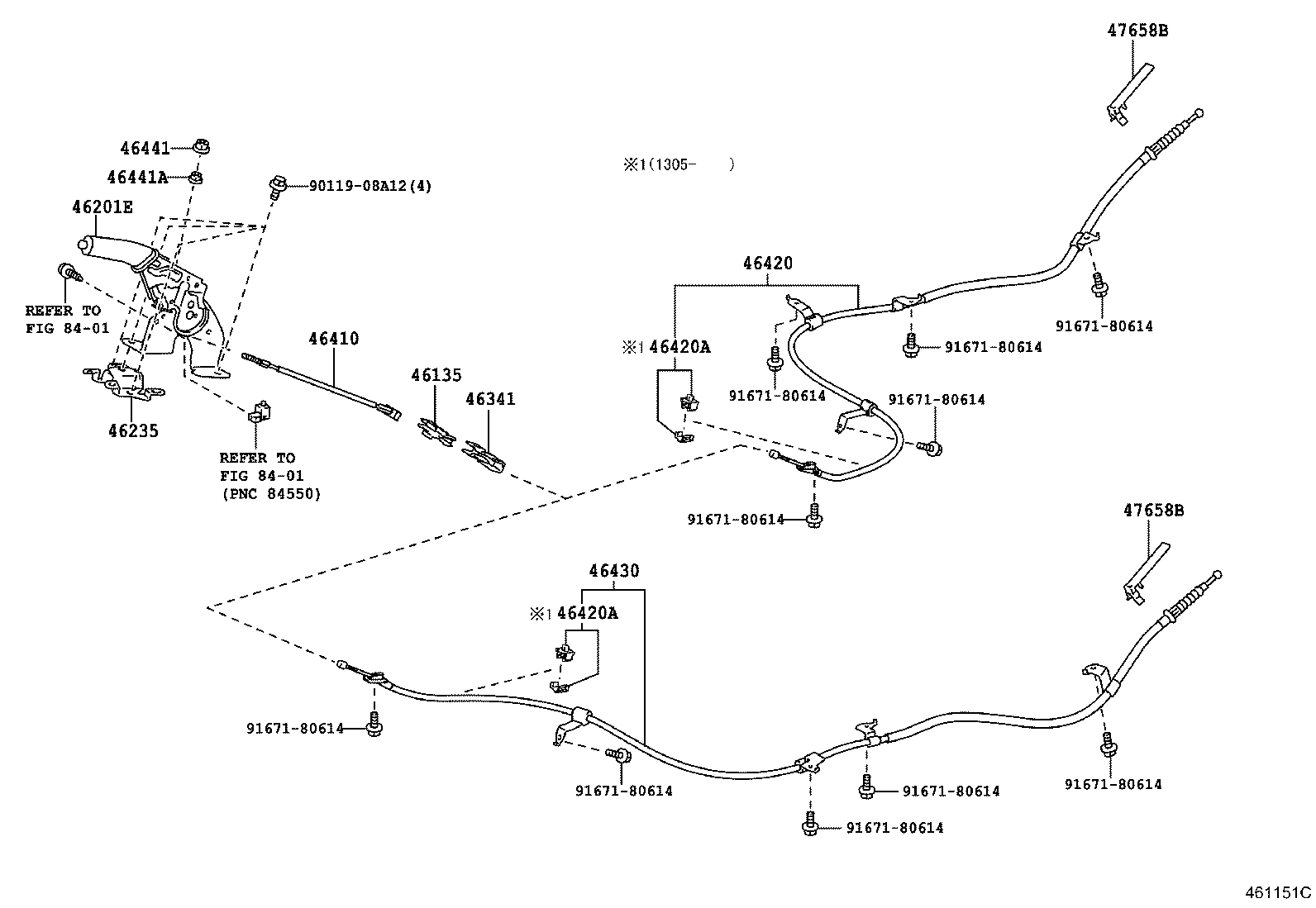

Illustrations
Part groups
| PNC | Description |
|---|---|
| 46135 | Stopper, Parking Brake Cable End |
| 46201E | Lever Sub-assy, Parking Brake |
| 46235 | Bracket, Parking Brake Lever Support |
| 46341 | Equalizer, Parking Brake |
| 46410 | Cable Assy, Parking Brake, NO.1 |
| 46420 | Cable Assy, Parking Brake, NO.2 |
| 46420A | Clamp, NO.1(FOR PARKING BRAKE CABLE) |
| 46430 | Cable Assy, Parking Brake, NO.3 |
| 46441 | Nut, Wire Adjusting, NO.1 |
| 46441A | Nut, Wire Adjusting, NO.2 |
| 47658B | Protector, Parking Brake Lever |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
