Toyota Scion TC
2010-08 → 2016-06 · chassis AGT20 · catalogue 277420 · United States
Supported model
Data version 2016-12

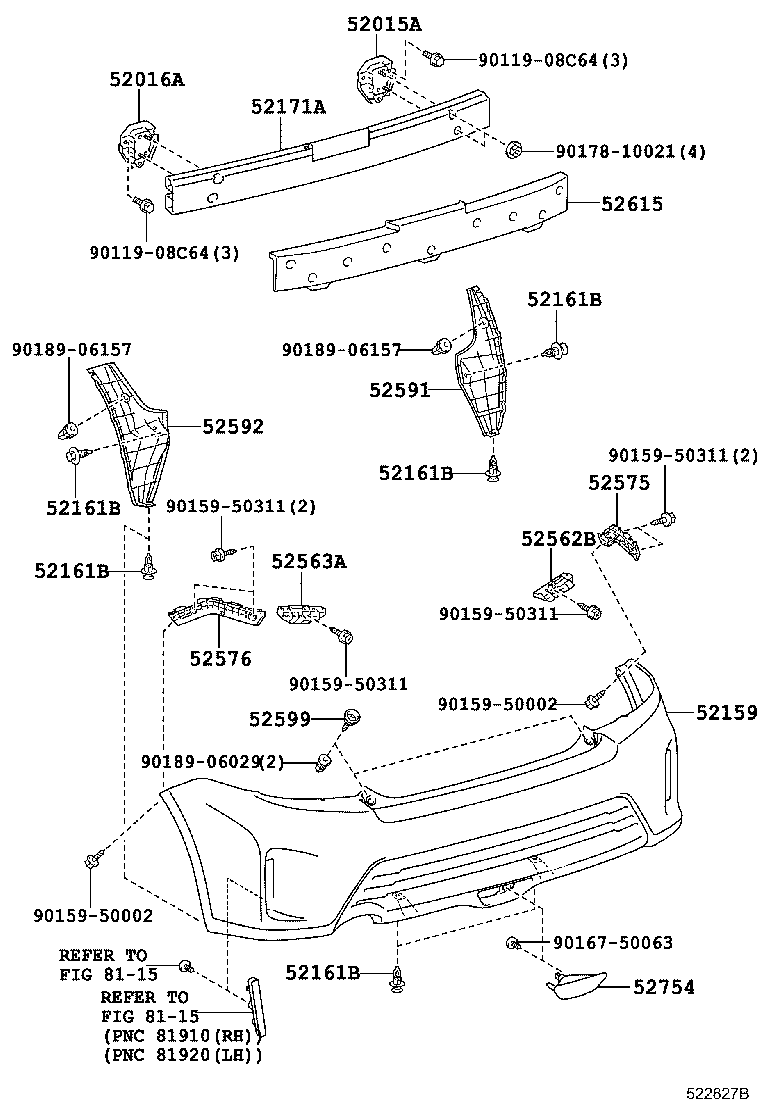

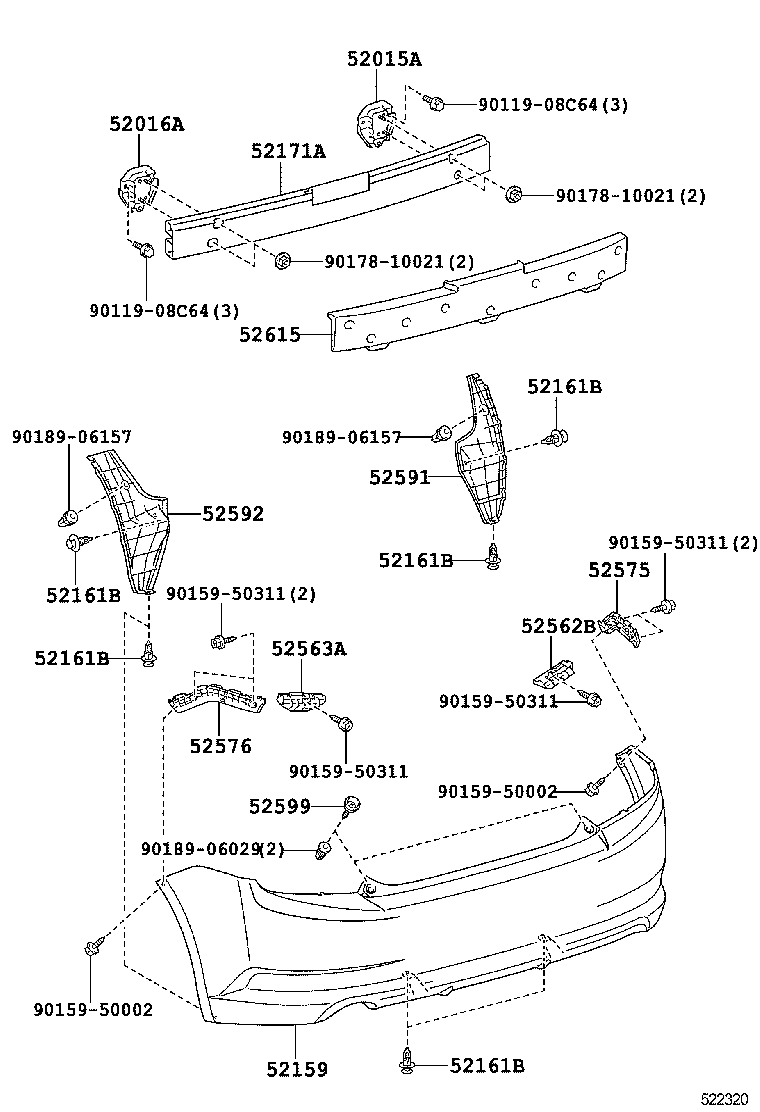

Rear Bumper & Bumper Stay
14 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52015A | Arm Sub-assy, Rear Bumper, RH |
| 52016A | Arm Sub-assy, Rear Bumper, LH |
| 52159 | Cover, Rear Bumper |
| 52161B | Piece, Rear Bumper |
| 52171A | Reinforcement, Rear Bumper, NO.1 |
| 52562B | Retainer, Rear Bumper, Upper RH |
| 52563A | Retainer, Rear Bumper, Upper LH |
| 52575 | Retainer, Rear Bumper Side, RH |
| 52576 | Retainer, Rear Bumper Side, LH |
| 52591 | Seal, Rear Bumper Side, RH |
| 52592 | Seal, Rear Bumper Side, LH |
| 52599 | Stopper, Rear Bumper, Upper |
| 52615 | Absorber, Rear Bumper Energy |
| 52754 | Moulding, Rear Bumper, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
