Toyota Scion TC
2010-08 → 2016-06 · chassis AGT20 · catalogue 277420 · United States
Supported model
Data version 2016-12

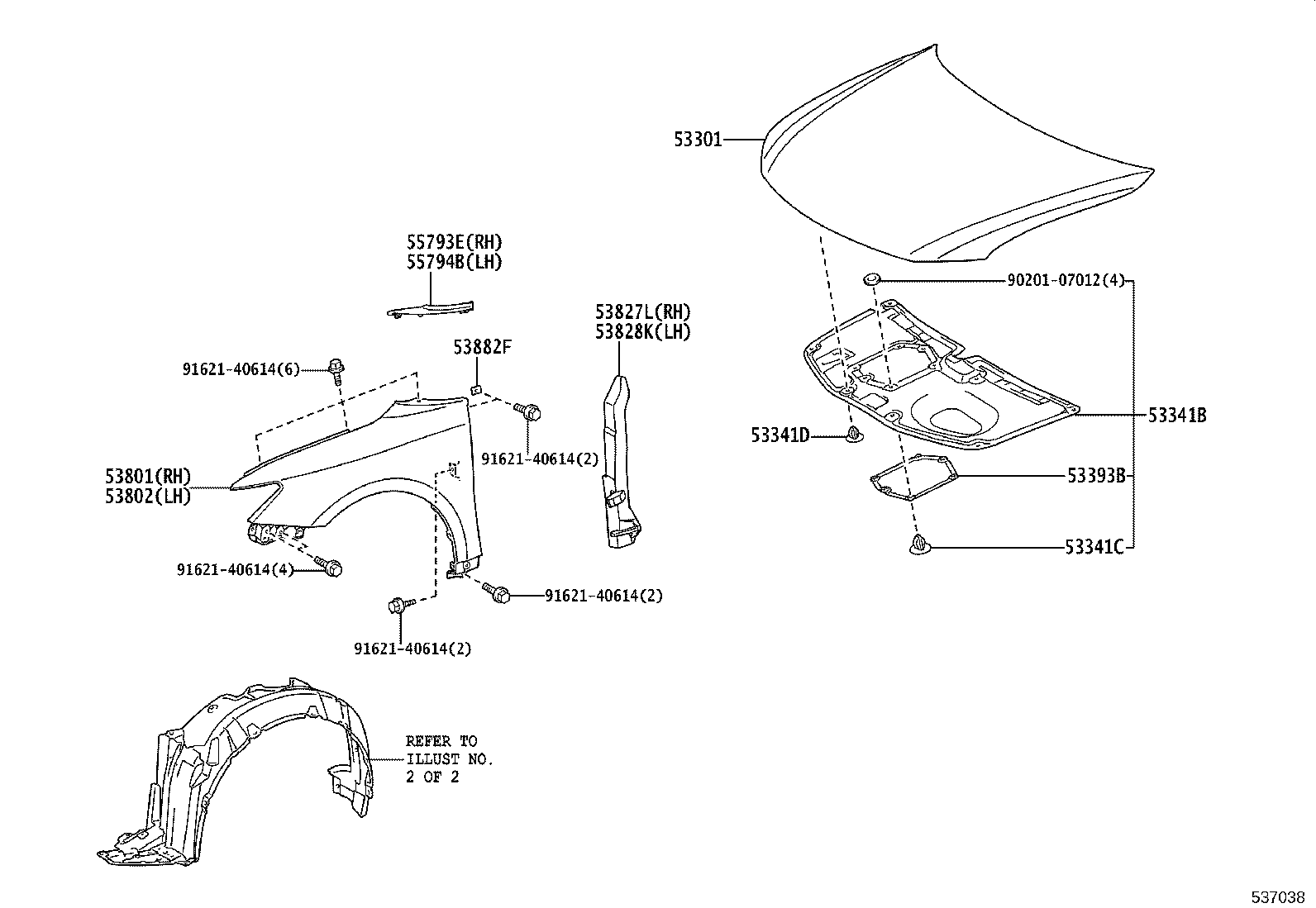

Hood & Front Fender
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53301 | Hood Sub-assy |
| 53341B | Insulator, Hood |
| 53341C | Clip(FOR HOOD INSULATOR) |
| 53341D | Clip(FOR HOOD INSULATER) |
| 53393B | Protector, Hood, Front |
| 53801 | Fender Sub-assy, Front RH |
| 53802 | Fender Sub-assy, Front LH |
| 53827L | Protector, Front Fender Side Panel, RH |
| 53828K | Protector, Front Fender Side Panel, LH |
| 53851D | Pad, Front Wheel Opening Extension, RH |
| 53852B | Pad, Front Wheel Opening Extension, LH |

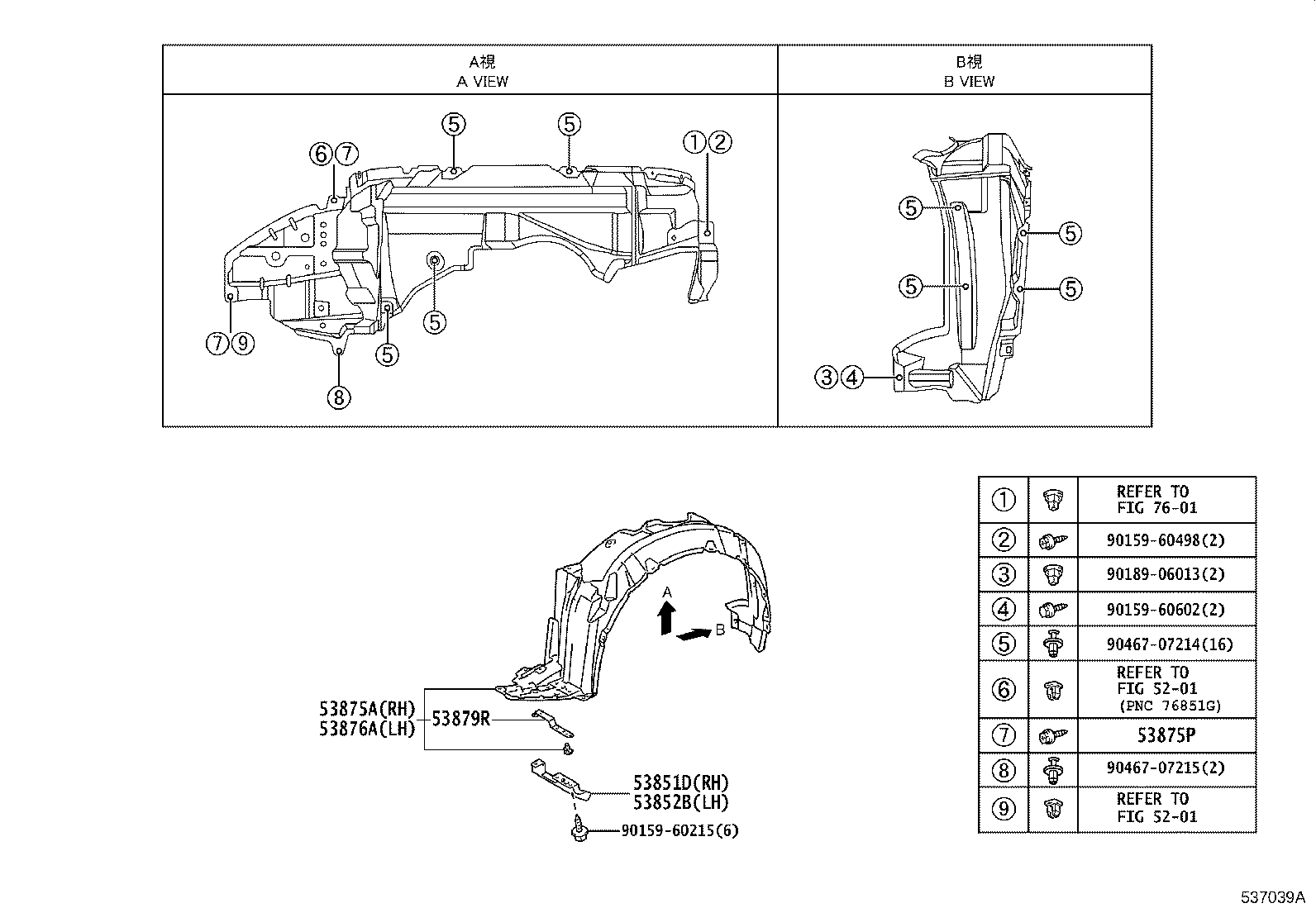

| 53875A | Liner, Front Fender, RH |
| 53875P | Screw, NO.1 |
| 53876A | Liner, Front Fender, LH |
| 53879R | Retainer, Front Fender Liner |
| 53882F | Seal, Front Fender |
| 55793E | Cover, Cowl Reinforcement, Upper NO.2 RH |
| 55794B | Cover, Cowl Reinforcement, Upper NO.2 LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
