Toyota Scion TC
2010-08 → 2016-06 · chassis AGT20 · catalogue 277420 · United States
Supported model
Data version 2016-12

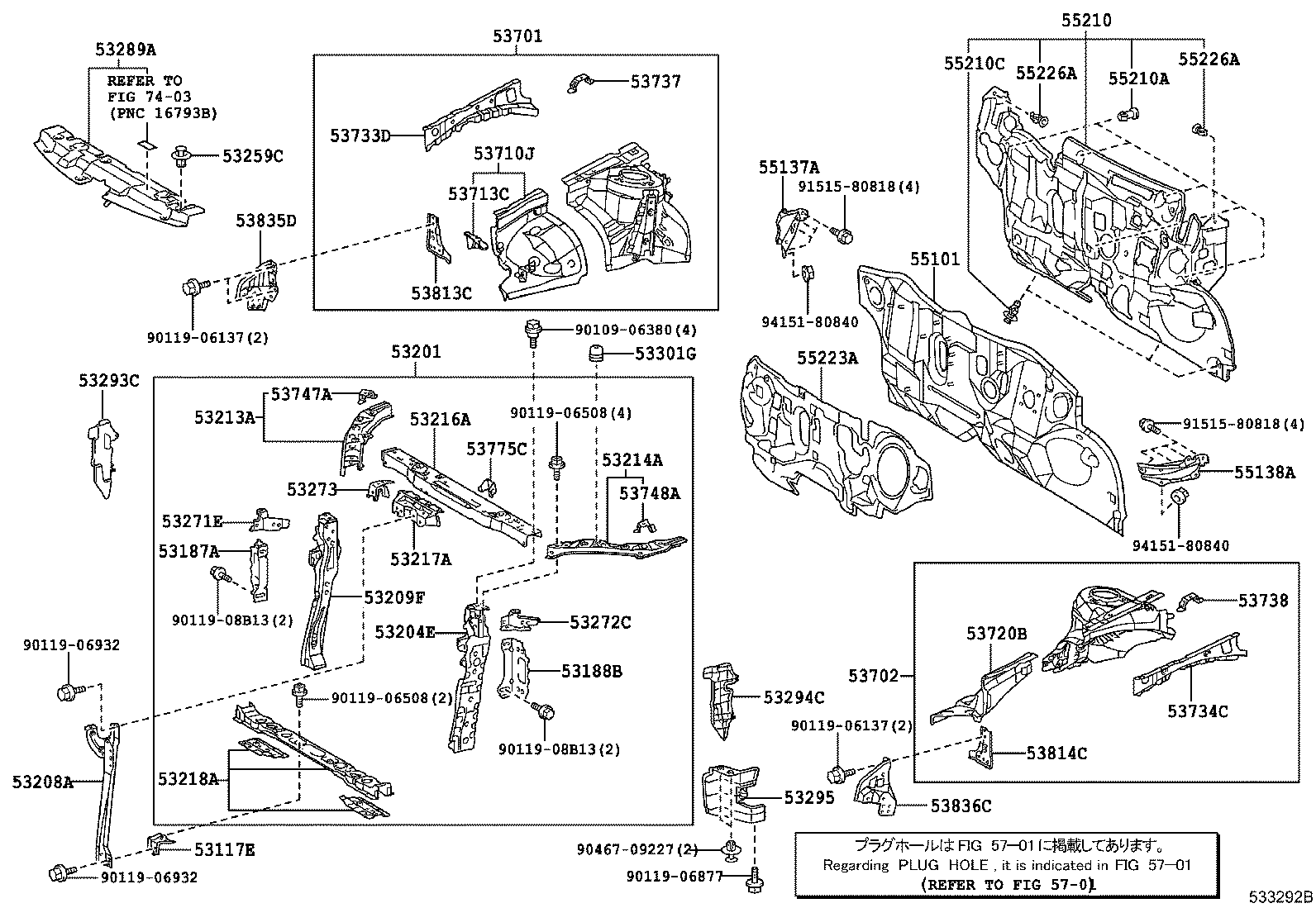

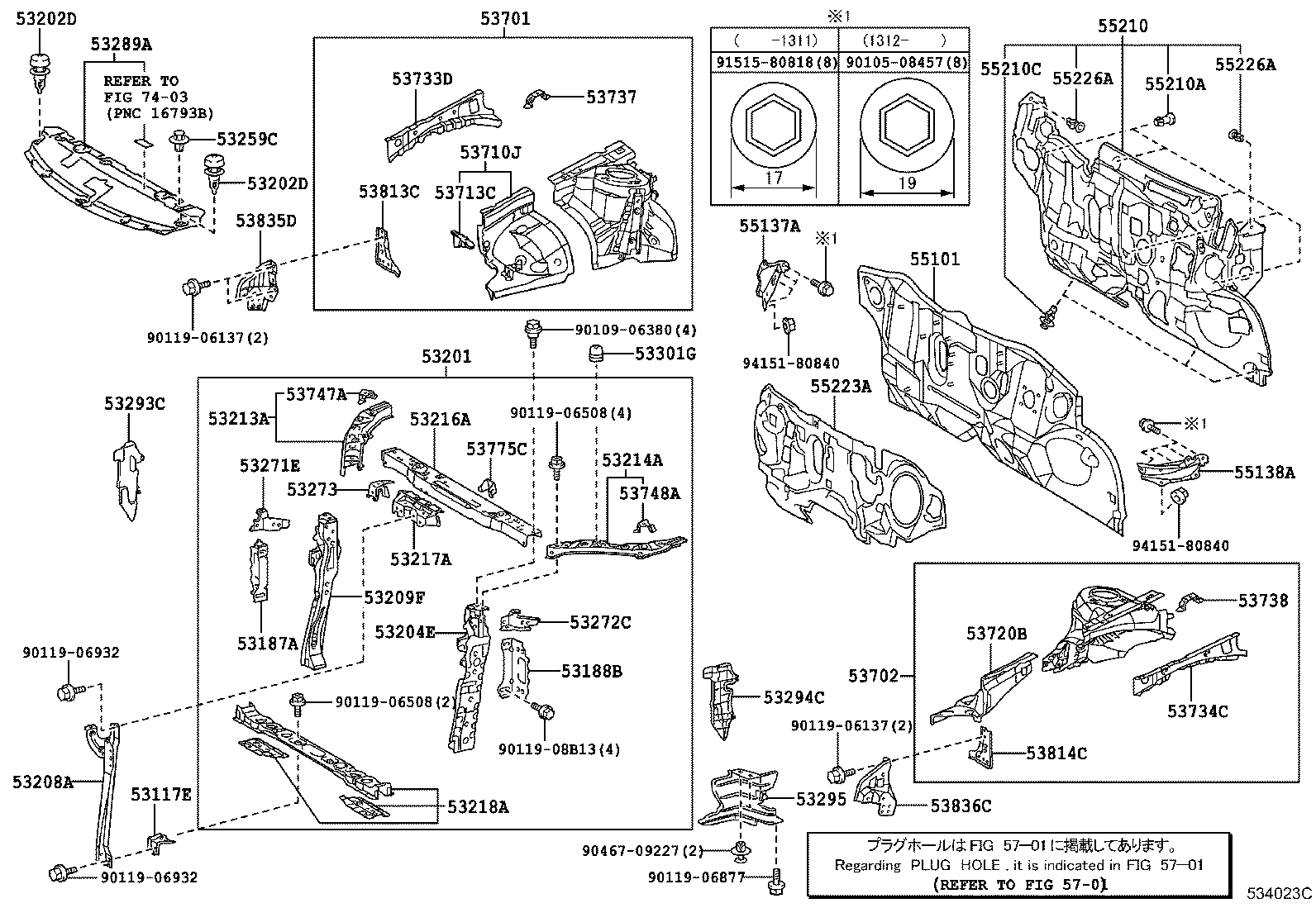

Front Fender Apron & Dash Panel
46 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53117E | Bracket, Radiator Grille, Lower |
| 53187A | Stay, Radiator Support, RH |
| 53188B | Stay, Radiator Support, LH |
| 53201 | Support Sub-assy, Radiator |
| 53202D | Cushion, Radiator Support |
| 53204E | Brace Sub-assy, Radiator Support TO Crossmember, LH |
| 53208A | Support Sub-assy, Hood Lock |
| 53209F | Brace Sub-assy, Radiator Support TO Crossmember, RH |
| 53213A | Support, Radiator, Upper RH |
| 53214A | Support, Radiator, Upper LH |
| 53216A | Support, Radiator, Upper |
| 53217A | Brace, Hood Lock Support |
| 53218A | Support, Radiator, Lower |
| 53259C | Clip, Radiator Support TO Frame Seal |
| 53271E | Bracket, Headlamp Mounting, RH |
| 53272C | Bracket, Headlamp Mounting, LH |
| 53273 | Bracket, Front Bumper Arm Mounting, RH |
| 53289A | Cover, Radiator Support Opening |
| 53293C | Deflector, Radiator Side, RH |
| 53294C | Deflector, Radiator Side, LH |
| 53295 | Deflector, Radiator Lower Air |
| 53301G | Cushion, Hood Bumper |
| 53701 | Apron Sub-assy, Front Fender, RH |
| 53702 | Apron Sub-assy, Front Fender, LH |
| 53710J | Apron Assy, Front Fender, RH |
| 53713C | Extension, Front Fender Apron, Front RH |
| 53720B | Apron Assy, Front Fender, LH |
| 53733D | Member, Front Apron TO Cowl Side, Lower Front RH |
| 53734C | Member, Front Apron TO Cowl Side, Lower Front LH |
| 53737 | Plate, Front Apron TO Cowl Side Member, RH |
| 53738 | Plate, Front Apron TO Cowl Side Member, LH |
| 53747A | Extension, Apron Fender Side, RH |
| 53748A | Extension, Apron Fender Side, LH |
| 53775C | Bracket, Cool Air Intake Duct Mounting |
| 53813C | Extension, Front Fender, RH |
| 53814C | Extension, Front Fender, LH |
| 53835D | Bracket, Front Side Panel, RH |
| 53836C | Bracket, Front Side Panel, LH |
| 55101 | Panel Sub-assy, Dash |
| 55137A | Brace, Dash TO Frame, RH |
| 55138A | Brace, Dash TO Frame, LH |
| 55210 | Insulator Assy, Dash Panel |
| 55210A | Clip |
| 55210C | Clip |
| 55223A | Insulator, Dash Panel, Outer |
| 55226A | Clip |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
