Toyota Scion TC

2010-08 → 2016-06 · chassis AGT20 · catalogue 277420 · United States

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

13 part groups · 1 illustrations

Illustrations

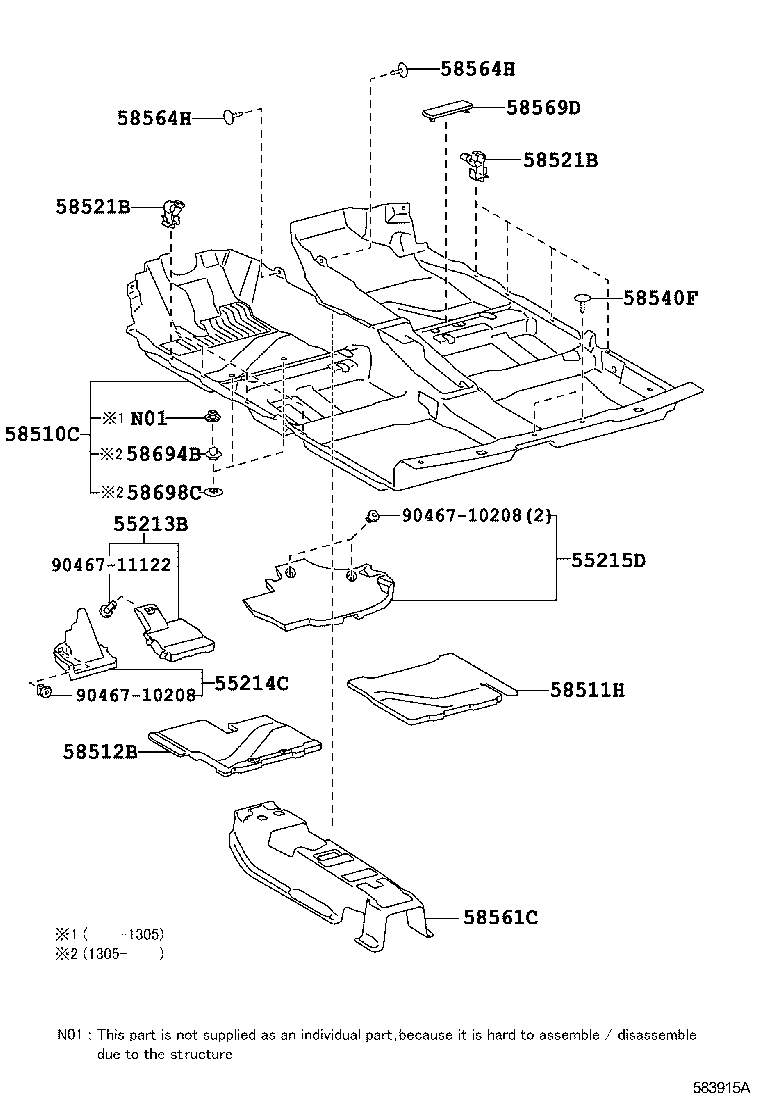

Figure 583915A 583915A 2010-08 → —

Part groups

PNCDescription
55213B Pad, Dash Panel Insulator, NO.1
55214C Pad, Dash Panel Insulator, NO.2
55215D Pad, Dash Panel Insulator, NO.3
58510C Carpet Assy, Front Floor, Front
58511H Mat, Floor, Front RH
58512B Mat, Floor, Front LH
58521B Hook, Floor Carpet
58540F Clip(FOR REAR FLOOR CARPET)
58561C Silencer, Front Floor, NO.1
58564H Clip(FOR REAR FLOOR CARPET)
58569D Cover, Front Floor Caution Plate
58694B Plate, Mat Set, Upper
58698C Plate, Mat Set, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
