Toyota Scion TC

2010-08 → 2016-06 · chassis AGT20 · catalogue 277420 · United States

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

12 part groups · 2 illustrations

Illustrations

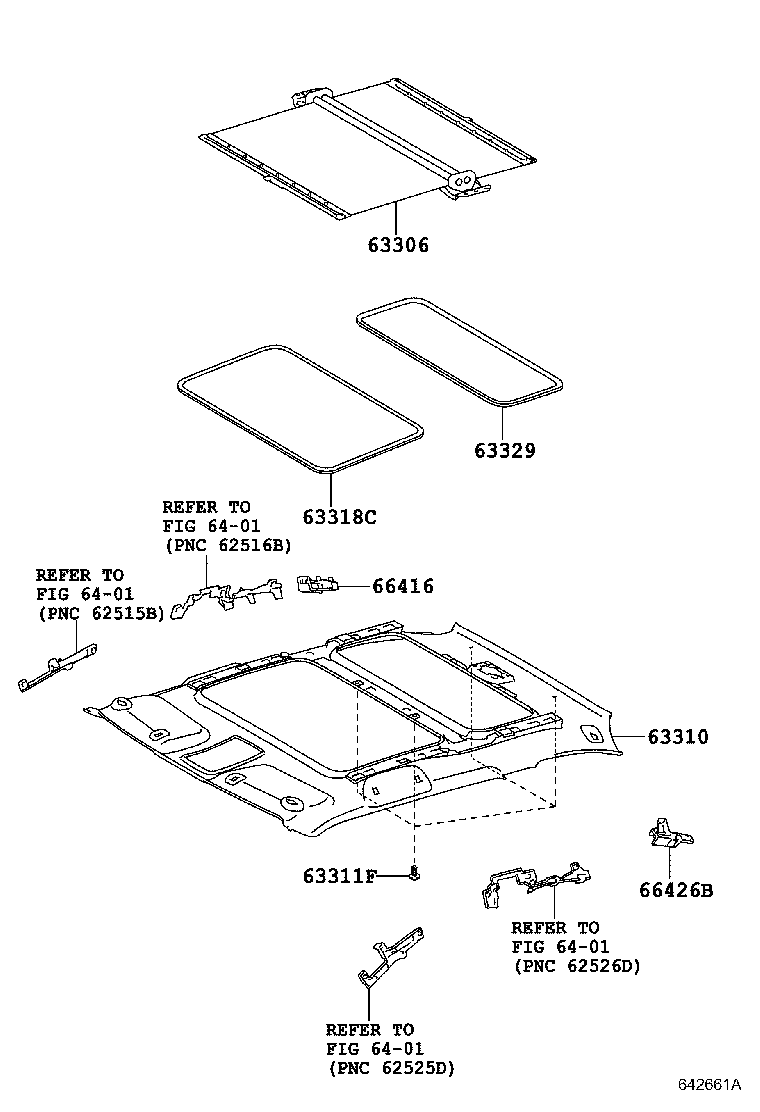

Figure 642661A 642661A 2010-08 → — Figure 642662A 642662A 2010-08 → —

Part groups

PNCDescription
63119E Pad, Roof Panel, NO.1
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63311F Clip, Roof Headlining, NO.1
63318C Moulding, Sun Roof Opening Trim
63329 Moulding, Sun Roof Opening Trim, NO.2
63343B Pad, Roof Silencer, Rear
63344H Pad, Roof Silencer, NO.4
63355C Pad, Roof Headlining, RH
63356B Pad, Roof Headlining, LH
66416 Spacer, Side Rail, Rear NO.3 RH
66426B Spacer, Side Rail, Rear NO.3 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
