Toyota Scion TC

2010-08 → 2016-06 · chassis AGT20 · catalogue 277420 · United States

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

21 part groups · 2 illustrations

Illustrations

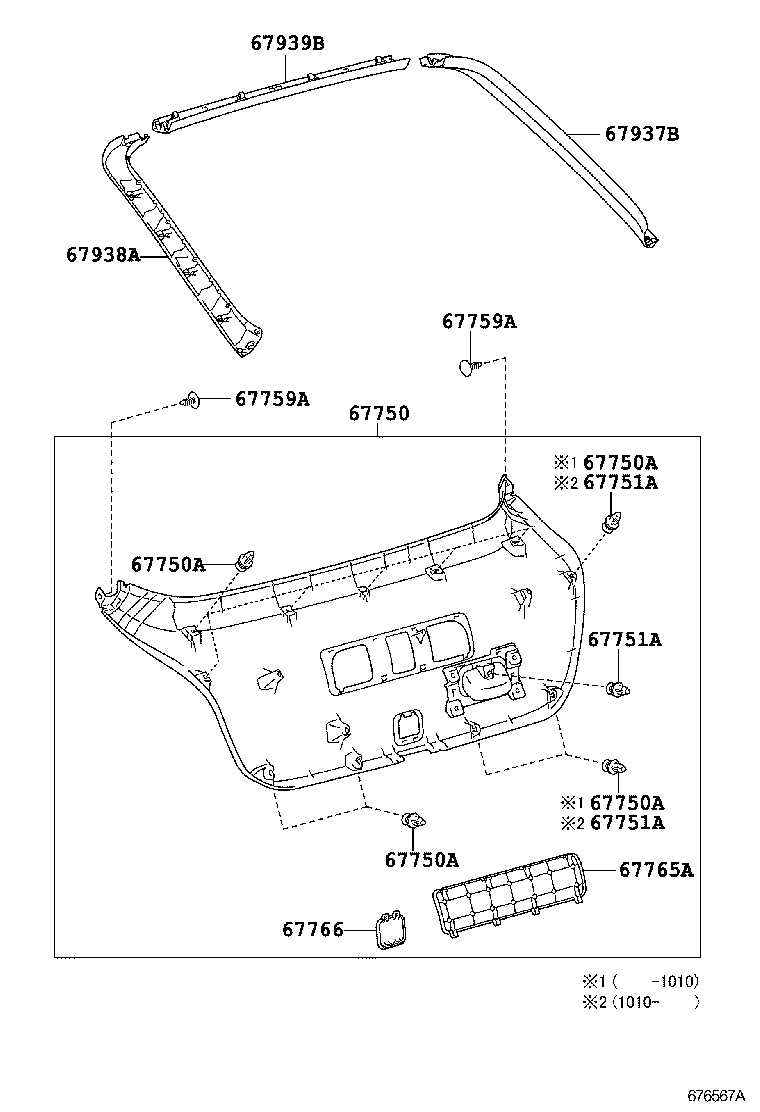

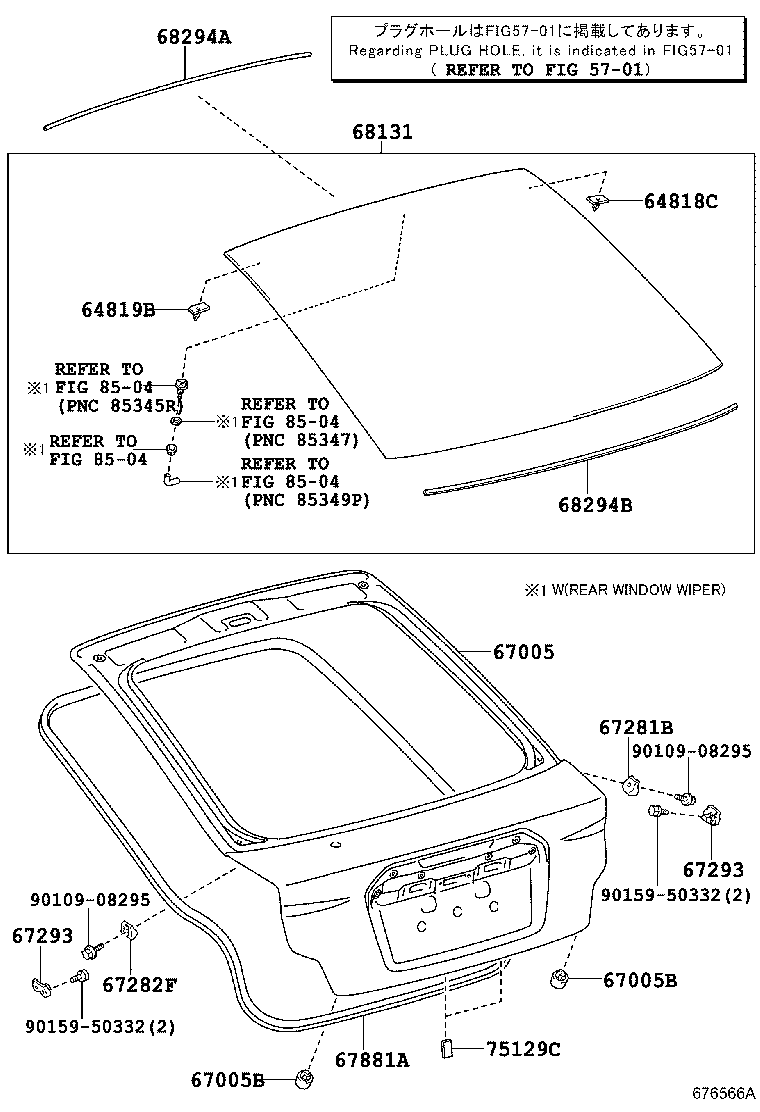

Figure 676566A 676566A 2010-08 → — Figure 676567A 676567A 2010-08 → —

Part groups

PNCDescription
64818C Spacer, Back Window Glass, NO.1
64819B Spacer, Back Window Glass, NO.2
67005 Panel Sub-assy, Back Door
67005B Cushion(FOR BACK DOOR PANEL)
67281B Stopper, Back Door, Lower
67282F Stopper, Back Door, Lwr LH
67293 Cushion, Back Door Lower Stopper
67750 Board Assy, Back Door Trim
67750A Clip(FOR BACK DOOR TRIM)
67751A Clip(FOR BACK DOOR TRIM BOARD)
67759A Clip(FOR BACK DOOR TRIM BOARD)
67765A Cover, Back Door Service Hole, NO.1
67766 Cover, Back Door Service Hole, NO.2
67881A Weatherstrip, Back Door
67937B Garnish, Back Door Side, RH
67938A Garnish, Back Door Side, LH
67939B Garnish, Back Door, Center
68131 Glass, Back Door
68294A Dam, Back Door Glass Adhesive
68294B Dam, Back Door Glass Adhesive
75129C Cushion, Rear Licence Plate
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
