Toyota Scion TC

2010-08 → 2016-06 · chassis AGT20 · catalogue 277420 · United States

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

16 part groups · 1 illustrations

Illustrations

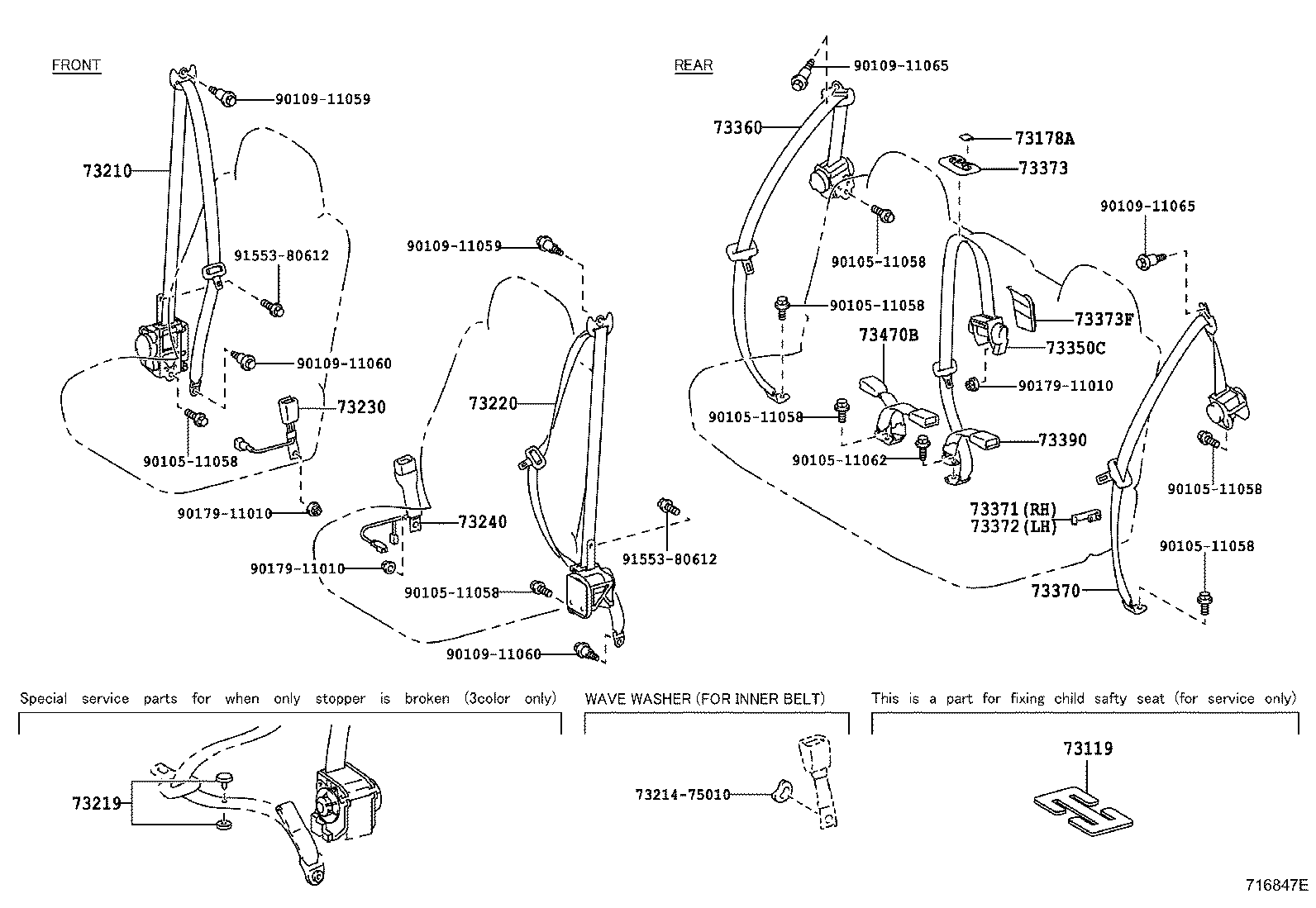

Figure 716847E 716847E 2010-08 → —

Part groups

PNCDescription
73119 Plate, Seat Belt Webbing Clip
73178A Cap, Seat Belt Anchor Cover
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73350C Belt Assy, Rear Seat, Outer Center
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73371 Hanger, Rear Seat Shoulder Belt, RH
73372 Hanger, Rear Seat Shoulder Belt, LH
73373 Cover, Rear Seat Shoulder Belt
73373F Cover, Rear Seat Shoulder Belt Hole
73390 Belt Assy, Rear Seat 3 Point Type, Inner, LH
73470B Belt Assy, Rear Seat Inner W/Center, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
