Toyota Scion TC
2010-08 → 2016-06 · chassis AGT20 · catalogue 277420 · United States
Supported model
Data version 2016-12

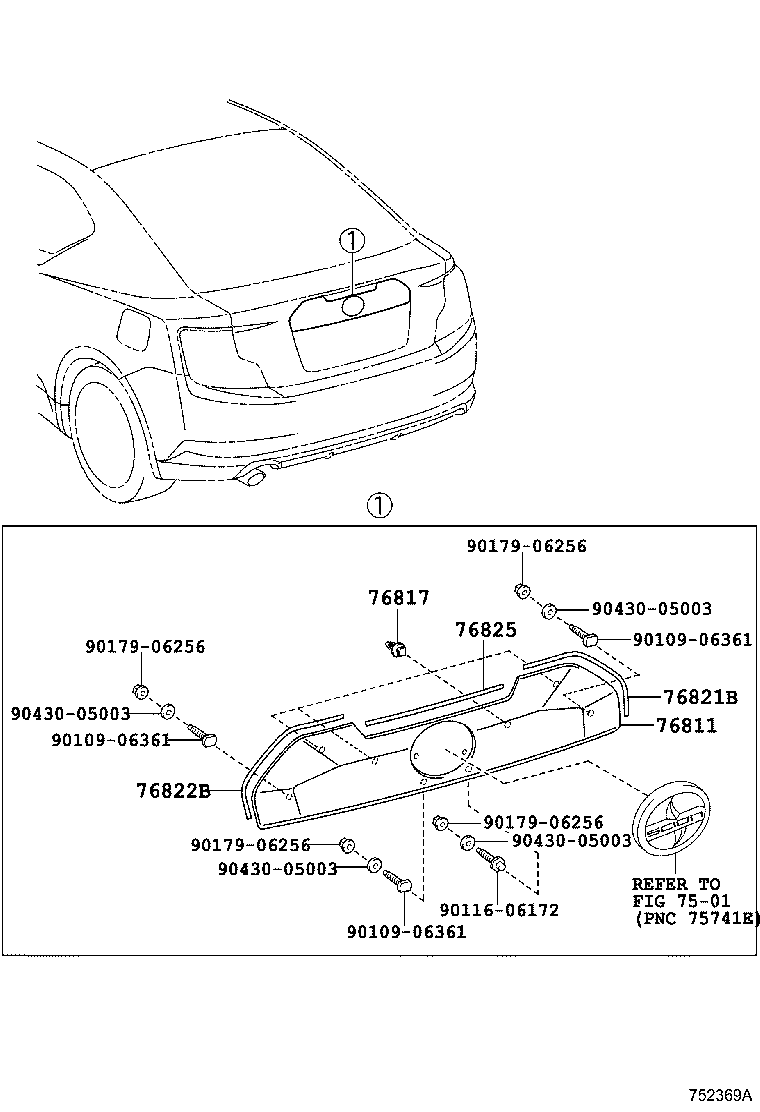

Rear Moulding
5 part groups · 1 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 76811 | Garnish, Back Door, Outside |
| 76817 | Clip, Back Door Outside Garnish |
| 76821B | Protector, Back Door Garnish Side, RH |
| 76822B | Protector, Back Door Garnish Side, LH |
| 76825 | Protector, Back Door Outside Garnish |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
