Toyota Scion TC

2010-08 → 2016-06 · chassis AGT20 · catalogue 277420 · United States

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

7 part groups · 1 illustrations

Illustrations

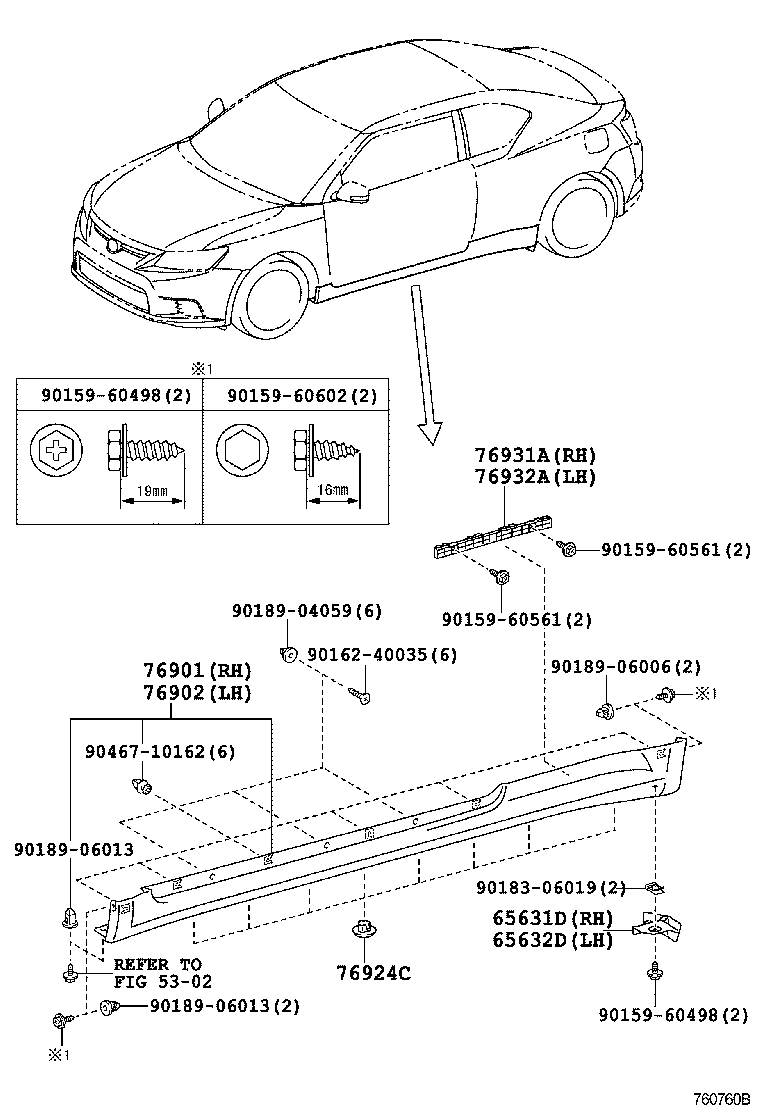

Figure 760760B 760760B 2010-08 → —

Part groups

PNCDescription
65631D Plate, Rear Wheel House, Front RH
65632D Plate, Rear Wheel House, Front LH
76901 Mudguard Sub-assy, Side, RH
76902 Mudguard Sub-assy, Side, LH
76924C Retainer, Side Mudguard, NO.2
76931A Bracket, Side Mudguard, NO.1 RH
76932A Bracket, Side Mudguard, NO.1 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
