Toyota Scion TC
2010-08 → 2016-06 · chassis AGT20 · catalogue 277420 · United States
Supported model
Data version 2016-12

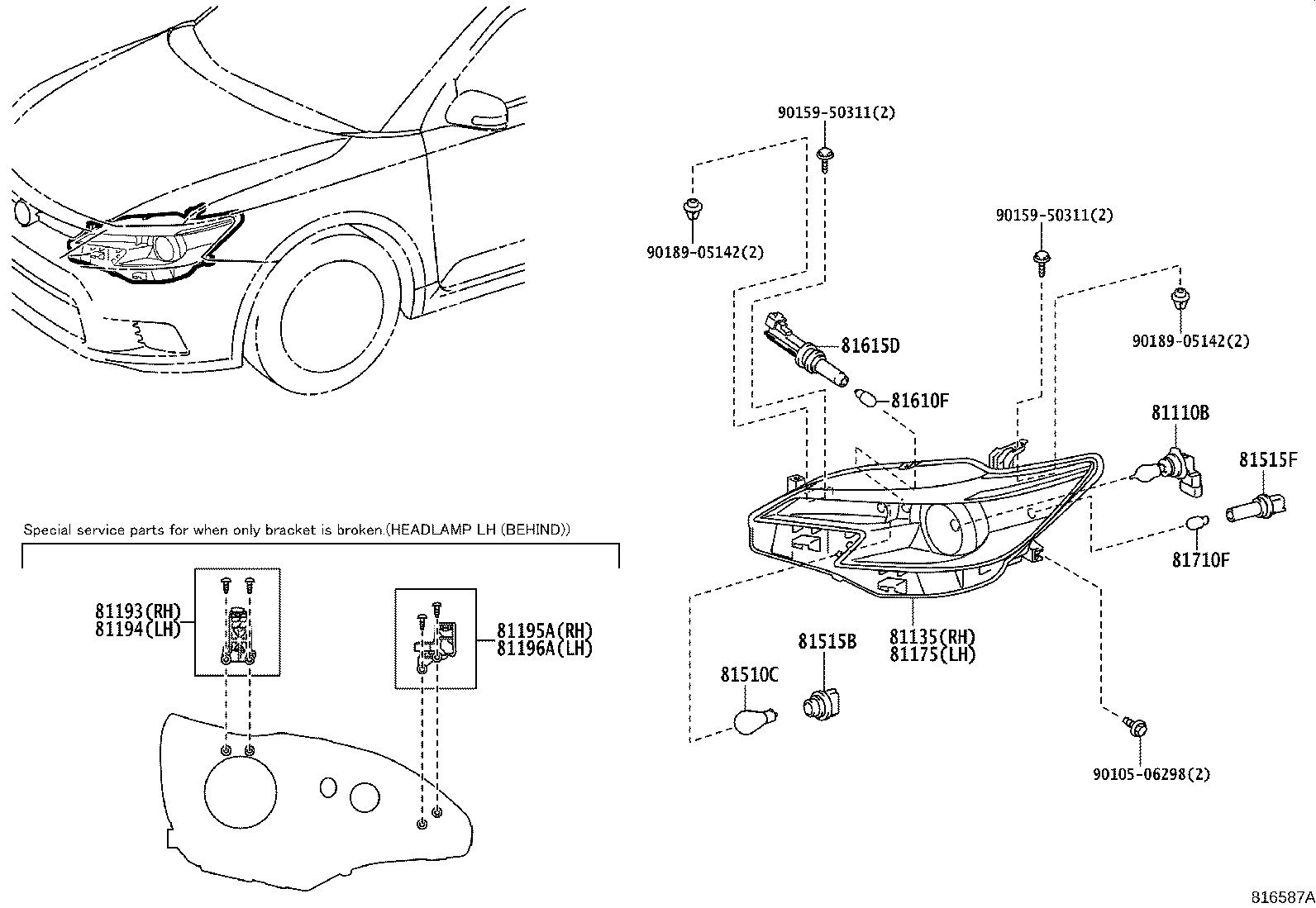

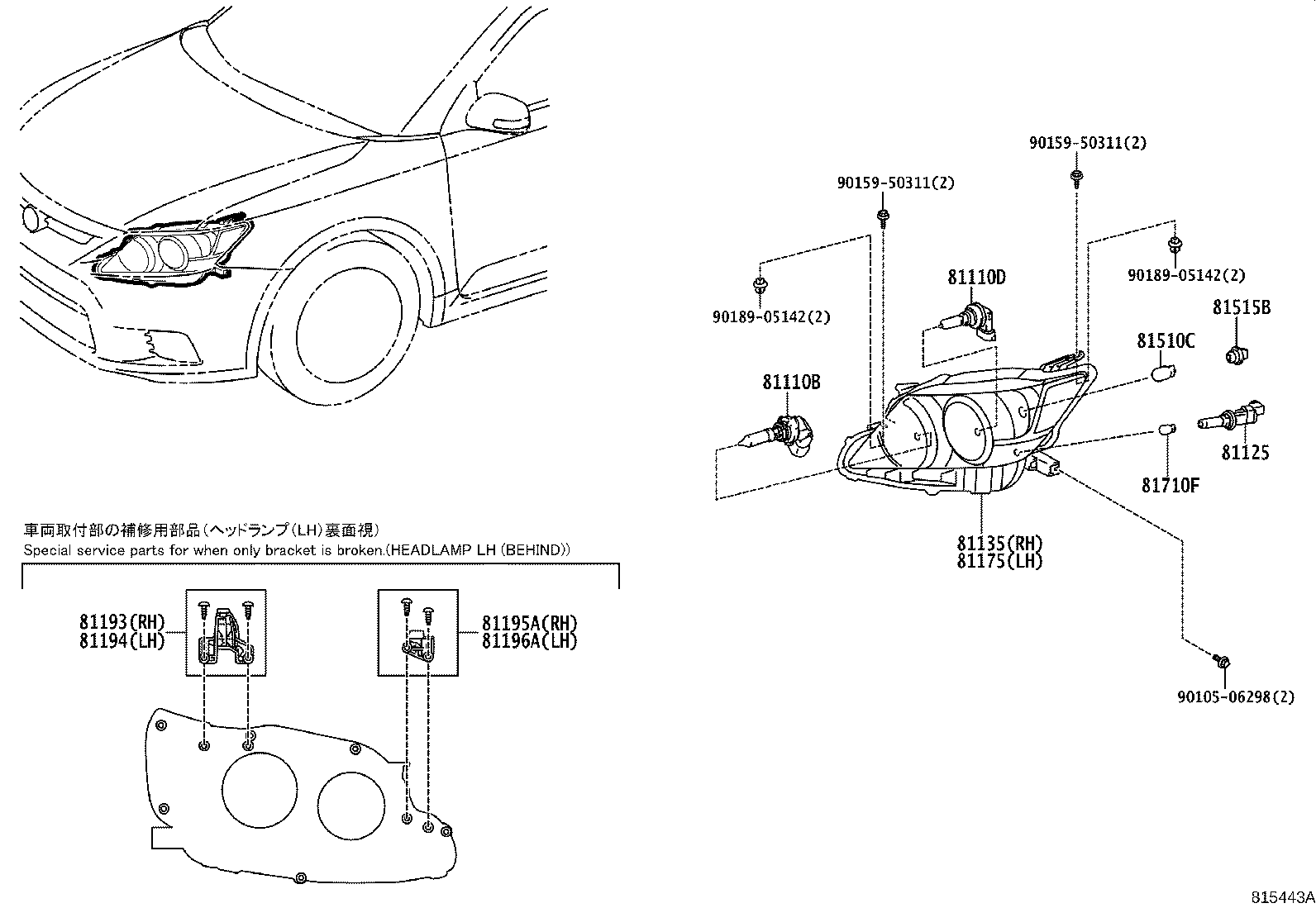

Headlamp
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81110D | Bulb(FOR HEADLAMP, NO.2) |
| 81125 | Cord, Headlamp |
| 81135 | Unit Assy, Headlamp, RH |
| 81175 | Unit Assy, Headlamp, LH |
| 81193 | Retainer, Headlamp Protector, Upper RH |
| 81194 | Retainer, Headlamp Protector, Upper LH |
| 81195A | Retainer, Headlamp Protector, Lower RH |
| 81196A | Retainer, Headlamp Protector, Lower LH |
| 81510C | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 81515B | Socket, Front Turn Signal Lamp |
| 81515F | Socket Plug Assy |
| 81610F | Bulb(FOR CLEARANCE LAMP) |
| 81615D | Socket, Clearance Lamp |
| 81710F | Bulb, Front Side Maker Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
