Toyota Scion TC

2010-08 → 2016-06 · chassis AGT20 · catalogue 277420 · United States

Supported model Data version 2016-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

5 part groups · 2 illustrations

Illustrations

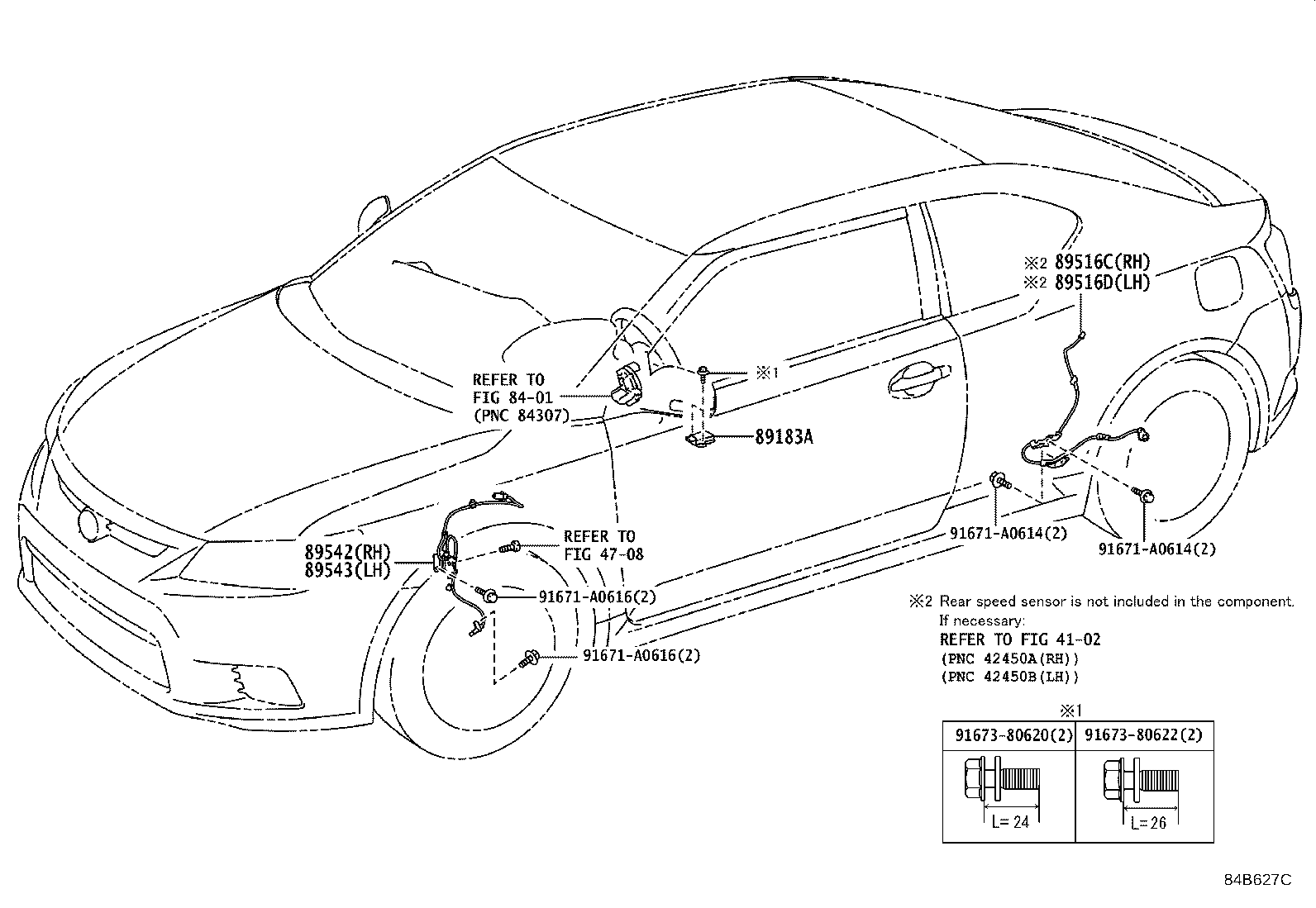

Figure 84B627C

84B627C 2010-08 → 2013-05

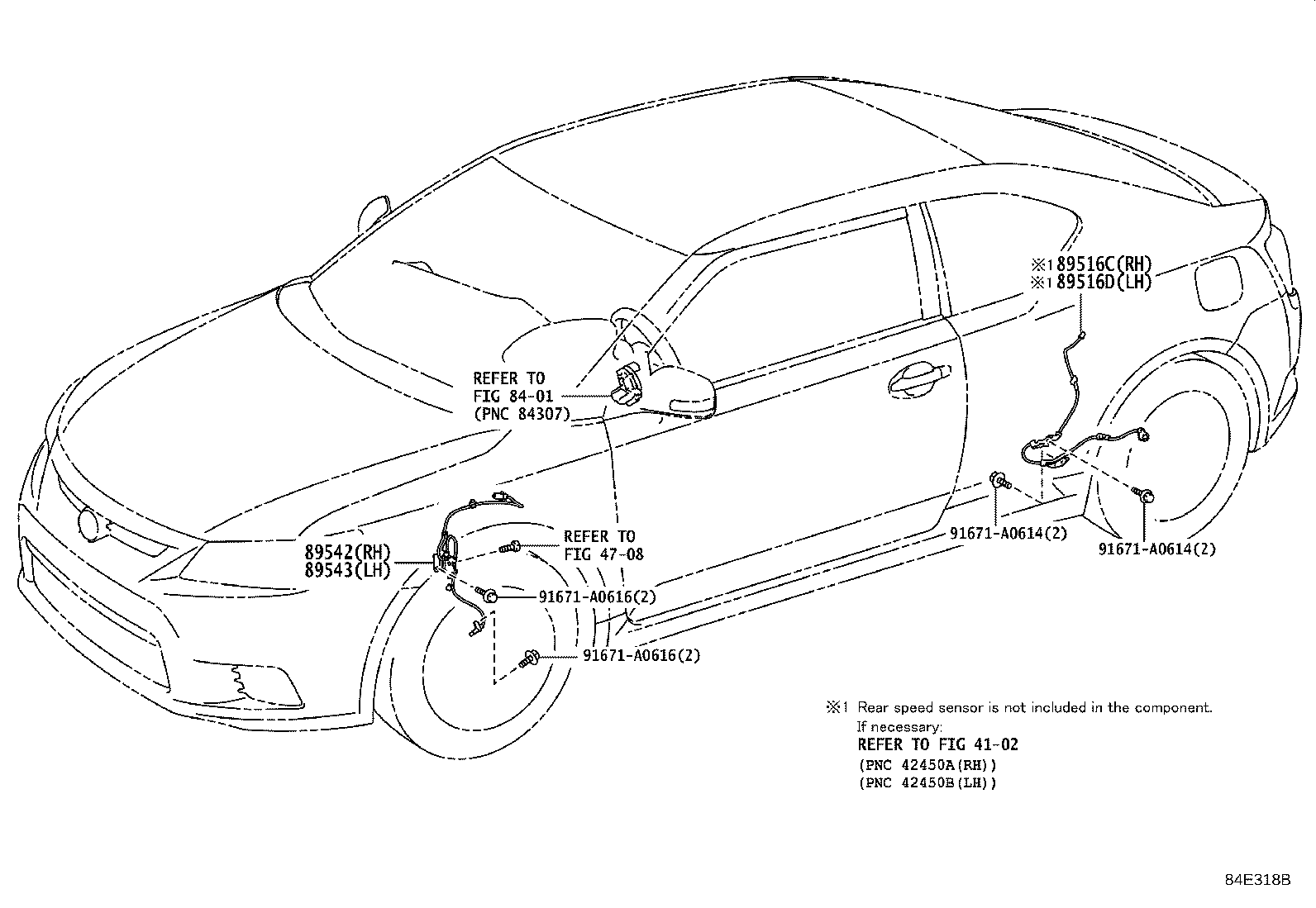

Figure 84E318B

84E318B 2013-05 → —

Part groups

PNC	Description
89183A	Sensor, Yawrate
89516C	Wire, Skid Control Sensor, RH
89516D	Wire, Skid Control Sensor, LH
89542	Sensor, Speed, Front RH
89543	Sensor, Speed, Front LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
