Toyota Scion TC

2010-08 → 2016-06 · chassis AGT20 · catalogue 277420 · United States

Supported model Data version 2016-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

4 part groups · 1 illustrations

Illustrations

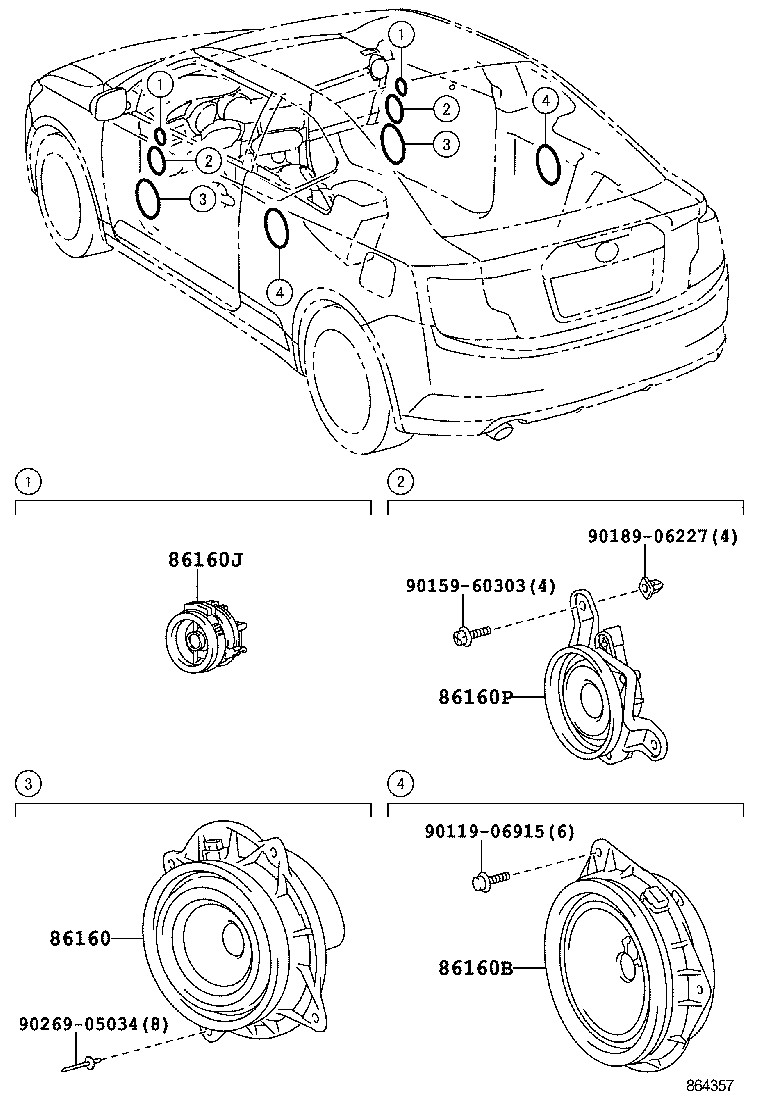

864357 2010-08 → —

Part groups

PNC	Description
86160	Speaker Assy, Front NO.1
86160B	Speaker Assy, Rear
86160J	Speaker Assy, Front NO.3
86160P	Speaker Assy, Front NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
