Toyota Camry
1983-01 → 1986-07 · chassis SV1#,CV1# · catalogue 281420 · United States
Discontinued model
Data version 1987-03
Oil Filter

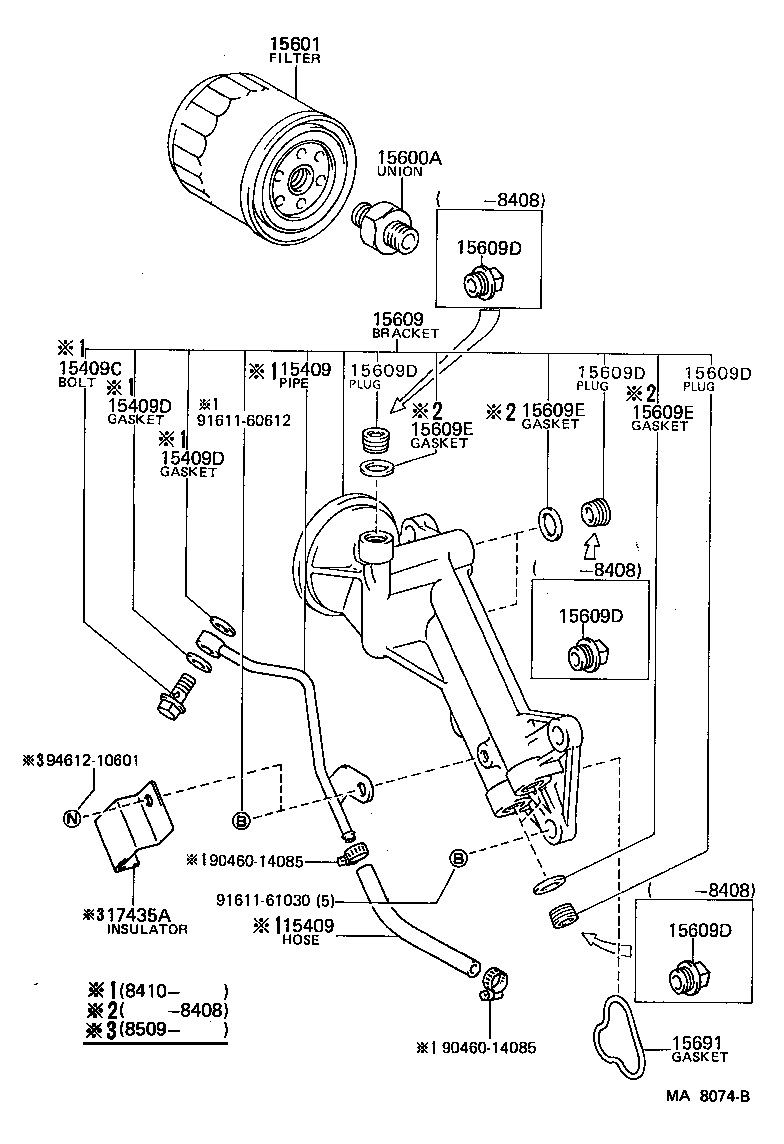

10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 15409 | Pipe OR Hose, Oil Filter Outlet |
| 15409C | Bolt, Union(FOR OIL FILTER OUTLET PIPE) |
| 15409D | Gasket(FOR OIL FILTER OUTLET PIPE) |
| 15600A | Union(FOR OIL FILTER) |
| 15601 | Filter Sub-assy, Oil |
| 15609 | Bracket Sub-assy, Oil Filter |
| 15609D | Plug, W/Head Straight Screw(FOR OIL FILTER BRACKET) |
| 15609E | Gasket, W/Head Straight Screw Plug |
| 15691 | Gasket, Oil Filter |
| 17435A | Insulator, Heat(FOR OIL FILTER BRACKET) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
