Toyota Camry (JPP)

1988-08 → 1991-06 · chassis SV2#,VZV21 · catalogue 281440 · United States

Discontinued model Data version 1992-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

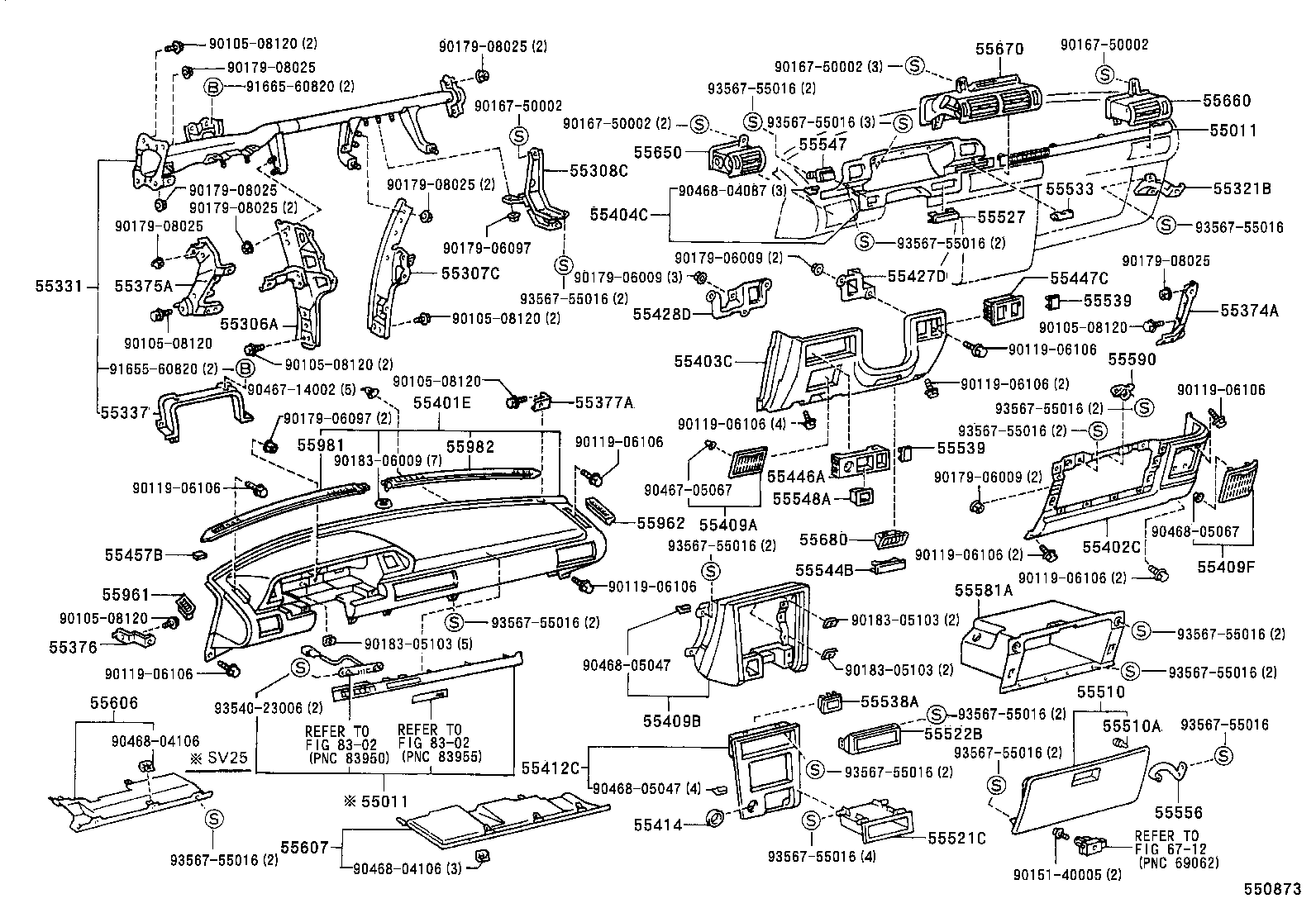

Exploded illustration 550873 9010508120 — not listed in this catalogue 9016750002 — not listed in this catalogue 9017908025 — not listed in this catalogue 55670 — REGISTER ASSY, INSTRUMENT PANEL, NO.3 (4 parts) 9016750002 — not listed in this catalogue 9017908025 — not listed in this catalogue 9166560820 — not listed in this catalogue 9356755016 — not listed in this catalogue 55660 — REGISTER ASSY, INSTRUMENT PANEL, NO.2 (4 parts) 9016750002 — not listed in this catalogue 9356755016 — not listed in this catalogue 9016750002 — not listed in this catalogue 55011 — GARNISH SUB-ASSY, INSTRUMENT PANEL SAFETY PAD (4 parts) 55547 — COVER, REMOTE CONTROL MIRROR HOLE (4 parts) 55650 — REGISTER ASSY, INSTRUMENT PANEL, NO.1 (4 parts) 55308C — BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER (1 parts) 9017908025 — not listed in this catalogue 55321B — BRACKET, INSTRUMENT PANEL, NO.1 (1 parts) 55533 — COVER, AUTO CLOCK HOLE (1 parts) 9017908025 — not listed in this catalogue 9046804087 — not listed in this catalogue 9017908025 — not listed in this catalogue 55404C — PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 (4 parts) 55527 — COVER, TRANSMISSION CONTROL SWITCH HOLE (4 parts) 9017908025 — not listed in this catalogue 9356755016 — not listed in this catalogue 9356755016 — not listed in this catalogue 9017906097 — not listed in this catalogue 9017906009 — not listed in this catalogue 9017908025 — not listed in this catalogue 55307C — BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 (2 parts) 55427D — RETAINER, INSTRUMENT FINISH PANEL, LOWER, NO.1 (1 parts) 9017906009 — not listed in this catalogue 55447C — BASE, SWITCH HOLE, NO.2 (1 parts) 55331 — REINFORCEMENT, INSTRUMENT PANEL (2 parts) 55375A — BRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH (1 parts) 9356755016 — not listed in this catalogue 55539 — COVER, SPARE SWITCH HOLE (2 parts) 55374A — BRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH (1 parts) 55428D — RETAINER, INSTRUMENT FINISH PANEL, LOWER NO.2 (1 parts) 9010508120 — not listed in this catalogue 55306A — BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 (2 parts) 9010508120 — not listed in this catalogue 9010508120 — not listed in this catalogue 9011906106 — not listed in this catalogue 55590 — PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER (1 parts) 55403C — PAD SUB-ASSY, INSTRUMENT PANEL, LOWER LH (4 parts) 9010508120 — not listed in this catalogue 9165560820 — not listed in this catalogue 9010508120 — not listed in this catalogue 9011906106 — not listed in this catalogue 9046714002 — not listed in this catalogue 9011906106 — not listed in this catalogue 55377A — BRACKET, INSTRUMENT PANEL MOUNTING, NO.2 (1 parts) 55401E — PAD SUB-ASSY, INSTRUMENT PANEL SAFETY (5 parts) 9356755016 — not listed in this catalogue 55337 — REINFORCEMENT, INSTRUMENT PANEL SUB (1 parts) 9017906097 — not listed in this catalogue 9011906106 — not listed in this catalogue 9356755016 — not listed in this catalogue 9011906106 — not listed in this catalogue 55981 — GARNISH, DEFROSTER NOZZLE, NO.1 (10 parts) 55982 — GARNISH, DEFROSTER NOZZLE, NO.2 (8 parts) 55539 — COVER, SPARE SWITCH HOLE (2 parts) 9018306009 — not listed in this catalogue 55446A — BASE, SWITCH HOLE, NO.1 (1 parts) 9017906009 — not listed in this catalogue 9011906106 — not listed in this catalogue 9046705067 — not listed in this catalogue 55548A — COVER, INSTRUMENT PANEL HOLE (2 parts) 55962 — NOZZLE, SIDE DEFROSTER, NO.2 (4 parts) 55409A — PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER (4 parts) 9046805067 — not listed in this catalogue 55680 — REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 (12 parts) 9356755016 — not listed in this catalogue 55402C — PAD SUB-ASSY, INSTRUMENT PANEL, LOWER RH (4 parts) 55457B — SPACER, INSTRUMENT PANEL SAFETY PAD (1 parts) 9011906106 — not listed in this catalogue 55409F — PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 (6 parts) 55544B — COVER, INSTRUMENT PANEL LOWER REGISTER HOLE (5 parts) 9011906106 — not listed in this catalogue 9011906106 — not listed in this catalogue 55581A — COMPARTMENT, GLOVE (1 parts) 55961 — NOZZLE, SIDE DEFROSTER, NO.1 (4 parts) 9010508120 — not listed in this catalogue 9018305103 — not listed in this catalogue 9356755016 — not listed in this catalogue 9356755016 — not listed in this catalogue 9018305103 — not listed in this catalogue 55376 — BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 (1 parts) 9046805047 — not listed in this catalogue 9018305103 — not listed in this catalogue 9356755016 — not listed in this catalogue 9011906106 — not listed in this catalogue 55510 — DOOR ASSY, GLOVE COMPARTMENT (7 parts) 55538A — COVER, COOLER SWITCH HOLE (1 parts) 55606 — COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 (1 parts) 9354023006 — not listed in this catalogue 9356755016 — not listed in this catalogue 55409B — PAD SUB-ASSY, INSTRUMENT PANEL, LOWER CENTER (7 parts) 9356755016 — not listed in this catalogue 55510A — CUSHION(FOR GLOVE COMPARTMENT DOOR) (2 parts) 55522B — COVER, RADIO TUNER OPENING (1 parts) 9046804106 — not listed in this catalogue 8302 — not listed in this catalogue 8302 — not listed in this catalogue 9356755016 — not listed in this catalogue 55412C — PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.1 (2 parts) 9356755016 — not listed in this catalogue 9046805047 — not listed in this catalogue 55011 — GARNISH SUB-ASSY, INSTRUMENT PANEL SAFETY PAD (4 parts) 55556 — ARM, GLOVE COMPARTMENT DOOR CHECK (1 parts) 55414 — BEZEL, CIGAR LIGHTER HOLE (2 parts) 55521C — COVER, STEREO OPENING (2 parts) 55607 — COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 (1 parts) 6712 — not listed in this catalogue 9356755016 — not listed in this catalogue 9356755016 — not listed in this catalogue 9046804106 — not listed in this catalogue 9015140005 — not listed in this catalogue
550873 · 51 callouts, 69 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
146 parts on this figure
Part number Description Fitment Price
55011 — Garnish Sub-assy, Instrument Panel Safety Pad
55011-32120 Garnish Sub-assy, Instrument Panel Safety Pad
1988-08 → 1991-06 ended
SV21,VZV21 —
55011-32150 Garnish Sub-assy, Instrument Panel Safety Pad
1988-08 → 1990-08 ended
SV25 5F —
55011-32180 Garnish Sub-assy, Instrument Panel Safety Pad
1988-08 → 1988-09 ended
SV25 4FC —
55011-32181 Garnish Sub-assy, Instrument Panel Safety Pad
1988-09 → 1991-06 ended
SV25 4FC —
55306A — Brace Sub-assy, Instrument Panel, NO.1
55306-32060 Brace Sub-assy, Instrument Panel, NO.1
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
55306-32080 Brace Sub-assy, Instrument Panel, NO.1
1988-08 → 1991-06 ended
SV2#,VZV21 CND —
55307C — Brace Sub-assy, Instrument Panel, NO.2
55307-32030 Brace Sub-assy, Instrument Panel, NO.2
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
55307-32050 Brace Sub-assy, Instrument Panel, NO.2
1988-08 → 1991-06 ended
SV2#,VZV21 CND —
55308C — Bracket Sub-assy, Instrument Panel, Center
55308-32010 Bracket Sub-assy, Instrument Panel, Center
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
55321B — Bracket, Instrument Panel, NO.1
55321-32020 Bracket, Instrument Panel, NO.1
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
55331 — Reinforcement, Instrument Panel
55330-32050 Reinforcement, Instrument Panel
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
55330-32070 Reinforcement, Instrument Panel
1988-08 → 1991-06 ended
SV2#,VZV21 CND —
55337 — Reinforcement, Instrument Panel Sub
55337-32020 Reinforcement, Instrument Panel Sub
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
55374A — Bracket, Instrument Panel Lower Mounting, RH
55374-32020 Bracket, Instrument Panel Lower Mounting, RH
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
55375A — Bracket, Instrument Panel Lower Mounting, LH
55375-32030 Bracket, Instrument Panel Lower Mounting, LH
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
55376 — Bracket, Instrument Panel Mounting, NO.1
55376-32030 Bracket, Instrument Panel Mounting, NO.1
1988-08 → 1991-06 ended
SV2#,VZV21 —
55377A — Bracket, Instrument Panel Mounting, NO.2
55377-32030 Bracket, Instrument Panel Mounting, NO.2
1988-08 → 1991-06 ended
SV2#,VZV21 —
55401E — Pad Sub-assy, Instrument Panel Safety
55401-32061-02 note Pad Sub-assy, Instrument Panel Safety
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
55401-32061-03 note Pad Sub-assy, Instrument Panel Safety
1990-08 → 1991-06 ended
SV2#,VZV21 —
55401-32061-03 note Pad Sub-assy, Instrument Panel Safety
1988-08 → 1990-08 ended
SV2#,VZV21 LE,STD —
55401-32061-04 note Pad Sub-assy, Instrument Panel Safety
1988-08 → 1991-06 ended
SV2#,VZV21 —
55401-32061-06 note Pad Sub-assy, Instrument Panel Safety
1988-08 → 1991-06 ended
SV2#,VZV21 —
55402C — Pad Sub-assy, Instrument Panel, Lower RH
55402-32010-02 note Pad Sub-assy, Instrument Panel, Lower RH
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
55402-32010-03 note Pad Sub-assy, Instrument Panel, Lower RH
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
55402-32010-04 note Pad Sub-assy, Instrument Panel, Lower RH
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
55402-32010-06 note Pad Sub-assy, Instrument Panel, Lower RH
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
55403C — Pad Sub-assy, Instrument Panel, Lower LH
55403-32010-02 note Pad Sub-assy, Instrument Panel, Lower LH
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
55403-32010-03 note Pad Sub-assy, Instrument Panel, Lower LH
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
55403-32010-04 note Pad Sub-assy, Instrument Panel, Lower LH
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
55403-32010-06 note Pad Sub-assy, Instrument Panel, Lower LH
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
55404C — Panel Sub-assy, Instrument Cluster Finish, NO.2
55404-32080-02 note Panel Sub-assy, Instrument Cluster Finish, NO.2
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
55404-32080-03 note Panel Sub-assy, Instrument Cluster Finish, NO.2
1988-08 → 1991-06 ended
SV2#,VZV21 —
55404-32080-04 note Panel Sub-assy, Instrument Cluster Finish, NO.2
1988-08 → 1991-06 ended
SV2#,VZV21 —
55404-32080-06 note Panel Sub-assy, Instrument Cluster Finish, NO.2
1988-08 → 1991-06 ended
SV2#,VZV21 —
55409A — Panel Sub-assy, Instrument Panel Speaker
55472-32030-02 note Panel Sub-assy, Instrument Panel Speaker
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
55472-32030-03 note Panel Sub-assy, Instrument Panel Speaker
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
55472-32030-04 note Panel Sub-assy, Instrument Panel Speaker
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
55472-32030-06 note Panel Sub-assy, Instrument Panel Speaker
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
55409B — Pad Sub-assy, Instrument Panel, Lower Center
55409-32010-02 note Pad Sub-assy, Instrument Panel, Lower Center
1988-08 → 1990-08 ended
SV2#,VZV21 USA —
55409-32010-02 note Pad Sub-assy, Instrument Panel, Lower Center
1990-08 → 1991-06 ended
SV2#,VZV21 (LE,STD) USA —
55409-32010-03 note Pad Sub-assy, Instrument Panel, Lower Center
1988-08 → 1990-08 ended
SV2#,VZV21 USA —
55409-32010-03 note Pad Sub-assy, Instrument Panel, Lower Center
1990-08 → 1991-06 ended
SV2#,VZV21 (LE,STD) USA —
55409-32010-03 note Pad Sub-assy, Instrument Panel, Lower Center
1990-08 → 1991-06 ended
SV2#,VZV21 DX USA —
55409-32010-04 note Pad Sub-assy, Instrument Panel, Lower Center
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
55409-32010-06 note Pad Sub-assy, Instrument Panel, Lower Center
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
55409F — Panel Sub-assy, Instrument Panel Speaker, NO.2
55473-32030-02 note Panel Sub-assy, Instrument Panel Speaker, NO.2
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
55473-32030-03 note Panel Sub-assy, Instrument Panel Speaker, NO.2
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
55473-32030-04 note Panel Sub-assy, Instrument Panel Speaker, NO.2
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
55473-32030-06 note Panel Sub-assy, Instrument Panel Speaker, NO.2
1988-08 → 1990-08 ended
SV2#,VZV21 USA —
55473-32030-06 note Panel Sub-assy, Instrument Panel Speaker, NO.2
1990-08 → 1991-06 ended
SV2#,VZV21 (LE,STD) USA —
55473-32030-06 note Panel Sub-assy, Instrument Panel Speaker, NO.2
1990-08 → 1991-06 ended
SV2#,VZV21 DX USA —
55412C — Panel, Instrument Cluster Finish, Center NO.1
55412-32060 Panel, Instrument Cluster Finish, Center NO.1
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
55412-32080 Panel, Instrument Cluster Finish, Center NO.1
1988-08 → 1991-06 ended
SV2#,VZV21 CND —
55414 — Bezel, Cigar Lighter Hole
55477-12060 Bezel, Cigar Lighter Hole
1988-08 → 1991-06 ended
SV2#,VZV21 CND —
55477-32030 Bezel, Cigar Lighter Hole
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
55427D — Retainer, Instrument Finish Panel, Lower, NO.1
55427-32010 Retainer, Instrument Finish Panel, Lower, NO.1
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
55428D — Retainer, Instrument Finish Panel, Lower NO.2
55428-32010 Retainer, Instrument Finish Panel, Lower NO.2
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
55446A — Base, Switch Hole, NO.1
55446-32010 Base, Switch Hole, NO.1
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
55447C — Base, Switch Hole, NO.2
55447-32010 Base, Switch Hole, NO.2
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
55457B — Spacer, Instrument Panel Safety Pad
55457-22030 Spacer, Instrument Panel Safety Pad
1988-08 → 1991-06 ended
SV2#,VZV21 —
55510 — Door Assy, Glove Compartment
55550-32050-02 note Door Assy, Glove Compartment
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
55550-32050-03 note Door Assy, Glove Compartment
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
55550-32050-04 note Door Assy, Glove Compartment
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
55550-32050-06 note Door Assy, Glove Compartment
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
55550-32060-03 note Door Assy, Glove Compartment
1988-08 → 1991-06 ended
SV2#,VZV21 CND —
55550-32060-04 note Door Assy, Glove Compartment
1988-08 → 1991-06 ended
SV2#,VZV21 CND —
55550-32060-06 note Door Assy, Glove Compartment
1988-08 → 1991-06 ended
SV2#,VZV21 CND —
55510A — Cushion(FOR GLOVE COMPARTMENT DOOR)
90541-03015 Cushion(FOR GLOVE COMPARTMENT DOOR)
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
90541-03015 Cushion(FOR GLOVE COMPARTMENT DOOR)
1988-08 → 1991-06 ended
SV2#,VZV21 CND —
55521C — Cover, Stereo Opening
55521-14050-01 note Cover, Stereo Opening
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
55521-14050-01 note Cover, Stereo Opening
1988-08 → 1991-06 ended
SV2#,VZV21 CND —
55522B — Cover, Radio Tuner Opening
55522-32010 Cover, Radio Tuner Opening
1988-08 → 1991-06 ended
SV2#,VZV21 DX,STD —
55527 — Cover, Transmission Control Switch Hole
55527-32030-02 note Cover, Transmission Control Switch Hole
1988-08 → 1991-06 ended
SV2#,VZV21 5F USA —
55527-32030-03 note Cover, Transmission Control Switch Hole
1988-08 → 1991-06 ended
SV2#,VZV21 5F —
55527-32030-04 note Cover, Transmission Control Switch Hole
1988-08 → 1991-06 ended
SV2#,VZV21 5F —
55527-32030-06 note Cover, Transmission Control Switch Hole
1988-08 → 1991-06 ended
SV2#,VZV21 5F —
55533 — Cover, Auto Clock Hole
55533-32010 Cover, Auto Clock Hole
1988-08 → 1991-06 ended
SV21 STD —
55538A — Cover, Cooler Switch Hole
55538-16020 Cover, Cooler Switch Hole
1988-08 → 1991-06 ended
SV2#,VZV21 DX,STD —
55539 — Cover, Spare Switch Hole
55539-32010-11 note Cover, Spare Switch Hole
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
55539-32010-11 note Cover, Spare Switch Hole
1988-08 → 1991-06 ended
SV2#,VZV21 CND —
55544B — Cover, Instrument Panel Lower Register Hole
55544-32020-02 note Cover, Instrument Panel Lower Register Hole
1988-08 → 1991-06 ended
SV2# USA;VZV21 DX —
55544-32020-03 note Cover, Instrument Panel Lower Register Hole
1988-08 → 1991-06 ended
SV2# USA;VZV21 DX —
55544-32020-04 note Cover, Instrument Panel Lower Register Hole
1988-08 → 1991-06 ended
SV2# USA;VZV21 DX —
55544-32020-16 note Cover, Instrument Panel Lower Register Hole
1988-08 → 1989-08 ended
SV25 USA;SV21 SED LE +3 —
55544-32020-16 note Cover, Instrument Panel Lower Register Hole
1989-08 → 1991-06 ended
SV2# USA;VZV21 DX —
55547 — Cover, Remote Control Mirror Hole
55547-32030-02 note Cover, Remote Control Mirror Hole
1988-08 → 1991-06 ended
SV2#,VZV21 (DX,STD) USA —
55547-32030-03 note Cover, Remote Control Mirror Hole
1988-08 → 1991-06 ended
SV2#,VZV21 DX,STD —
55547-32030-04 note Cover, Remote Control Mirror Hole
1988-08 → 1991-06 ended
SV2#,VZV21 DX,STD —
55547-32030-06 note Cover, Remote Control Mirror Hole
1988-08 → 1991-06 ended
SV2#,VZV21 DX,STD —
55548A — Cover, Instrument Panel Hole
55548-32030 Cover, Instrument Panel Hole
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
55548-32040 Cover, Instrument Panel Hole
1988-08 → 1991-06 ended
SV2#,VZV21 CND —
55556 — Arm, Glove Compartment Door Check
55556-20030 Arm, Glove Compartment Door Check
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
55581A — Compartment, Glove
55581-32010 Compartment, Glove
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
55590 — Plate Assy, Grove Compartment Door Lock Striker
55590-32010 Plate Assy, Grove Compartment Door Lock Striker
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
55606 — Cover Sub-assy, Instrument Panel Under, NO.1
55606-32020 Cover Sub-assy, Instrument Panel Under, NO.1
1988-08 → 1991-06 ended
SV2#,VZV21 —
55607 — Cover Sub-assy, Instrument Panel Under, NO.2
55607-32020 Cover Sub-assy, Instrument Panel Under, NO.2
1988-08 → 1991-06 ended
SV2#,VZV21 —
55650 — Register Assy, Instrument Panel, NO.1
55650-32061-B0 note Register Assy, Instrument Panel, NO.1
1988-08 → 1991-06 ended
SV2#,VZV21 —
55650-32061-D0 note Register Assy, Instrument Panel, NO.1
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
55650-32061-E0 note Register Assy, Instrument Panel, NO.1
1988-08 → 1991-06 ended
SV2#,VZV21 —
55650-32061-J0 note Register Assy, Instrument Panel, NO.1
1988-08 → 1991-06 ended
SV2#,VZV21 —
55660 — Register Assy, Instrument Panel, NO.2
55660-32061-B0 note Register Assy, Instrument Panel, NO.2
1988-08 → 1991-06 ended
SV2#,VZV21 —
55660-32061-D0 note Register Assy, Instrument Panel, NO.2
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
55660-32061-E0 note Register Assy, Instrument Panel, NO.2
1988-08 → 1991-06 ended
SV2#,VZV21 —
55660-32061-J0 note Register Assy, Instrument Panel, NO.2
1988-08 → 1991-06 ended
SV2#,VZV21 —
55670 — Register Assy, Instrument Panel, NO.3
55670-32071-B0 note Register Assy, Instrument Panel, NO.3
1988-08 → 1991-06 ended
SV2#,VZV21 —
55670-32071-D0 note Register Assy, Instrument Panel, NO.3
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
55670-32071-E0 note Register Assy, Instrument Panel, NO.3
1988-08 → 1991-06 ended
SV2#,VZV21 —
55670-32071-J0 note Register Assy, Instrument Panel, NO.3
1988-08 → 1991-06 ended
SV2#,VZV21 —
55680 — Register Assy, Instrument Panel, Lower NO.1
55680-14030-B0 note Register Assy, Instrument Panel, Lower NO.1
1988-08 → 1990-08 ended
SV2#,VZV21 —
55680-14030-B0 note Register Assy, Instrument Panel, Lower NO.1
1990-08 → 1991-06 ended
SV2#,VZV21 LE,STD —
55680-14030-B0 note Register Assy, Instrument Panel, Lower NO.1
1990-08 → 1991-06 ended
SV21 WG 4FC DX —
55680-14030-B0 note Register Assy, Instrument Panel, Lower NO.1
1990-08 → 1991-06 ended
SV21 WG 5F —
55680-14030-B0 note Register Assy, Instrument Panel, Lower NO.1
1990-08 → 1991-06 ended
SV25 DX —
55680-14030-B0 note Register Assy, Instrument Panel, Lower NO.1
1990-08 → 1991-06 ended
SV21,VZV21 SED DX —
55680-14030-D0 note Register Assy, Instrument Panel, Lower NO.1
1988-08 → 1990-08 ended
SV2#,VZV21 USA —
55680-14030-D0 note Register Assy, Instrument Panel, Lower NO.1
1990-08 → 1991-06 ended
SV2#,VZV21 (LE,STD) USA —
55680-14030-E0 note Register Assy, Instrument Panel, Lower NO.1
1988-08 → 1990-08 ended
SV2#,VZV21 —
55680-14030-E0 note Register Assy, Instrument Panel, Lower NO.1
1990-08 → 1991-06 ended
SV2#,VZV21 LE,STD —
55680-14030-J0 note Register Assy, Instrument Panel, Lower NO.1
1990-08 → 1991-06 ended
SV2#,VZV21 LE,STD —
55680-14030-J0 note Register Assy, Instrument Panel, Lower NO.1
1988-08 → 1990-08 ended
SV2#,VZV21 —
55961 — Nozzle, Side Defroster, NO.1
55961-32060-02 note Nozzle, Side Defroster, NO.1
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
55961-32060-03 note Nozzle, Side Defroster, NO.1
1988-08 → 1991-06 ended
SV2#,VZV21 —
55961-32060-04 note Nozzle, Side Defroster, NO.1
1988-08 → 1991-06 ended
SV2#,VZV21 —
55961-32060-06 note Nozzle, Side Defroster, NO.1
1988-08 → 1991-06 ended
SV2#,VZV21 —
55962 — Nozzle, Side Defroster, NO.2
55962-32040-02 note Nozzle, Side Defroster, NO.2
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
55962-32040-03 note Nozzle, Side Defroster, NO.2
1988-08 → 1991-06 ended
SV2#,VZV21 —
55962-32040-04 note Nozzle, Side Defroster, NO.2
1988-08 → 1991-06 ended
SV2#,VZV21 —
55962-32040-06 note Nozzle, Side Defroster, NO.2
1988-08 → 1991-06 ended
SV2#,VZV21 —
55981 — Garnish, Defroster Nozzle, NO.1
55981-32040-02 note Garnish, Defroster Nozzle, NO.1
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
55981-32040-03 note Garnish, Defroster Nozzle, NO.1
1988-08 → 1990-08 ended
SV25;SV21 CND;VZV21 LE;SV21 (LE,STD) +4 —
55981-32040-03 note Garnish, Defroster Nozzle, NO.1
1990-08 → 1991-06 ended
SV2#,VZV21 —
55981-32040-04 note Garnish, Defroster Nozzle, NO.1
1988-08 → 1990-08 ended
SV25;SV21 CND;VZV21 LE;SV21 (LE,STD) +4 —
55981-32040-04 note Garnish, Defroster Nozzle, NO.1
1990-08 → 1991-06 ended
SV2#,VZV21 —
55981-32040-06 note Garnish, Defroster Nozzle, NO.1
1990-08 → 1991-06 ended
SV2#,VZV21 CND —
55981-32040-06 note Garnish, Defroster Nozzle, NO.1
1990-08 → 1991-06 ended
SV2#,VZV21 USA —
55981-32040-06 note Garnish, Defroster Nozzle, NO.1
1989-08 → 1990-08 ended
SV2#,VZV21 (LE,STD) USA —
55981-32040-06 note Garnish, Defroster Nozzle, NO.1
1988-08 → 1990-08 ended
SV2#,VZV21 (DX,LE) CND —
55981-32040-06 note Garnish, Defroster Nozzle, NO.1
1988-08 → 1989-08 ended
SV2#,VZV21 LE USA —
55982 — Garnish, Defroster Nozzle, NO.2
55982-32040-02 note Garnish, Defroster Nozzle, NO.2
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
55982-32040-03 note Garnish, Defroster Nozzle, NO.2
1988-08 → 1990-08 ended
SV25;SV21 CND;VZV21 LE;SV21 (LE,STD) +4 —
55982-32040-03 note Garnish, Defroster Nozzle, NO.2
1990-08 → 1991-06 ended
SV2#,VZV21 —
55982-32040-04 note Garnish, Defroster Nozzle, NO.2
1988-08 → 1990-08 ended
SV25;SV21 CND;VZV21 LE;SV21 (LE,STD) +4 —
55982-32040-04 note Garnish, Defroster Nozzle, NO.2
1990-08 → 1991-06 ended
SV2#,VZV21 —
55982-32040-06 note Garnish, Defroster Nozzle, NO.2
1988-08 → 1989-08 ended
VZV21 LE;SV2# LE USA;SV2# +2 —
55982-32040-06 note Garnish, Defroster Nozzle, NO.2
1989-08 → 1990-08 ended
VZV21 LE;SV2# CND;SV2# (LE,STD) +1 —
55982-32040-06 note Garnish, Defroster Nozzle, NO.2
1990-08 → 1991-06 ended
SV2#,VZV21 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
